08.296.4

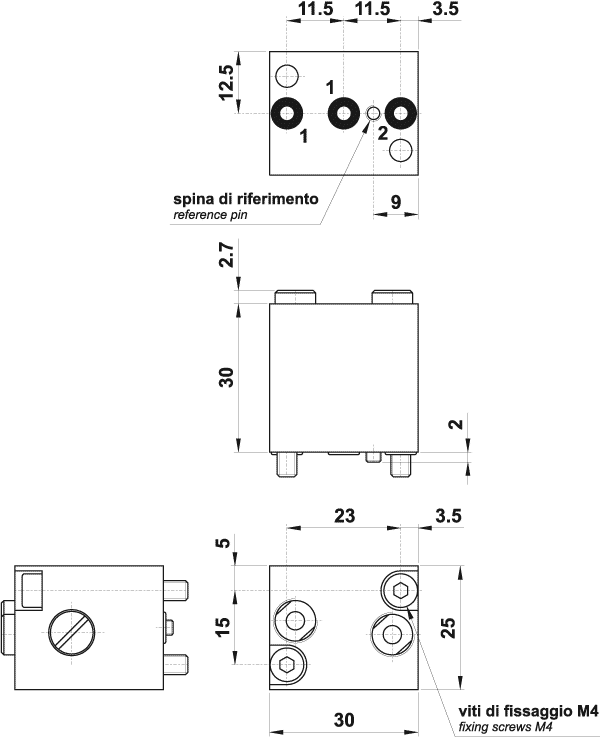

OR element for sub-base CR
1: air supply ports
2: exit port
technical data
- Nominal orifice: 2.5 mm
- Nominal flow rate at 6 bar: 100 Nl/min
- Temperature range: max +60°C
- Working pressure: 2 ... 10 bar
- Fluid: 50µ filtered, lubricated or non lubricated air
For assembling on sub-base
Materials
- Body: aluminium 11S
- Seals: NBR
- Springs: stainless steel
- Internal parts: brass OT58
