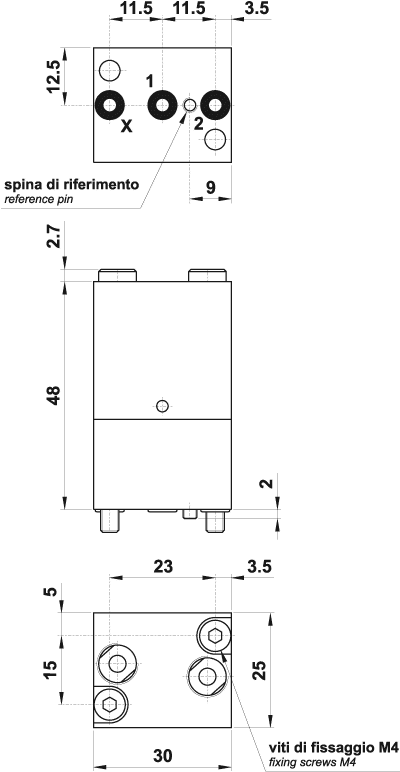

1: air supply port
2: exit port
X: signal port

technical data

• Nominal orifice: 2.5 mm
• Nominal flow rate at 6 bar: 100 Nl/min
• Actuating pressure a 6 bar: 1.5 bar
• Temperature range: max +60°C
• Working pressure: 2 ... 10 bar
• Fluid: 50µ filtered, lubricated or non lubricated air

• Body: aluminium 11S
• Seals: NBR
• Springs: stainless steel
• Internal parts: brass OT58
