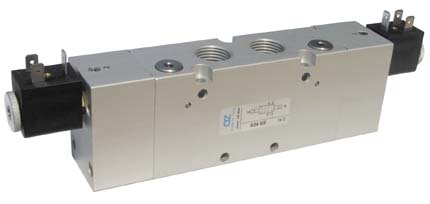

Solenoid actuated 5 way bistable valves, G1/2"

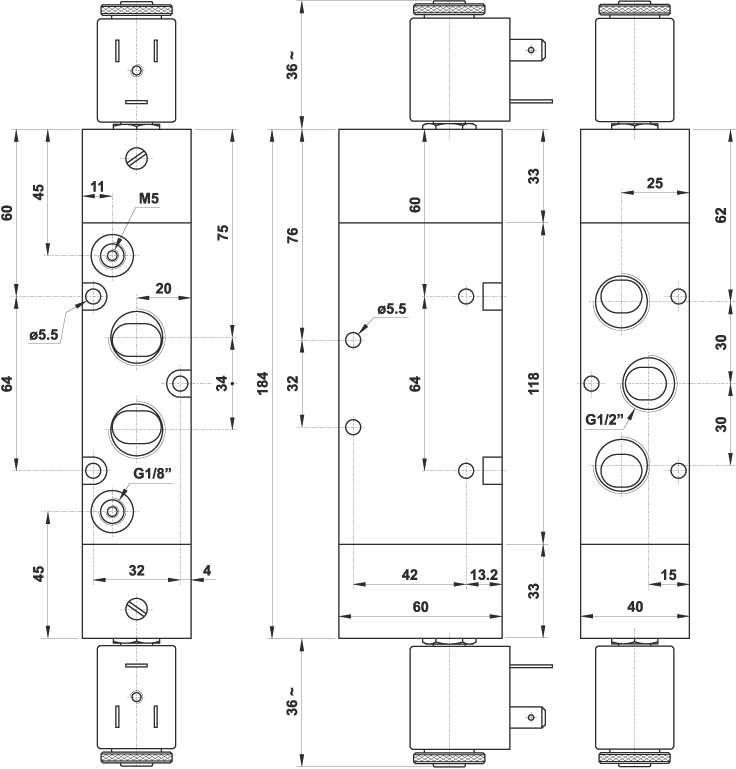

524 EE
5/2 1/2" double solenoid pilot
524 EED
5/2 1/2" double solenoid pilot, with differential
524 EE AS
5/2 1/2" double solenoid pilot with separate air supply
5243C EE
5/3 1/2" closed centres, double solenoid pilot
5243A EE
5/3 1/2" open centres, double solenoid pilot
5243P EE
5/3 1/2" pressurized centres, double solenoid pilot
5243C EE AS
5/3 1/2" closed centres, double solenoid pilot, with separate air supply
5243A EE AS
5/3 1/2" open centres, double solenoid pilot, with separate air supply
5243P EE AS
5/3 1/2" pressurized centres, double solenoid pilot, with separate air supply
technical data
