Coils and connectors

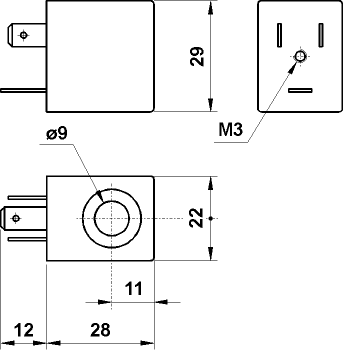

22 mm

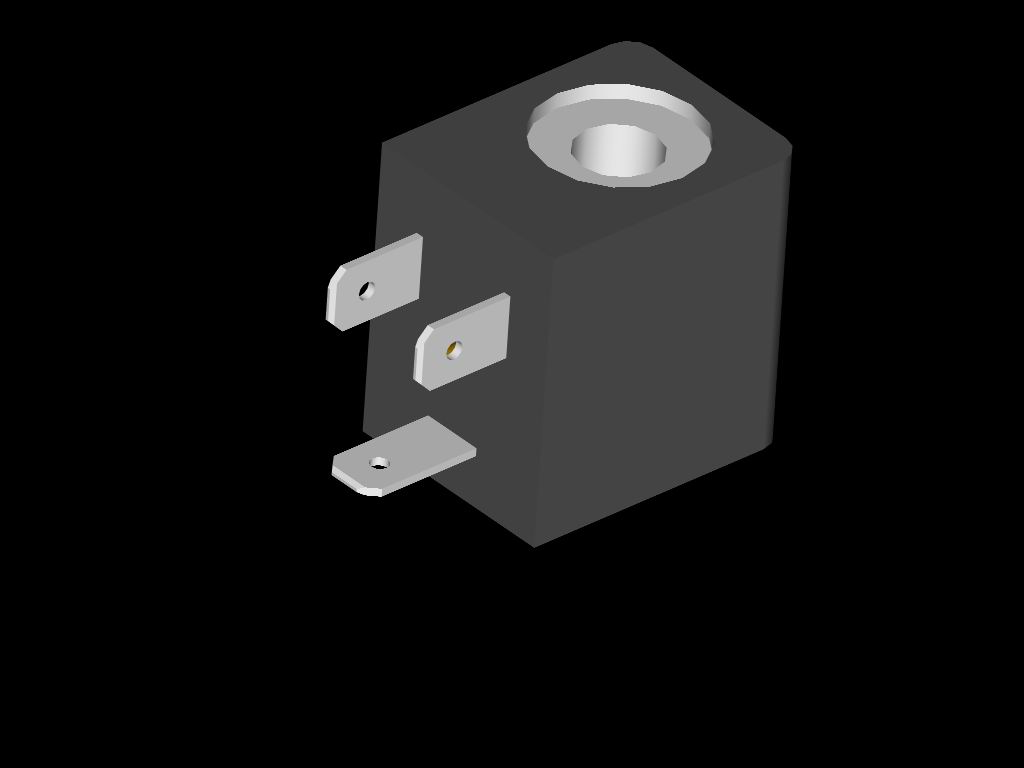

	Code Tension Power rated inrush 00.167.0 12V DC 3W   00.028.0 24V DC 3W   00.029.0 24V 50/60 Hz 5VA 7.5VA 00.030.0 110V 50/60 Hz 5VA 7.5VA 00.031.0 220V 50/60 Hz 5VA 7.5VA
	spare parts (armature)

• Max working temperature: +50°C
• Duty cycle: ED 100%
• Tension tolerance: ±10%
• Protection with connector correctly mounted: IP 65
• Low consumption (1.5W) on request

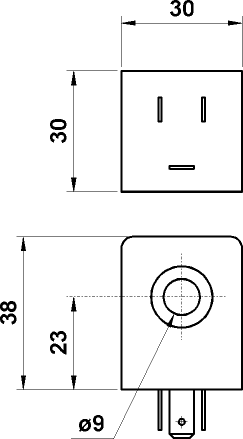

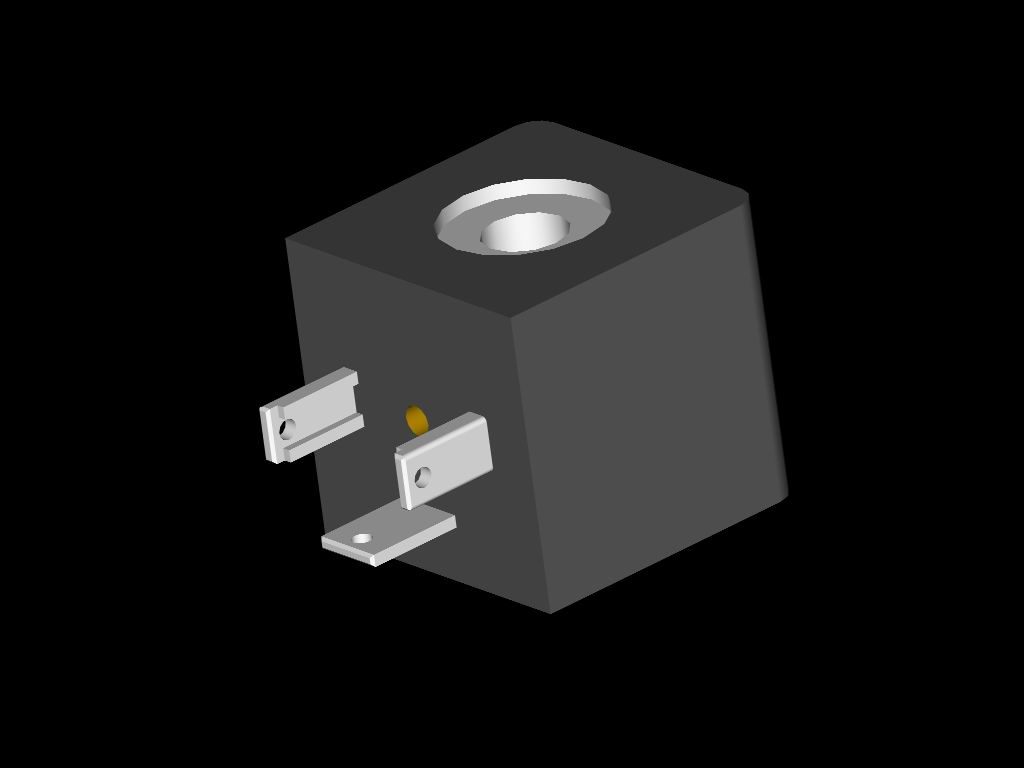

	Code Tension Power rated inrush 00.258.0 24V DC 2W   00.259.0 24V 50/60 Hz 5VA 9VA 00.260.0 110V 50/60 Hz 5VA 9VA 00.261.0 220V 50/60 Hz 5VA 9VA
	spare parts (armature)

• Max working temperature: +50°C
• Duty cycle: ED 100%
• Tension tolerance: ±10%
• Protection with connector correctly mounted: IP 65

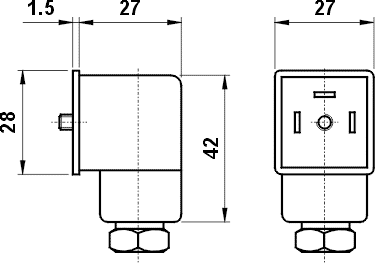

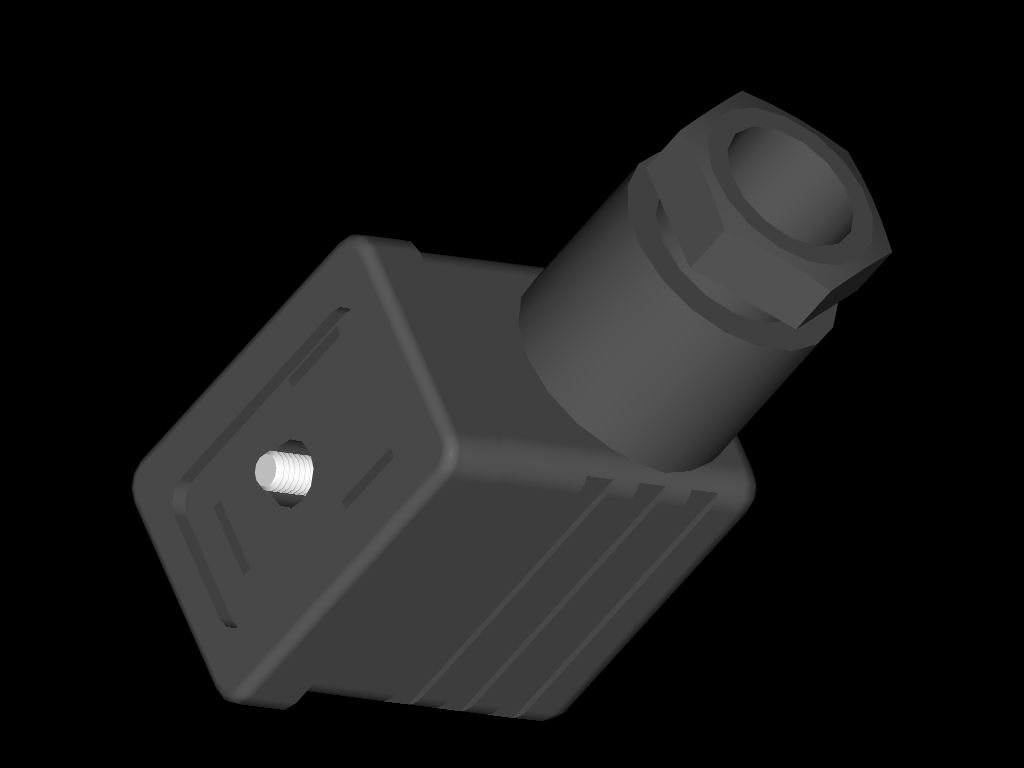

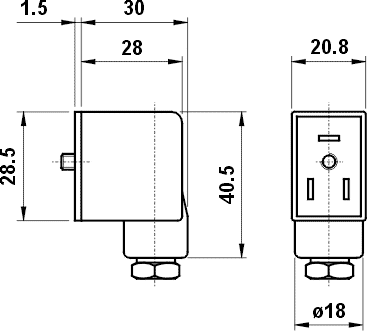

Code	Colour	Cable	Type

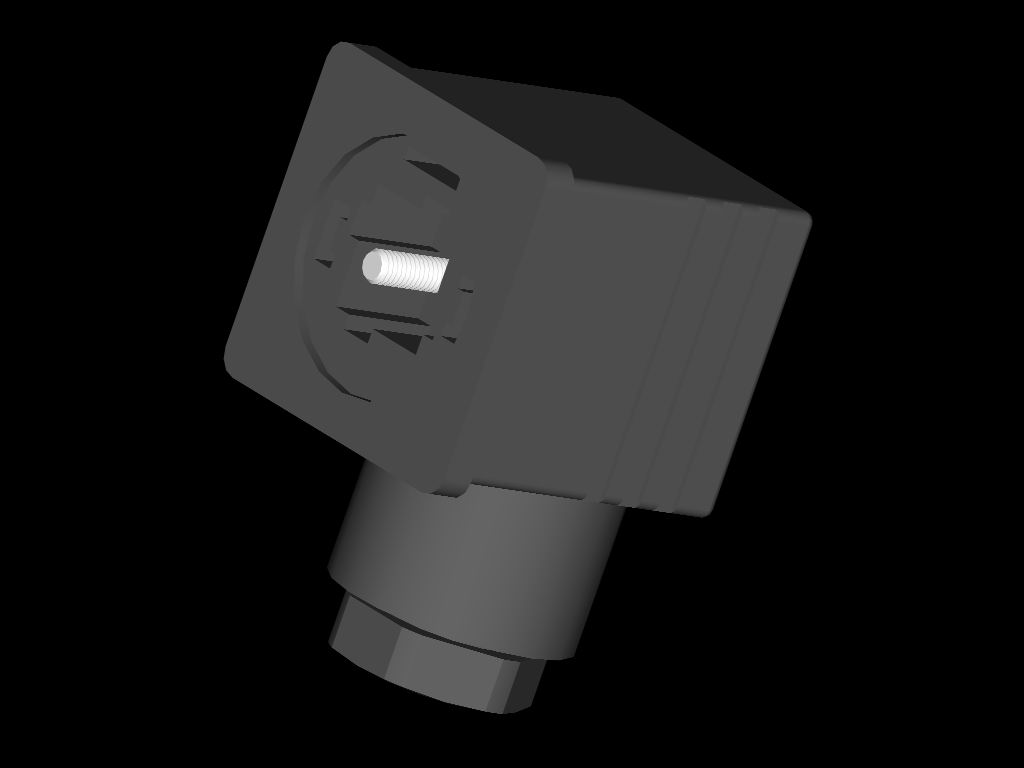

00.251.0	black	PG09	standard
00.348.0	transparent	PG09	with LED 24V
00.349.0	transparent	PG09	with LED 24V and VDR
00.350.0	transparent	PG09	with LED 115V
00.351.0	transparent	PG09	with LED 115V and VDR
00.396.0	transparent	PG09	with LED 230V
00.397.0	transparent	PG09	with LED 230V and VDR



AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP
