| Nominal orifice | 13 mm |

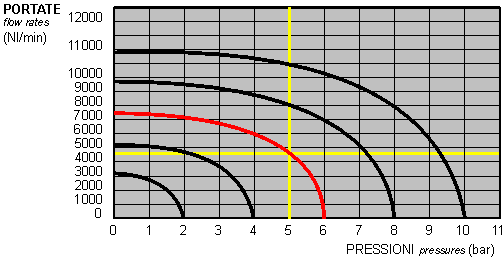

| Nominal flow rate at 6 bar | 4600 Nl/min |
| Temperature range | max +60°C |
| Working pressure (monostable valve with internal air supply) | 2.5 ... 10 bar |
| Working pressure (valve with separate air supply) | -0.9 ... 10 bar |
| Actuating pressure for separate air supply (monostable valve) | 2.5 ... 10 bar |
| Response times (monostable valve) | TRA (14): 39 msec
TRR (12): 60 msec |
| Fluid | 50µ filtered, lubricated or non lubricated air |
