Forks


pdf

foto forcella

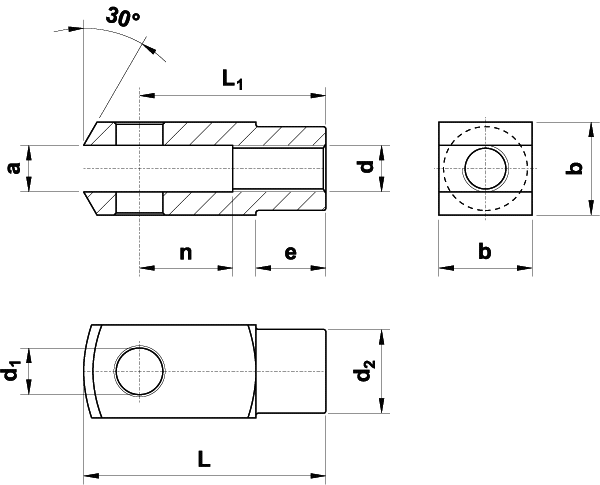

disegno forcella



modello
model 		per alesaggi
for bores 		d a b d1 d2 e L L1 n fornita con
it is supplied with
FR8C10 8-10 M4x0.7 4 8 ø4 ø8 6 21 16 8 clip
FR12C16 12-16 M6x1 6 12 ø6 ø10 9 31 24 12 clip

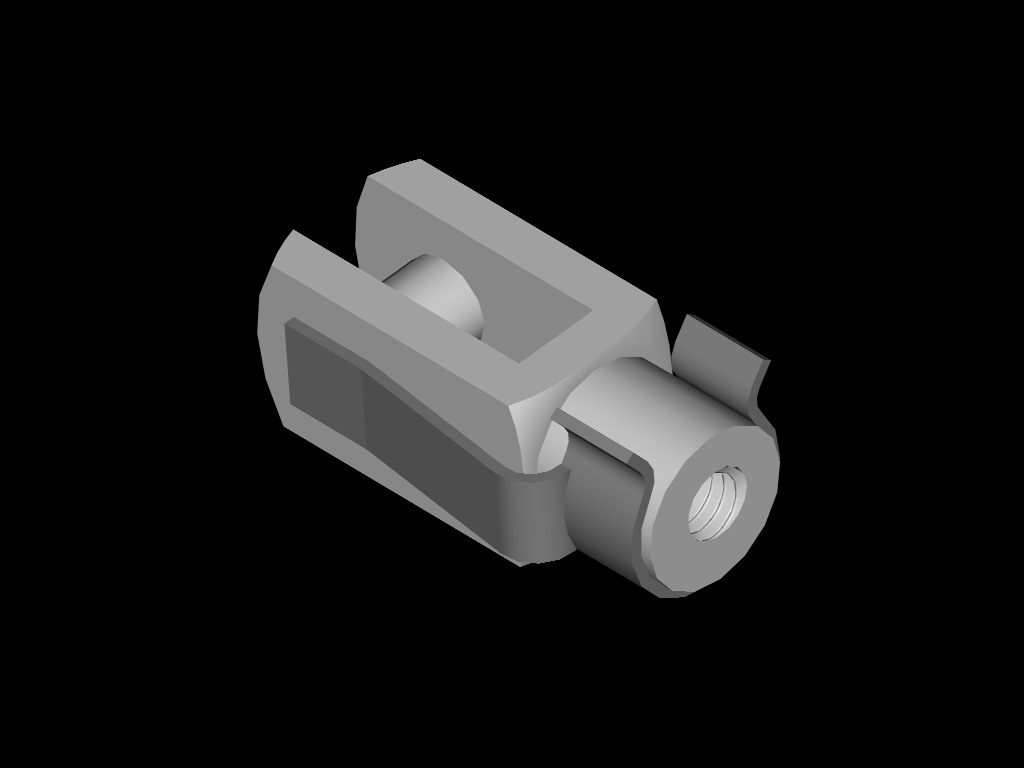

FRC20 20 M8x1.25 8 16 ø8 ø14 12 42 32 16 clip
FR25C32 25-32 M10x1.25 10 20 ø10 ø18 15 52 40 20 clip

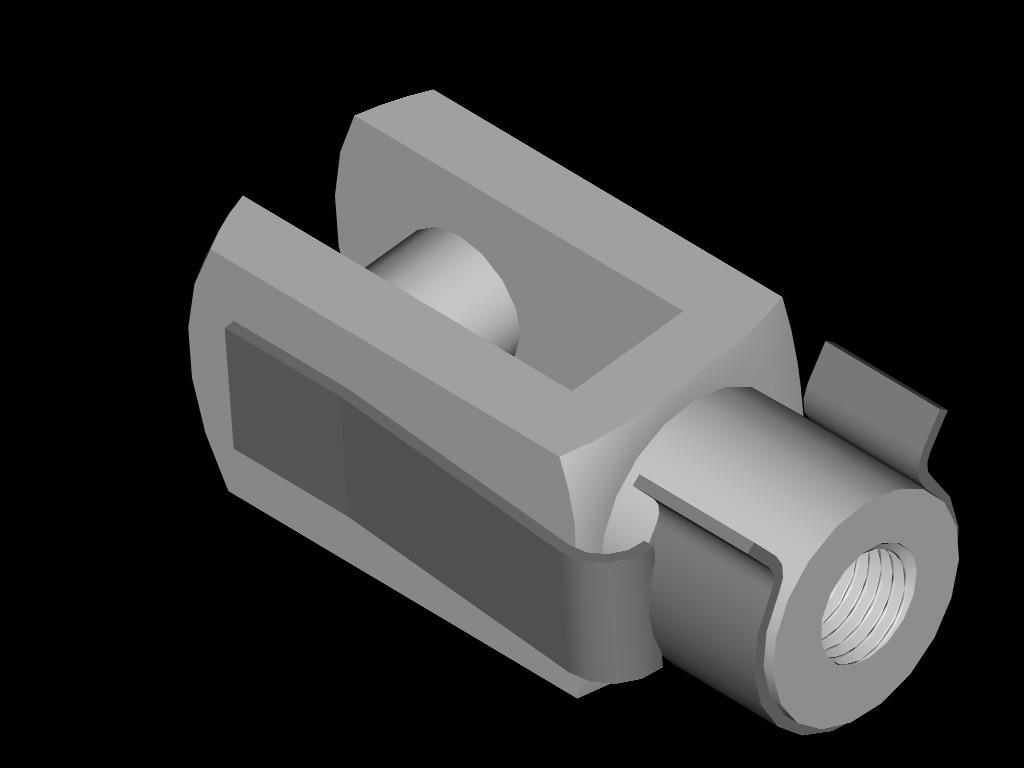

FRC40 40 M12x1.25 12 24 ø12 ø20 18 62 48 24 clip
FR50C63 50-63 M16x1.5 16 32 ø16 ø26 24 83 64 32 clip
FR80C100 80-100 M20x1.5 20 40 ø20 ø34 30 105 80 40 clip
FRC125 125 M27x2 30 55 ø30 ø48 38 148 110 54 perno [pin]

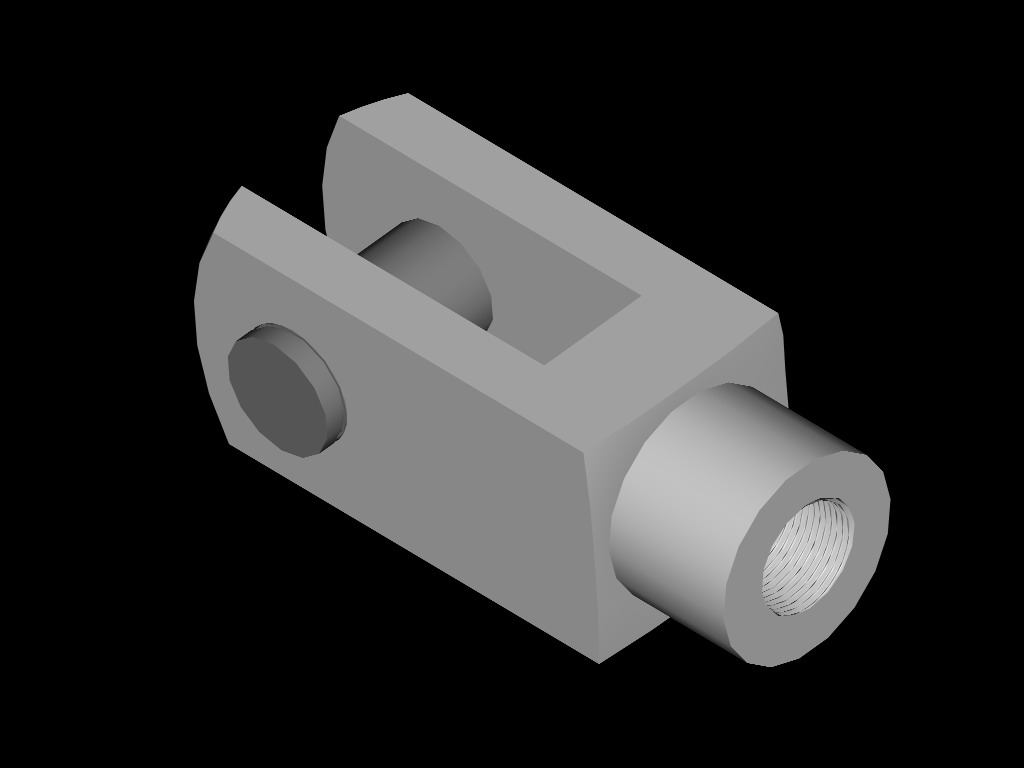

FR160C200 160-200 M36x2 35 70 ø35 ø60 40 188 144 72 perno [pin]



model

AUTOCAD ver 14. DWG

 JPG

ACIS - SAT

 STEP

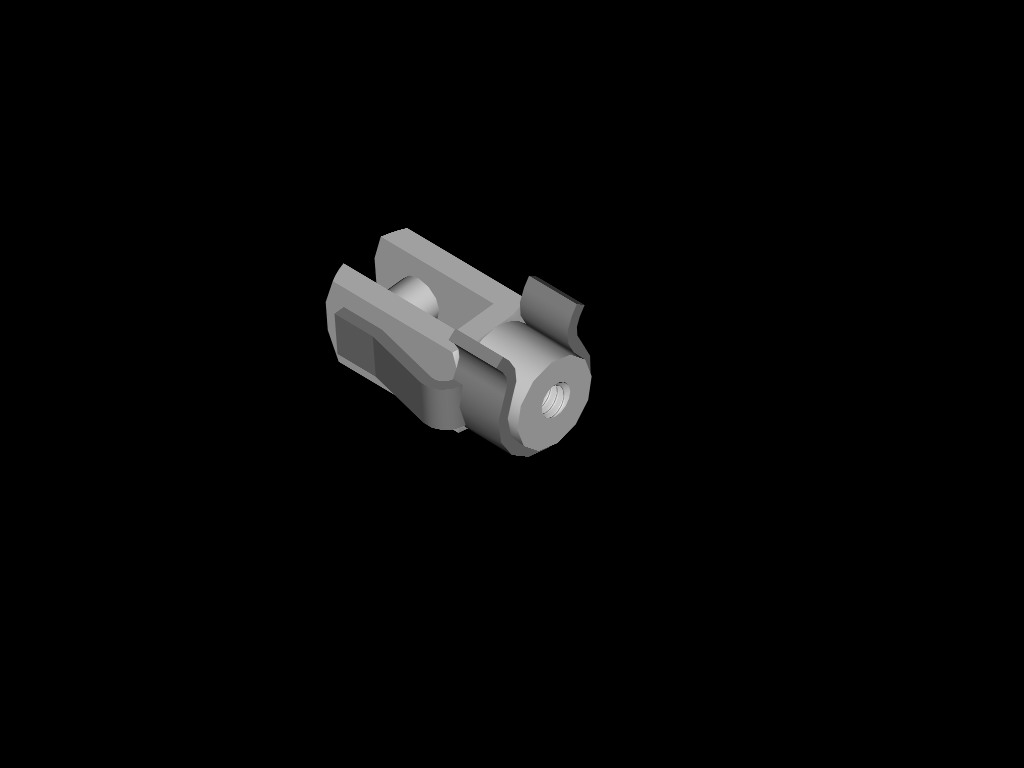

FR8C10

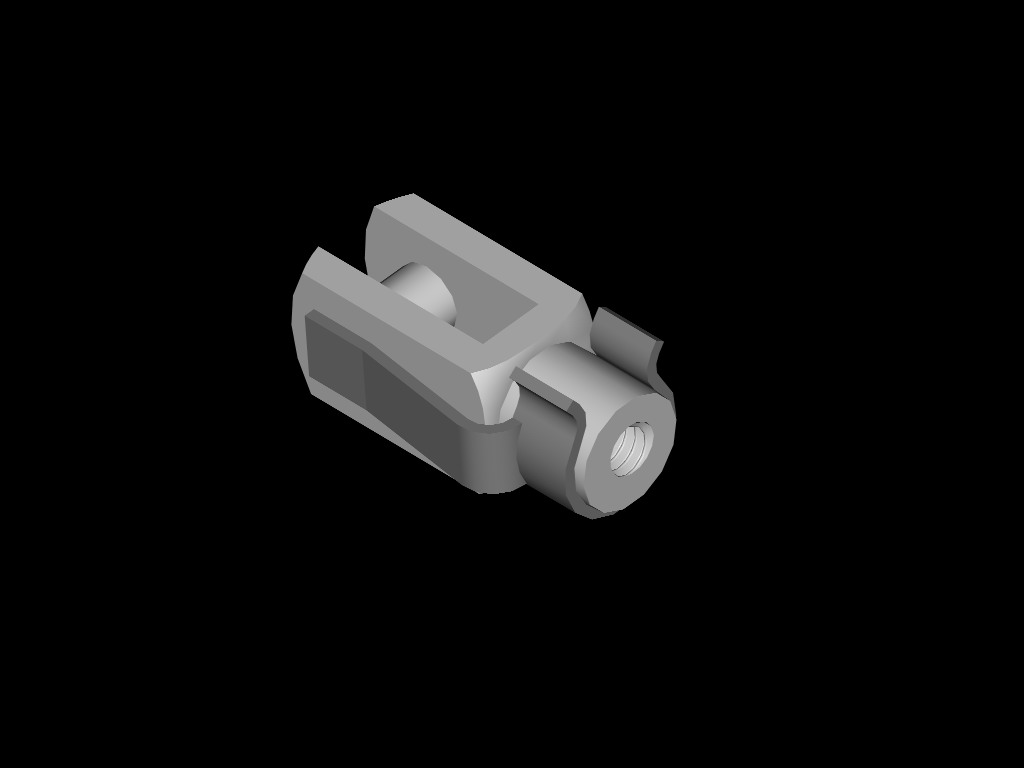

FR12C16

FRC20

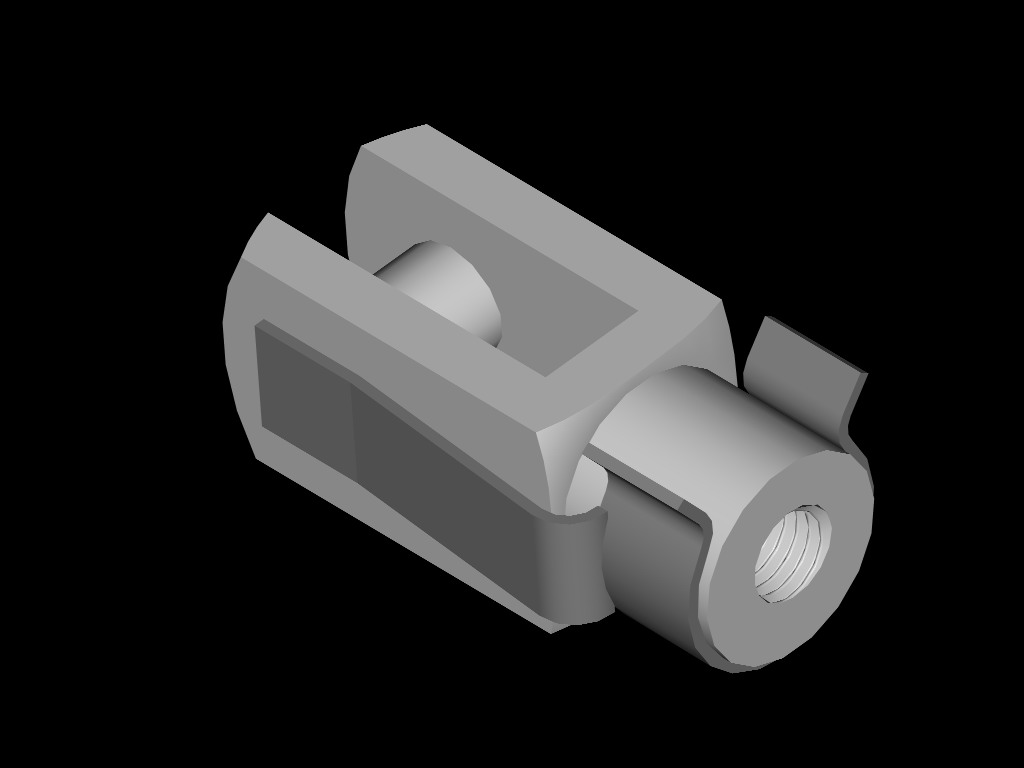

FR25C32

FRC40

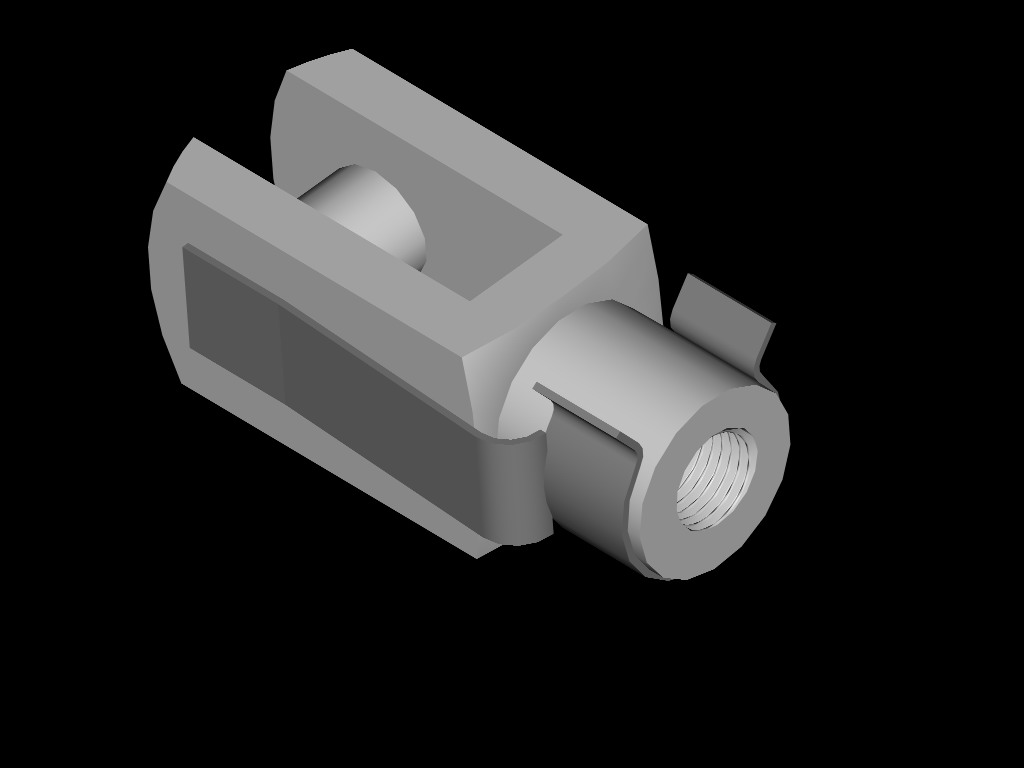

FR50C63

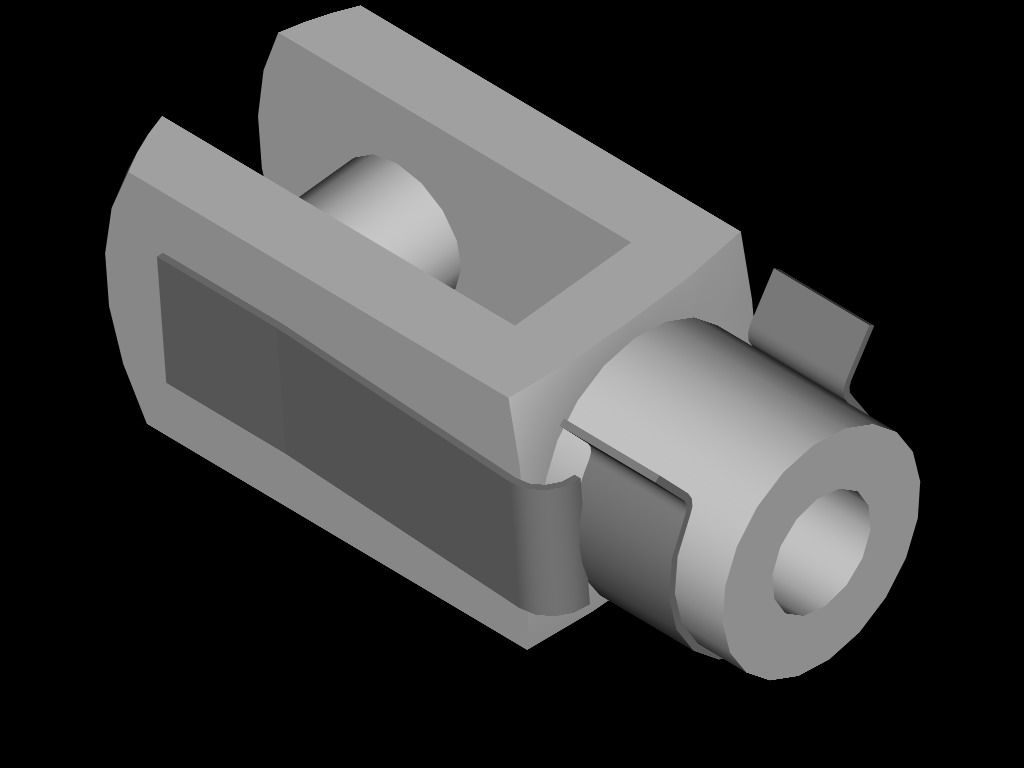

FR80C100

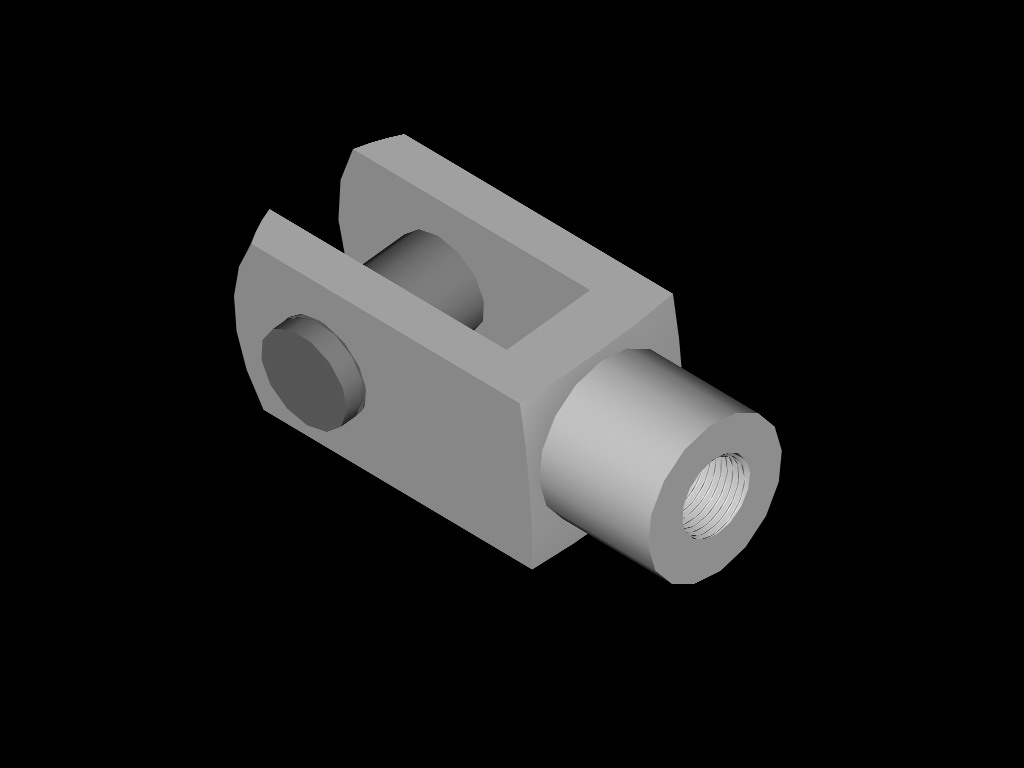

FRC125

FR160C200

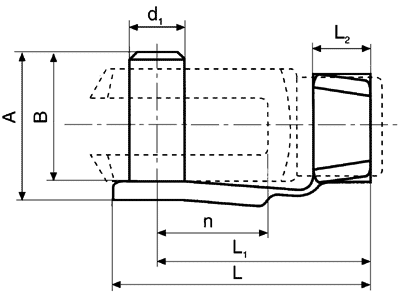

Clips for forks


disegno clips



codice
code 		usata per forcella
it is used for fork 		d1 n A B L L1 L2
26.119.0 M4x0.7 4 8 11 9 19 15 5
26.120.0 M6x1 6 12 16 14 28 23 6
26.121.0 M8x1.25 8 16 22 19 37 31 8
26.122.0 M10x1.25 10 20 26 23 46 39 10
26.123.0 M12x1.25 12 24 32 28 55 47 12
26.124.0 M16x1.5 16 32 40 36 72 62 14
26.125.0 M20x1.5 20 40 48 44 88 72 16

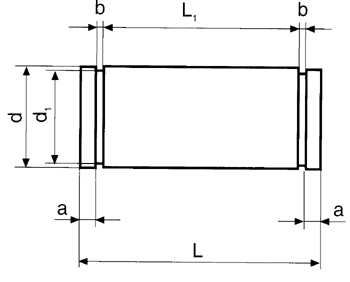

Pins for forks


disegno perno



usato per forcella
it is used for fork 		d L d1 L1 a b
M27x2 30 65 28.6 55 3.4 1.6
M36x2 35 84 33.4 70 5.4 1.6
