10.021.4
Pressure limitator
Valve operation

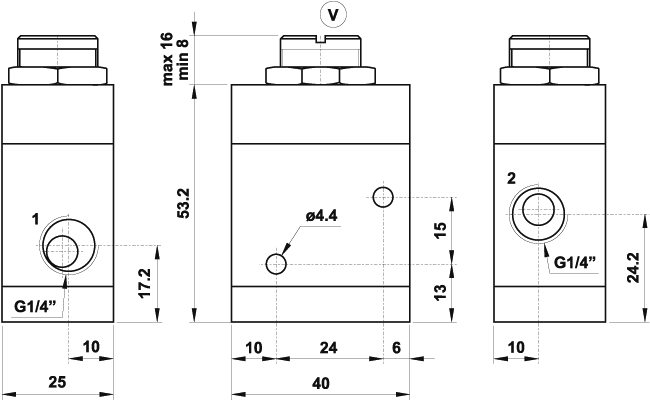

It is a device which, when air is present at port 1, gives at port 2 a pressure which is the same or lower than the main pressure.
The output pressure is regulated by the screw V, which is located on the top of the valve.
The pressure limitator is the same as a pressure regulator, with the difference that the limitator has no relieving and it cannot exhaust the overpressure from downstream.
technical data
- Ports: G1/4"
- Temperature range: max +60°C
- Working pressure: 2 ... 10 bar
- Fluid: 50µ filtered, lubricated or non lubricated air
Materials
- Body: aluminium 11S
- Seals: NBR
- Springs: stainless steel
- Internal parts: brass OT58
