REG 6N-10

---

• Diaphragm-type pressure regulator with relieving
• Self-compensated regulation
• In-line or panel mounting; mounting brackets on request (code STF 6N; STF 6NA; STF 6NB)

Order code	REG 6-10
Ports	G1"
Temperature range	max +50°C
Weight	1.2 kg
Inlet pressure range (p1)	0 ... 17.5 bar 0 ... 1.75 MPa
Outlet pressure range (p2)	0.5 ... 12 bar 0.05 ... 1.2 MPa
Maximum flow rate (p1 = 10 bar; p2 = 6.3 bar; pressure drop = 1 bar)	18200 Nl/min

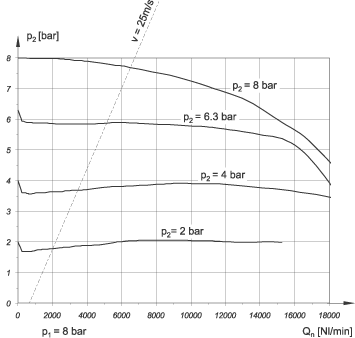

Flow characteristics







Materials

• Body: die-cast aluminium
• Seals: NBR
• Springs: stainless steel and zinc plated steel
• Internal parts: brass and stainless steel
• External parts: reinforced polymer

Mounting bracket and manometer are bought separately.
