Teste a snodo
|
STANDARD sigla part number |
INOX sigla part number |
per alesaggi
for bores |
d3 | d | B | C1 | d2 | d5 | h1 | L3 | L4 | L5 | L7 | W |
| TS8T10 | TS8T10X | 8-10 | M4x0.7 | ø5 | 8 | 6 | 18 | ø11 | 27 | 10 | 36 | 4 | 10 | 9 |
| TS12T16 | TS12T16X | 12-16 | M6x1 | ø6 | 9 | 6.75 | 20 | ø13 | 30 | 12 | 40 | 5 | 11 | 11 |
| TST20 | TST20X | 20 | M8x1.25 | ø8 | 12 | 9 | 24 | ø16 | 36 | 16 | 48 | 5 | 13 | 14 |
| TS25T32 | TS25T32X | 25-32 | M10x1.25 | ø10 | 14 | 10.5 | 28 | ø19 | 43 | 20 | 57 | 6.5 | 15 | 17 |
| TST40 | TST40X | 40 | M12x1.25 | ø12 | 16 | 12 | 32 | ø22 | 50 | 22 | 66 | 6.5 | 17 | 19 |
| TS50T63 | TS50T63X | 50-63 | M16x1.5 | ø16 | 21 | 15 | 42 | ø27 | 64 | 28 | 85 | 8 | 23 | 22 |
| TS80T100 | TS80T100X | 80-100 | M20x1.5 | ø20 | 25 | 18 | 50 | ø34 | 77 | 33 | 102 | 10 | 27 | 30 |
| TST125 | TST125X | 125 | M27x2 | ø30 | 37 | 25 | 70 | ø50 | 110 | 51 | 145 | 15 | 36 | 41 |
| TS160T200 | TS160T200X | 160-200 | M36x2 | ø35 | 43 | 28 | 80 | ø58 | 125 | 56 | 165 | 17 | 41 | 50 |
| model |
AUTOCAD ver 14. DWG |
JPG |
ACIS - SAT |
STEP |
|

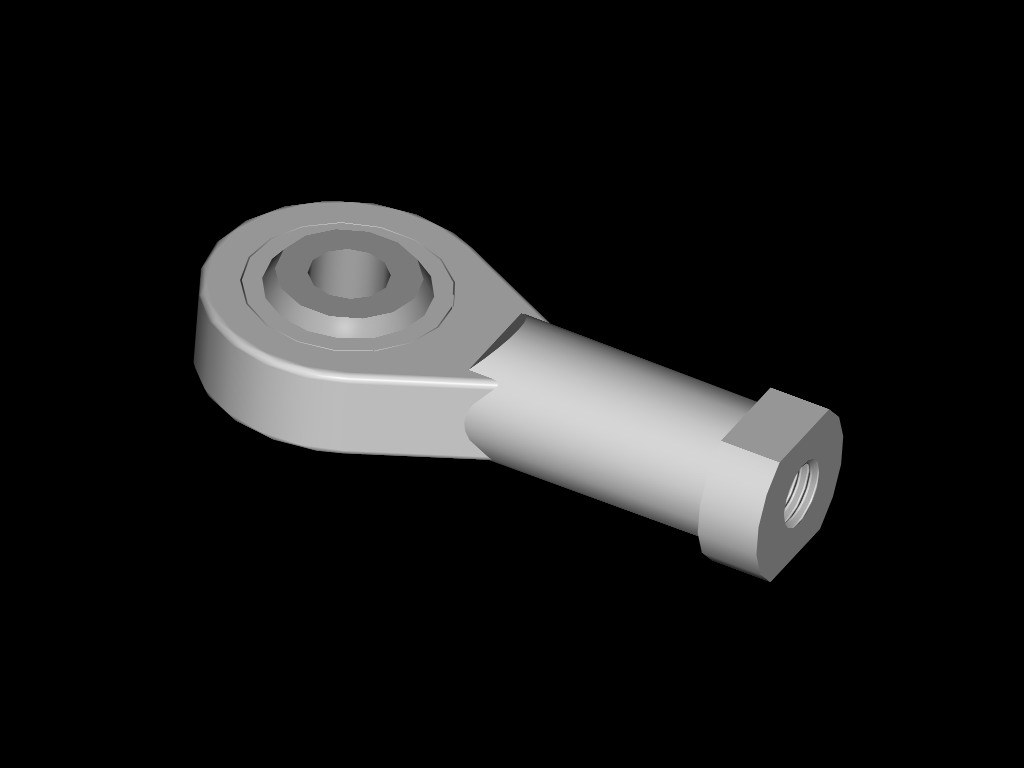

TS8T10 |
|
 |
|
 |

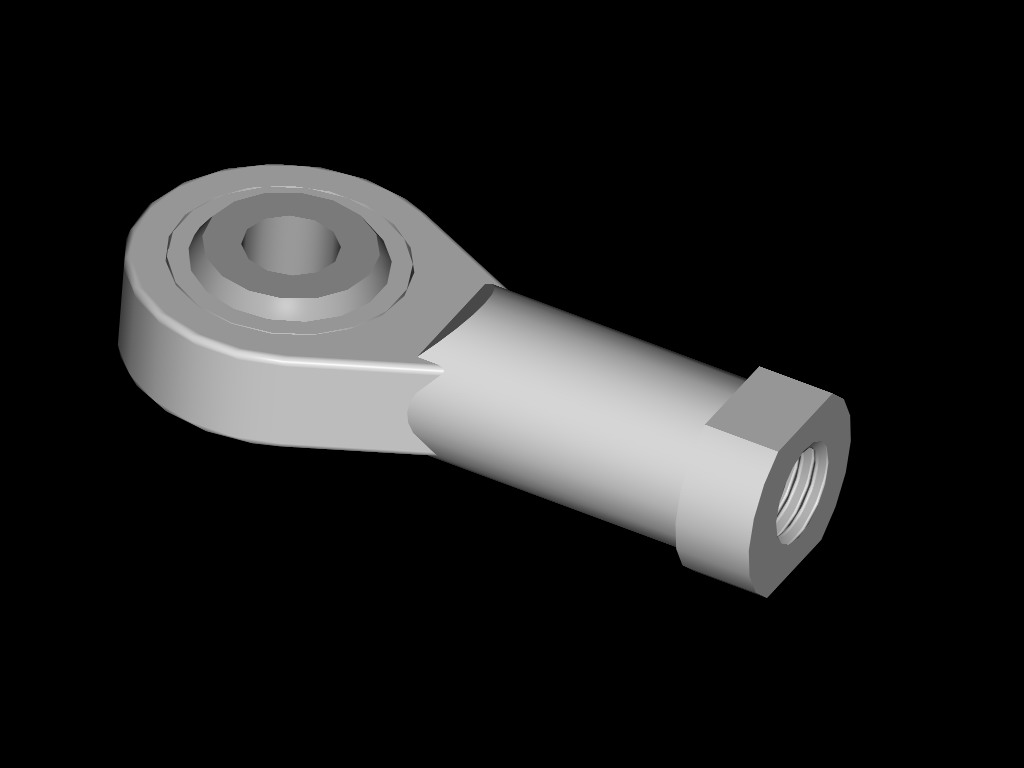

| TS12T16 |
|
 |
|
|

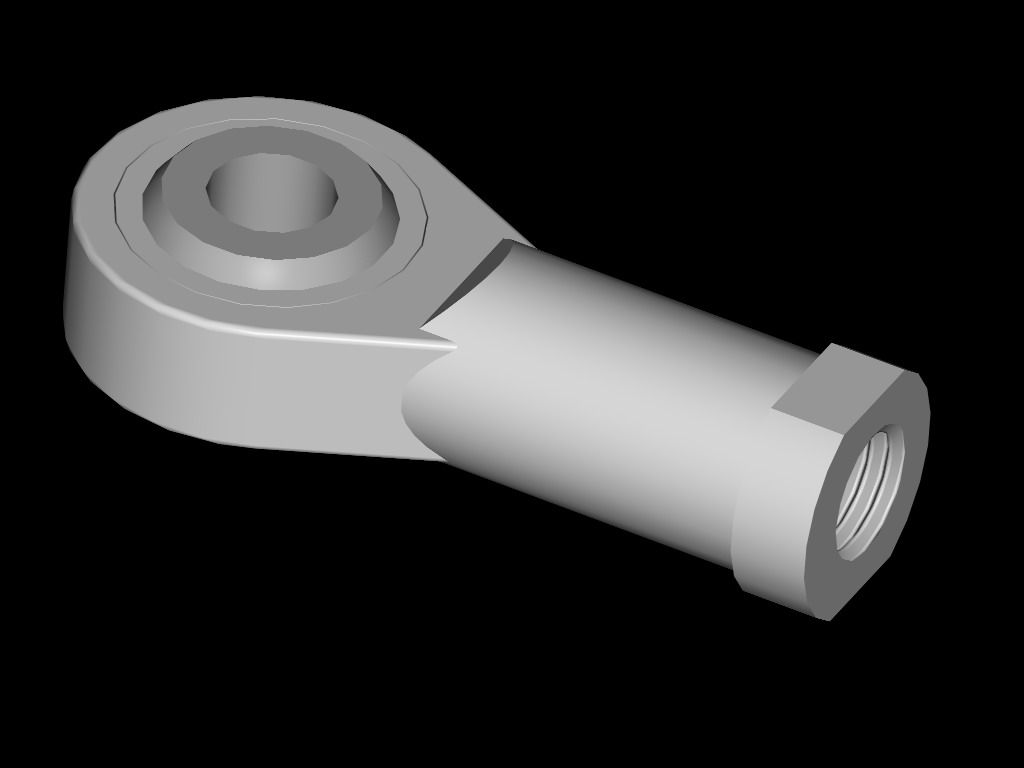

| TST20 |
|
 |
|
|

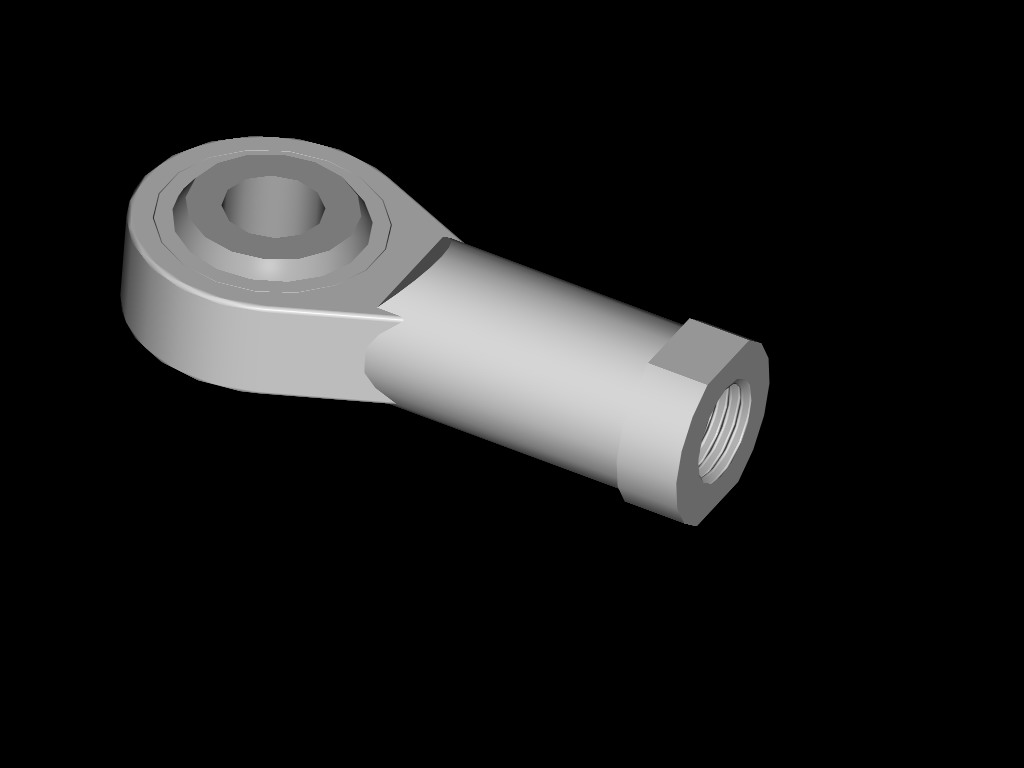

| TS25T32 |
|
 |
|
|

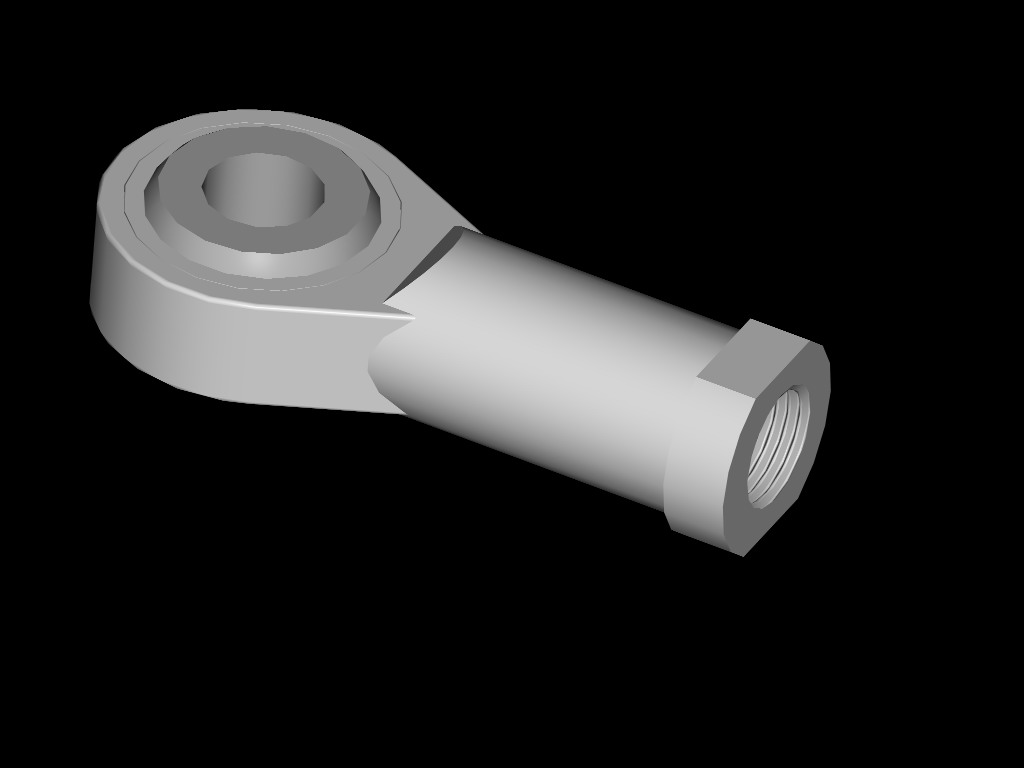

| TST40 |
|
 |
|
|

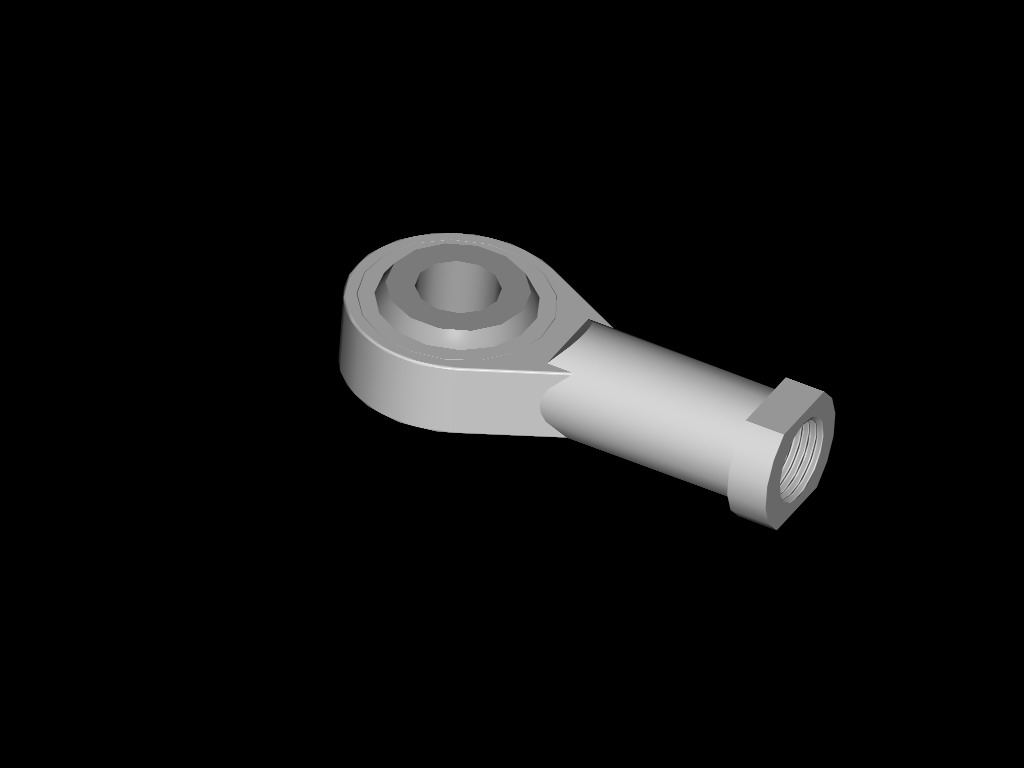

| TS50T63 |
|
 |
|
|

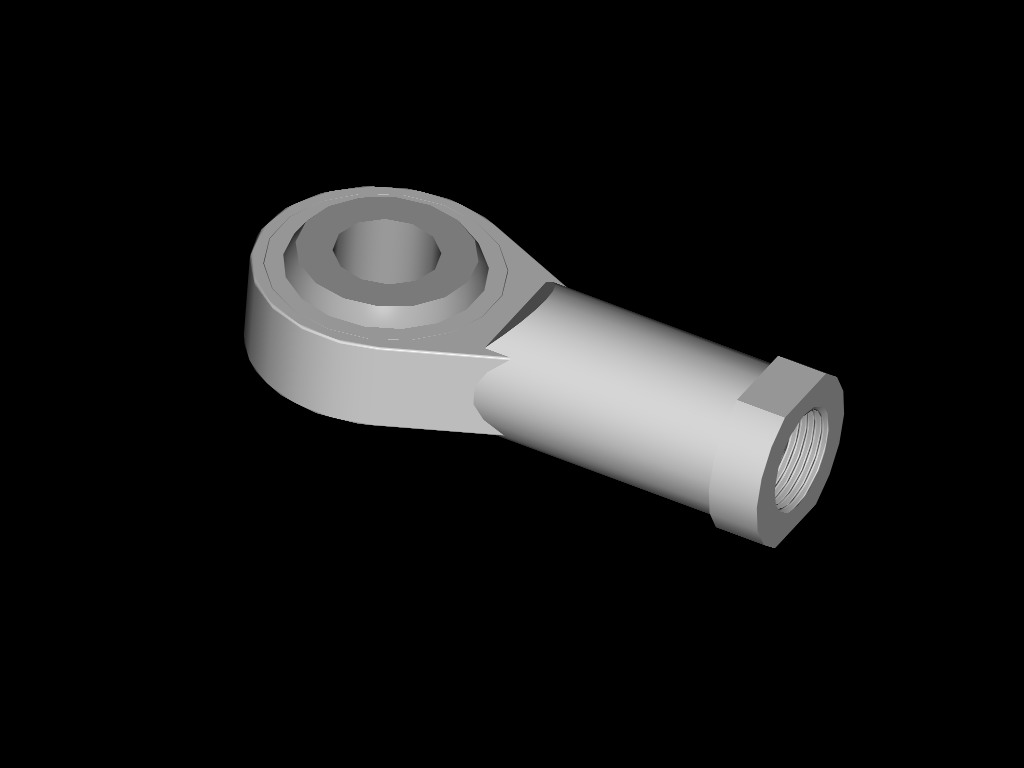

| TS80T100 |
|
 |
|
|

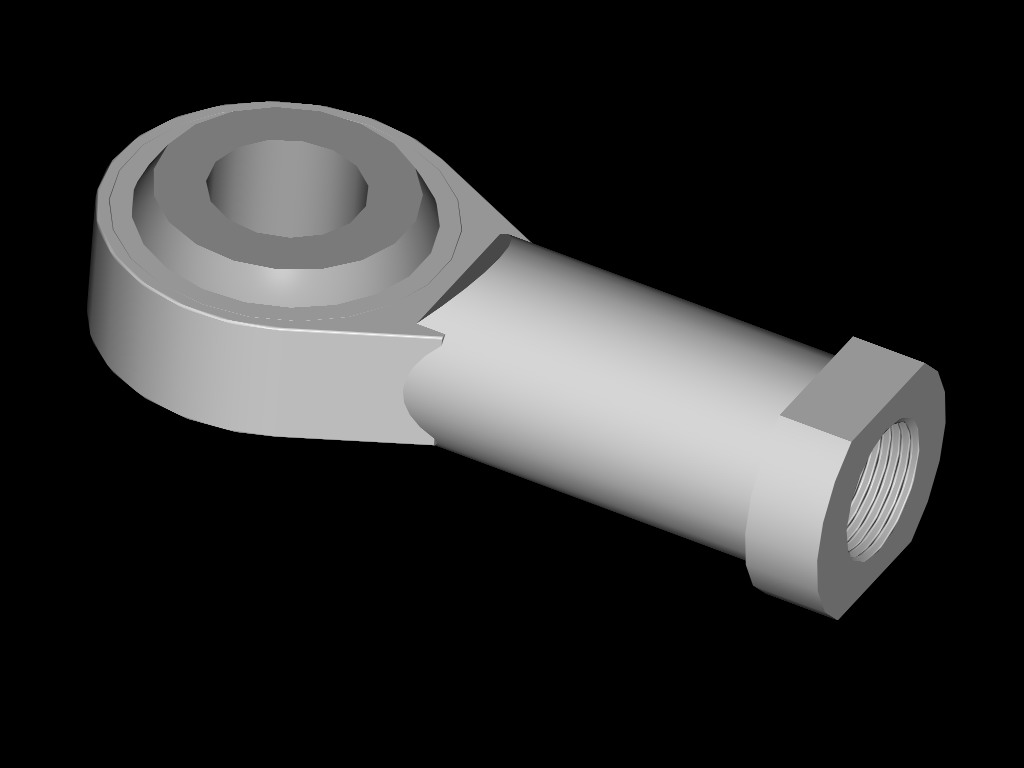

| TST125 |
|
 |
|
|

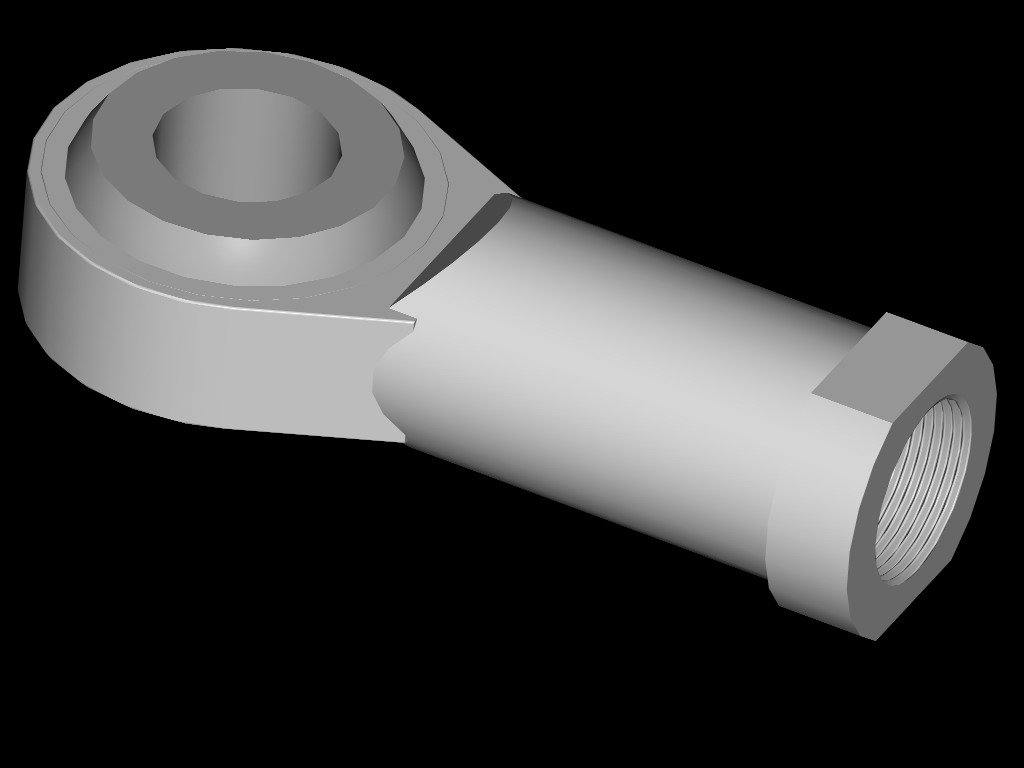

| TS160T200 |
|
 |
|
|
