| A1 | A2 | B | C | D | ch |
confez. package упак. |
codice code код |
| R1/8" | G1/8" | 8 | 18.5 | 39.5 | 10 | 50 | 36.387.0 |
| R1/4" | G1/4" | 11 | 23.5 | 49 | 13 | 50 | 36.388.0 |
| R3/8" | G3/8" | 11.5 | 26 | 54 | 17 | 50 | 36.389.0 |
| R1/2" | G1/2" | 14 | 31 | 64.5 | 21 | 25 | 36.390.0 |

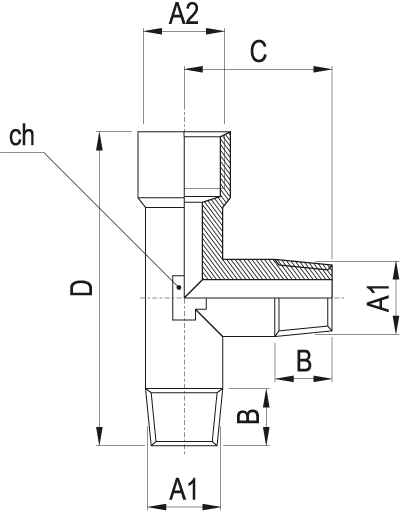

RC430
A1
A2
B
C
D
ch
confez.
package
упак.
codice
code
код
R1/8"
G1/8"
8
18.5
39.5
10
50
36.387.0
R1/4"
G1/4"
11
23.5
49
13
50
36.388.0
R3/8"
G3/8"
11.5
26
54
17
50
36.389.0
R1/2"
G1/2"
14
31
64.5
21
25
36.390.0
