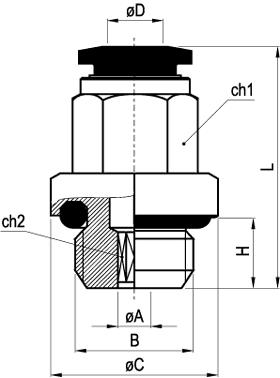

tubo (ЖD) tube трубка	B	ЖA	ЖC	H	L	ch1	ch2	confez. package упак.	codice code код
4	M5	2.6	9	4	20.5	-	2.5	50	36.001.0
4	G1/8"	2.6	13.5	6	20	9	2.5	50	36.002.0
4	G1/4"	2.6	17	8	21	9	2.5	50	36.003.0
5	M5	2.6	9.5	4	22	-	2.5	50	36.004.0
5	G1/8"	4.2	13.5	6	22	10	4	50	36.005.0
5	G1/4"	4.2	17	8	22	10	4	50	36.006.0
6	M5	2.6	10.5	4	22.5	-	2.5	50	36.007.0
6	M12x1.25	4.2	16	8	24	11	4	50	36.1375.0
6	M12x1.5	4.2	16	8	24	11	4	50	36.1376.0
6	G1/8"	4.2	13.5	6	24	11	4	50	36.008.0
6	G1/4"	4.2	17	8	24	11	4	50	36.009.0
8	G1/8"	5.2	13	6	26.5	13	5	50	36.010.0
8	G1/4"	6.2	17	8	25	13	6	50	36.011.0
8	G3/8"	6.2	20	9	25	13	6	50	36.012.0
10	G1/4"	7.3	16	8	29.5	16	7	50	36.013.0
10	G3/8"	8.3	21	9	29.5	16	8	50	36.014.0
12	G1/4"	7.3	16	8	31.5	18	7	50	36.015.0
12	G3/8"	10.3	21	9	31	18	10	25	36.016.0
12	G1/2"	10.3	24	11	31	18	10	25	36.017.0
14	G3/8"	10.3	21	9	34	21	10	25	36.018.0
14	G1/2"	12.3	25	11	34	21	12	25	36.019.0

Dati tecnici - Technical data - Технические данные
