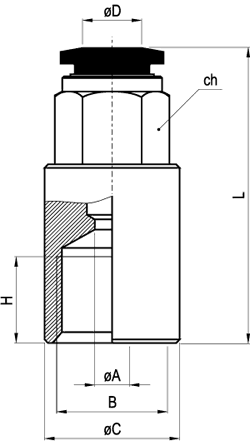

RP030
|
|
|
|
tubo (ЖD) tube трубка |
B | ЖA | ЖC | H | L | ch |
confez. package упак. |
codice code код |
| 4 | G1/8" | 3 | 12 | 6.5 | 26.5 | 9 | 50 | 36.020.0 |
| 4 | G1/4" | 3 | 17 | 10 | 29.5 | 9 | 50 | 36.021.0 |
| 5 | G1/8" | 4 | 12 | 6.5 | 27 | 10 | 50 | 36.022.0 |
| 5 | G1/4" | 4 | 16 | 10 | 30 | 10 | 50 | 36.023.0 |
| 6 | G1/8" | 5 | 12 | 6.5 | 27 | 11 | 50 | 36.024.0 |
| 6 | G1/4" | 5 | 17 | 10 | 31 | 11 | 50 | 36.025.0 |
| 8 | G1/8" | 7 | 12 | 6.5 | 28 | 13 | 50 | 36.026.0 |
| 8 | G1/4" | 7 | 17 | 10 | 32 | 13 | 50 | 36.027.0 |
