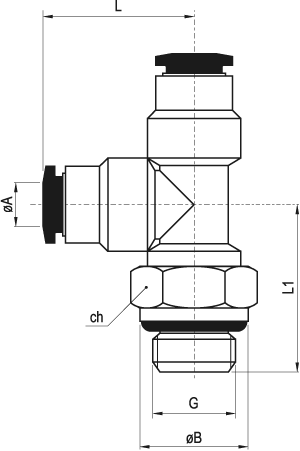

RP225
|
|
|
|
tubo (ЖA) tube трубка |
G | ЖB | L | L1 | ch |
confez. package упак. |
codice code код |
| 4 | M5 | 8 | 17.5 | 16.5 | 9 | 50 | 36.220.0 |
| 4 | G1/8" | 13 | 17.5 | 20 | 13 | 50 | 36.221.0 |
| 4 | G1/4" | 16 | 19 | 24 | 13 | 50 | 36.222.0 |
| 6 | G1/8" | 13 | 19.5 | 20 | 13 | 50 | 36.223.0 |
| 6 | G1/4" | 16 | 21 | 24 | 13 | 50 | 36.224.0 |
| 8 | G1/8" | 13 | 23 | 20 | 13 | 50 | 36.225.0 |
| 8 | G1/4" | 16 | 23 | 24 | 13 | 50 | 36.226.0 |
| 8 | G3/8" | 20 | 25.5 | 25.5 | 13 | 50 | 36.227.0 |
| 10 | G1/4" | 16 | 25.5 | 24 | 16 | 50 | 36.228.0 |
| 10 | G3/8" | 20 | 25.5 | 28 | 16 | 50 | 36.229.0 |
| 12 | G1/4" | 16 | 27 | 30.5 | 16 | 50 | 36.230.0 |
| 12 | G3/8" | 20 | 27 | 28.5 | 20 | 25 | 36.231.0 |
