RP500
|
|
|
|
tubo (ЖC) tube трубка |
vite screw болт |

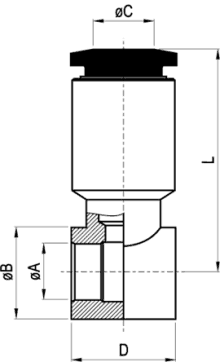

ЖA | ЖB | D | L |
confez. package упак. |
codice code код |
| 4 | M5 | 5 | 7 | 9 | 19 | 50 | 36.109.0 |
| 4 | G1/8" | 9.9 | 14 | 15 | 21 | 50 | 36.110.0 |
| 5 | M5 | 5 | 7 | 9 | 19 | 50 | 36.111.0 |
| 5 | G1/8" | 9.9 | 14 | 15 | 22.5 | 50 | 36.112.0 |
| 6 | G1/8" | 9.9 | 14 | 15 | 23 | 50 | 36.113.0 |
| 6 | G1/4" | 13.3 | 18 | 17 | 24 | 50 | 36.114.0 |
| 8 | G1/8" | 9.9 | 14 | 15 | 24.5 | 50 | 36.115.0 |
| 8 | G1/4" | 13.3 | 18 | 17 | 26 | 50 | 36.116.0 |
| 8 | G3/8" | 16.6 | 21 | 20 | 28 | 50 | 36.117.0 |
| 10 | G1/4" | 13.3 | 18 | 17 | 27 | 50 | 36.118.0 |
| 10 | G3/8" | 16.6 | 21 | 20 | 29 | 25 | 36.119.0 |
| 12 | G1/4" | 13.3 | 18 | 17 | 28 | 25 | 36.120.0 |
| 12 | G3/8" | 16.6 | 21 | 20 | 30 | 25 | 36.121.0 |
