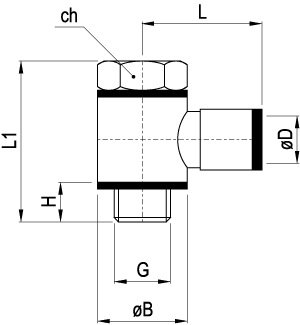

RP501
|
|
|
|
tubo (ЖD) tube трубка |
G | ЖB | H | L1 | L | ch |
confez. package упак. |
codice code код |
| 4 | M5 | 7 | 4.5 | 17.5 | 18.5 | 8 | 50 | 36.166.0 |
| 4 | G1/8" | 14 | 7.5 | 28 | 21 | 14 | 50 | 36.167.0 |
| 5 | M5 | 7 | 4.5 | 17.5 | 19.5 | 8 | 50 | 36.168.0 |
| 5 | G1/8" | 14 | 7.5 | 28 | 22.5 | 14 | 50 | 36.169.0 |
| 6 | G1/8" | 14 | 7.5 | 28 | 22.5 | 14 | 50 | 36.170.0 |
| 6 | G1/4" | 18 | 9 | 33 | 24 | 17 | 50 | 36.171.0 |
| 8 | G1/8" | 14 | 7.5 | 28 | 24.5 | 14 | 25 | 36.172.0 |
| 8 | G1/4" | 18 | 9 | 33 | 26 | 17 | 25 | 36.173.0 |
| 8 | G3/8" | 21 | 10 | 37 | 28 | 22 | 25 | 36.174.0 |
| 10 | G1/4" | 18 | 9 | 33 | 27 | 17 | 25 | 36.175.0 |
| 10 | G3/8" | 21 | 10 | 37 | 29 | 22 | 25 | 36.176.0 |
| 12 | G3/8" | 21 | 10 | 37 | 30 | 22 | 10 | 36.177.0 |
