RP510
|
|
|
|
tubo (ЖD) tube трубка |
vite screw болт |

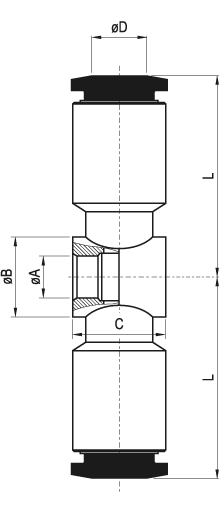

ЖA | ЖB | C | L |
confez. package упак. |
codice code код |
| 4 | M5 | 5 | 7 | 9 | 19 | 50 | 36.123.0 |
| 4 | G1/8" | 9.9 | 14 | 15 | 21 | 50 | 36.124.0 |
| 5 | M5 | 5 | 7 | 9.5 | 19.5 | 50 | 36.125.0 |
| 5 | G1/8" | 9.9 | 14 | 15 | 22.5 | 50 | 36.126.0 |
| 6 | G1/8" | 9.9 | 14 | 15 | 23 | 50 | 36.127.0 |
| 6 | G1/4" | 13.3 | 18 | 17 | 24 | 50 | 36.128.0 |
| 8 | G1/8" | 9.9 | 14 | 15 | 24.5 | 50 | 36.129.0 |
| 8 | G1/4" | 13.3 | 18 | 17 | 26 | 50 | 36.130.0 |
| 8 | G3/8" | 16.6 | 21 | 20 | 28 | 50 | 36.131.0 |
| 10 | G1/4" | 13.3 | 18 | 17 | 27 | 50 | 36.132.0 |
| 10 | G3/8" | 16.6 | 21 | 20 | 29 | 25 | 36.133.0 |
| 12 | G3/8" | 16.6 | 21 | 20 | 30 | 25 | 36.135.0 |
