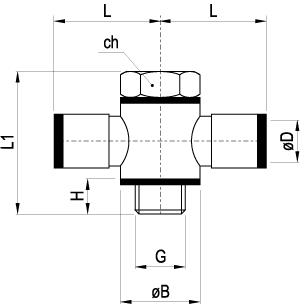

RP511
|
|
|
|
tubo (ЖD) tube трубка |
G | ЖB | H | L1 | L | ch |
confez. package упак. |
codice code код |
| 4 | M5 | 7 | 4.5 | 17.5 | 18.5 | 8 | 50 | 36.178.0 |
| 4 | G1/8" | 14 | 7.5 | 28 | 21 | 14 | 50 | 36.179.0 |
| 5 | M5 | 7 | 4.5 | 17.5 | 19.5 | 8 | 50 | 36.180.0 |
| 5 | G1/8" | 14 | 7.5 | 28 | 22.5 | 14 | 50 | 36.181.0 |
| 6 | G1/8" | 14 | 7.5 | 28 | 22.5 | 14 | 50 | 36.182.0 |
| 6 | G1/4" | 18 | 9 | 33 | 24 | 17 | 50 | 36.183.0 |
| 8 | G1/8" | 14 | 7.5 | 28 | 24.5 | 14 | 25 | 36.184.0 |
| 8 | G1/4" | 18 | 9 | 33 | 26 | 17 | 25 | 36.185.0 |
| 8 | G3/8" | 21 | 10 | 37 | 28 | 22 | 25 | 36.186.0 |
| 10 | G1/4" | 18 | 9 | 33 | 27 | 17 | 25 | 36.187.0 |
| 10 | G3/8" | 21 | 10 | 37 | 29 | 22 | 25 | 36.188.0 |
| 12 | G3/8" | 21 | 10 | 37 | 30 | 22 | 10 | 36.189.0 |
