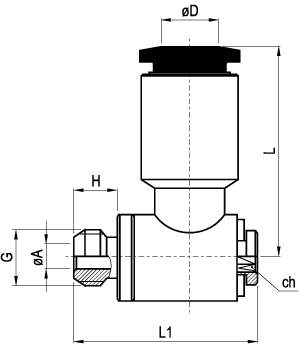

RP550
|
|
|
|
tubo (ЖD) tube трубка |
G | ЖA | H | L1 | L | ch |
confez. package упак. |
codice code код |
| 4 | M5 | 2 | 4 | 17 | 18.5 | 2 | 50 | 36.137.0 |
| 4 | G1/8" | 5.5 | 6 | 25 | 21 | 3 | 50 | 36.138.0 |
| 5 | M5 | 2 | 4 | 17 | 19.5 | 2 | 50 | 36.139.0 |
| 5 | G1/8" | 5.5 | 6 | 25 | 22.5 | 3 | 50 | 36.140.0 |
| 6 | G1/8" | 5.5 | 6 | 25 | 23.5 | 3 | 50 | 36.141.0 |
| 6 | G1/4" | 7.8 | 8 | 29.3 | 24.5 | 4 | 50 | 36.142.0 |
| 8 | G1/8" | 5.5 | 6 | 25 | 24.5 | 3 | 50 | 36.143.0 |
| 8 | G1/4" | 7.8 | 8 | 29.3 | 26 | 4 | 50 | 36.144.0 |
| 8 | G3/8" | 10 | 9 | 34 | 29 | 5 | 25 | 36.145.0 |
| 10 | G1/4" | 7.8 | 8 | 29.3 | 27 | 4 | 25 | 36.146.0 |
| 10 | G3/8" | 10 | 9 | 34 | 29 | 5 | 25 | 36.147.0 |
| 12 | G1/4" | 7.8 | 8 | 29.3 | 28 | 4 | 25 | 36.148.0 |
| 12 | G3/8" | 10 | 9 | 34 | 29 | 5 | 25 | 36.149.0 |
