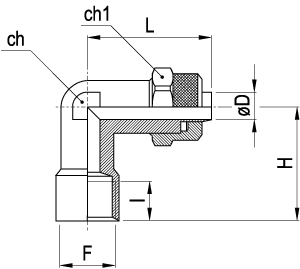

RZ220
|
|
|
|
tubo (ЖD) tube трубка |
F | I | H | L | ch1 | ch |
confez. package упак. |
codice code код |
| 6/4 | G1/8" | 8 | 19 | 22.5 | 12 | 10 | 50 | 36.524.0 |
| 6/4 | G1/4" | 10.5 | 23 | 25 | 12 | 11 | 50 | 36.525.0 |
| 8/6 | G1/8" | 8 | 19 | 22.5 | 14 | 10 | 50 | 36.526.0 |
| 8/6 | G1/4" | 10.5 | 23 | 25 | 14 | 11 | 50 | 36.527.0 |
| 10/8 | G1/4" | 11 | 23.5 | 26 | 16 | 13 | 25 | 36.528.0 |
