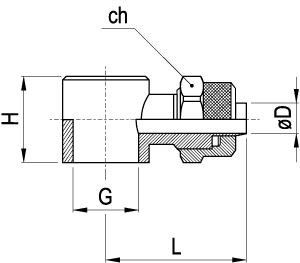

RZ500
|
|
|
|
tubo (ЖD) tube трубка |
vite (G) screw болт |
H | L | ch |
confez. package упак. |
codice code код |
| 4/2.7 | M5 | 9 | 15.8 | 8 | 50 | 36.583.0 |
| 6/4 | M5 | 9 | 18 | 9 | 50 | 36.587.0 |
| 6/4 | G1/8" | 14.5 | 24 | 12 | 50 | 36.588.0 |
| 6/4 | G1/4" | 14.5 | 26 | 12 | 50 | 36.589.0 |
| 8/6 | G1/8" | 14.5 | 24 | 14 | 50 | 36.591.0 |
| 8/6 | G1/4" | 14.5 | 26 | 14 | 50 | 36.592.0 |
| 10/8 | G1/4" | 14.5 | 27.5 | 16 | 25 | 36.594.0 |
