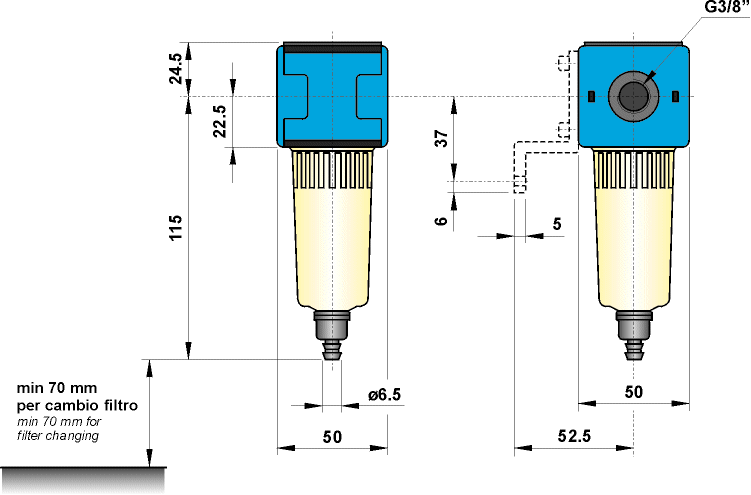

CFIL 3-S
Activated carbon filter elements
Residual oil: 0.003 p.p.m. in combination with sub-micro-filter
Manual moisture exhaust
Vertical installation
Metal bowl protection on request (code
PR 3-00
)
Order code
CFIL 3-S
Ports
G3/8"
Temperature range
max +40°C
Weight
0.3 kg
Working pressure range
0 ... 10 bar
0 ... 1 MPa
Recommended flow rate
(p = 6 bar at 25 m/s)
200 Nl/min
Pressure drop with new filter element
0.1 bar
Pressure drop with saturated filter element
0.3 bar
AUTOCAD ver 14. DWG
JPG
ACIS - SAT
STEP
Materials
Body: die-cast aluminium
Seals: NBR
Internal parts: brass and stainless steel
External parts: reinforced polymer
Bowl: reinforced polycarbonate
