AZ Pneumatica. 18 mm in-line valves: blanking plate, blanking piece, diaphragm gasket, intermediate header, 3-5 way adaptor, omega interface

Blanking plate

3 ways

CS731

It is sold in kit with all necessary pieces for installation.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP


	5 ways CS751 It is sold in kit with all necessary pieces for installation.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

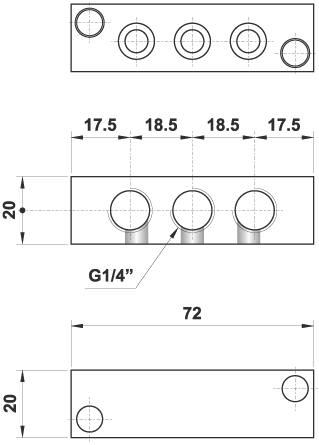

Intermediate header

DR751
It is sold in kit with all necessary pieces for installation.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

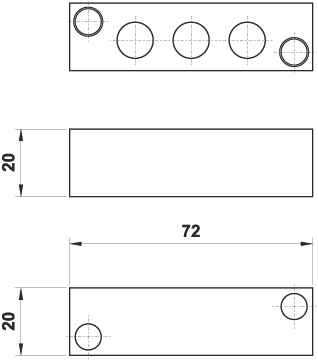

Blanking piece

DC751
It is sold in kit with all necessary pieces for installation.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

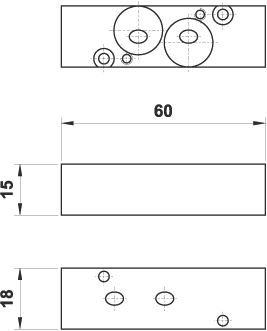

3-5 way adaptor

DD751
To install a three way valve on a sub-base for five way valves it is necessary to mount this adaptor between the valve and the sub-base.

It is sold in kit with all necessary pieces for installation.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

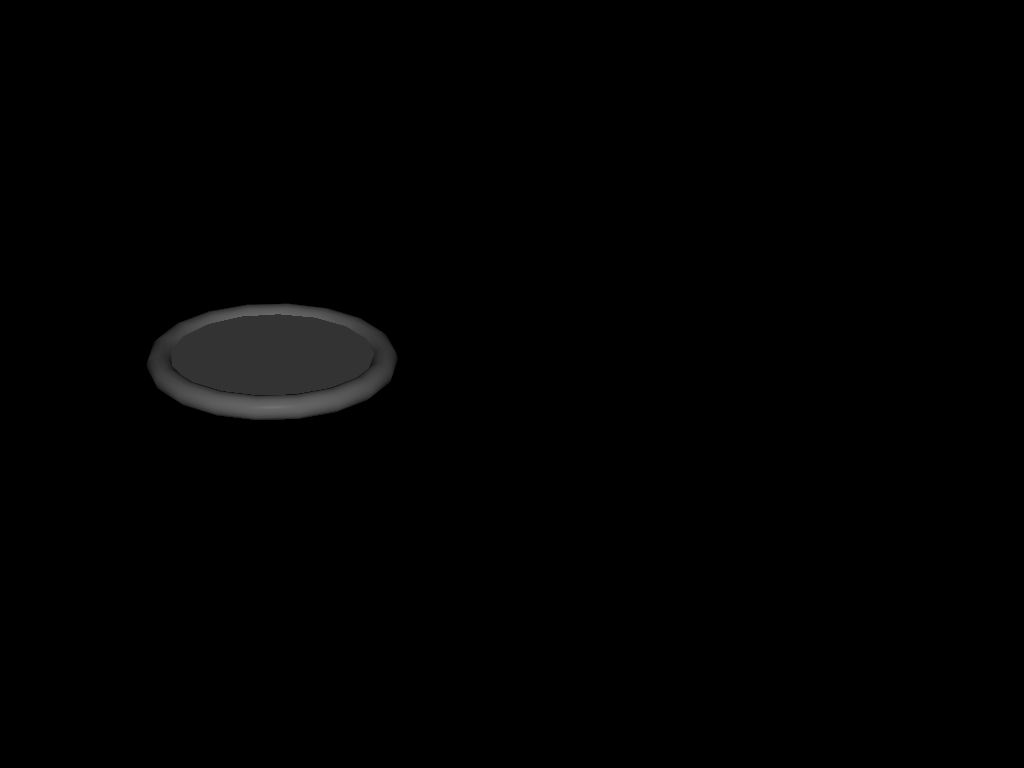

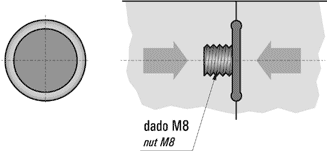

Diaphragm gasket

DF851
To be inserted between two sub-bases to stop the air flow and divide the manifold into separate zones.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

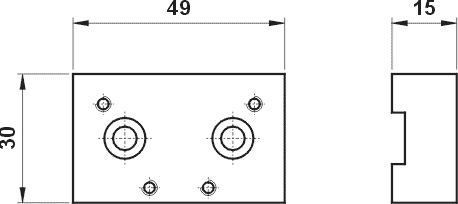

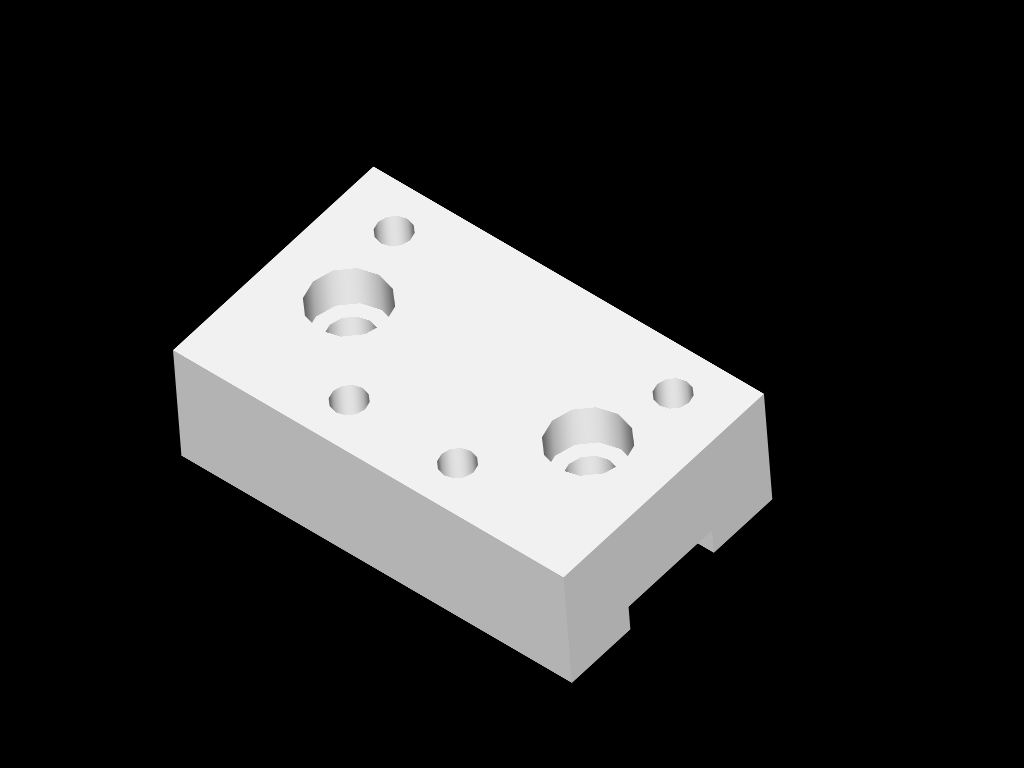

Interface for cylinder ISO 6431

05.035.2
It can be used to install a valve 751 on a cylinder ISO 6431 from bore 32 to bore 100.
It is sold with all necessary pieces for installation.
For the installation on the cylinder it is necessary to remove one end cap.

AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP
