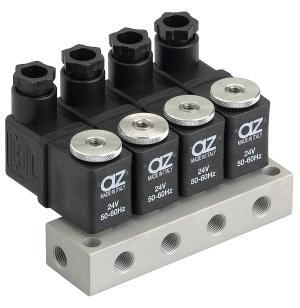

NC solenoid valves
on manifold
without manual override

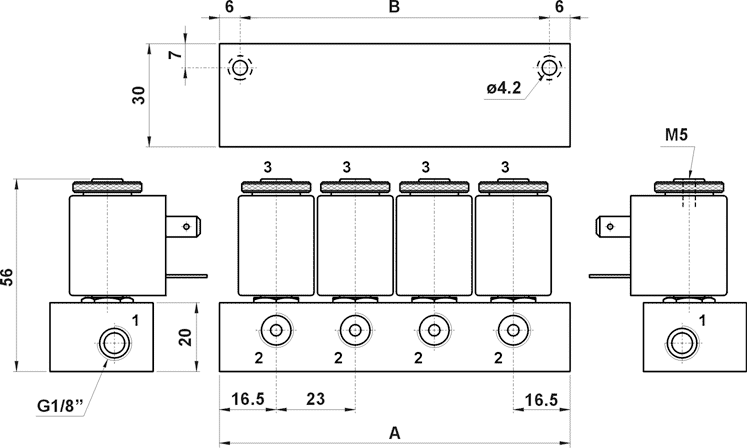

model
no. stations
A
B
AUTOCAD ver 14. DWG
JPG
ACIS - SAT
STEP

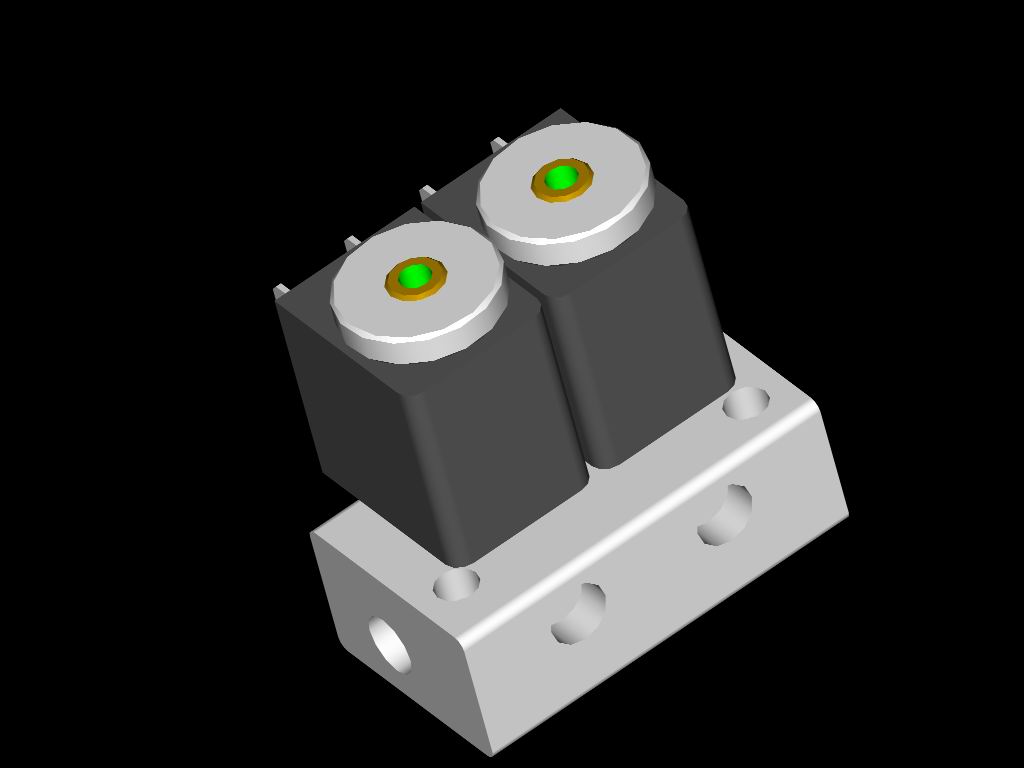

00.072.3
2
56
44

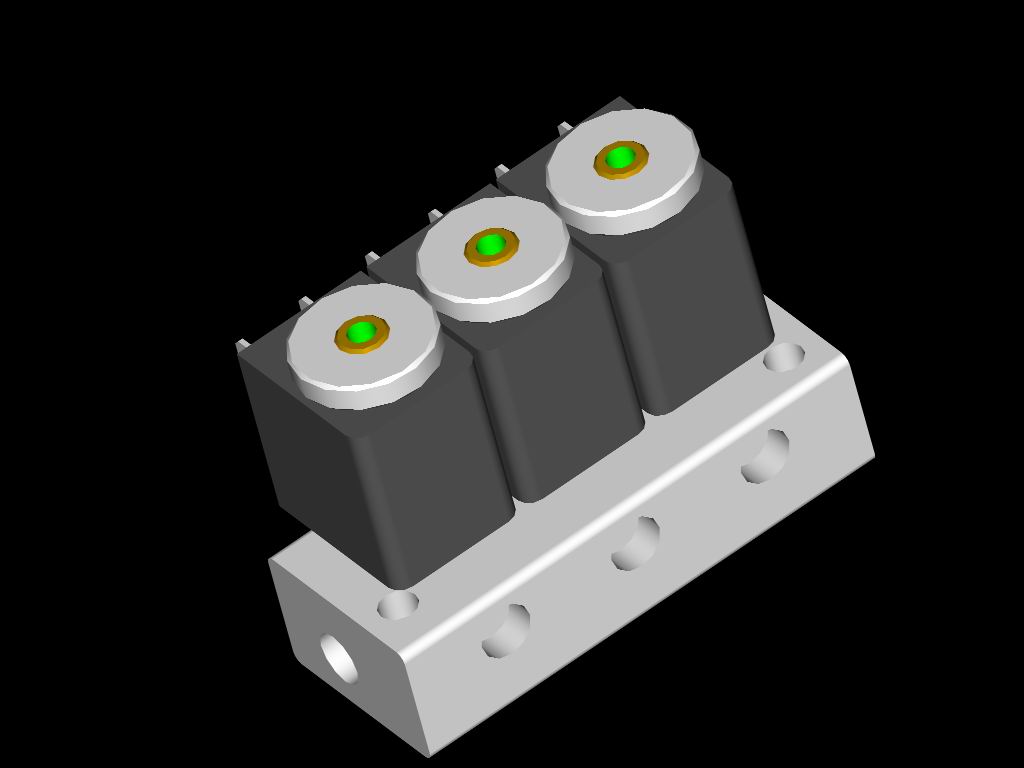

00.073.3
3
79
67

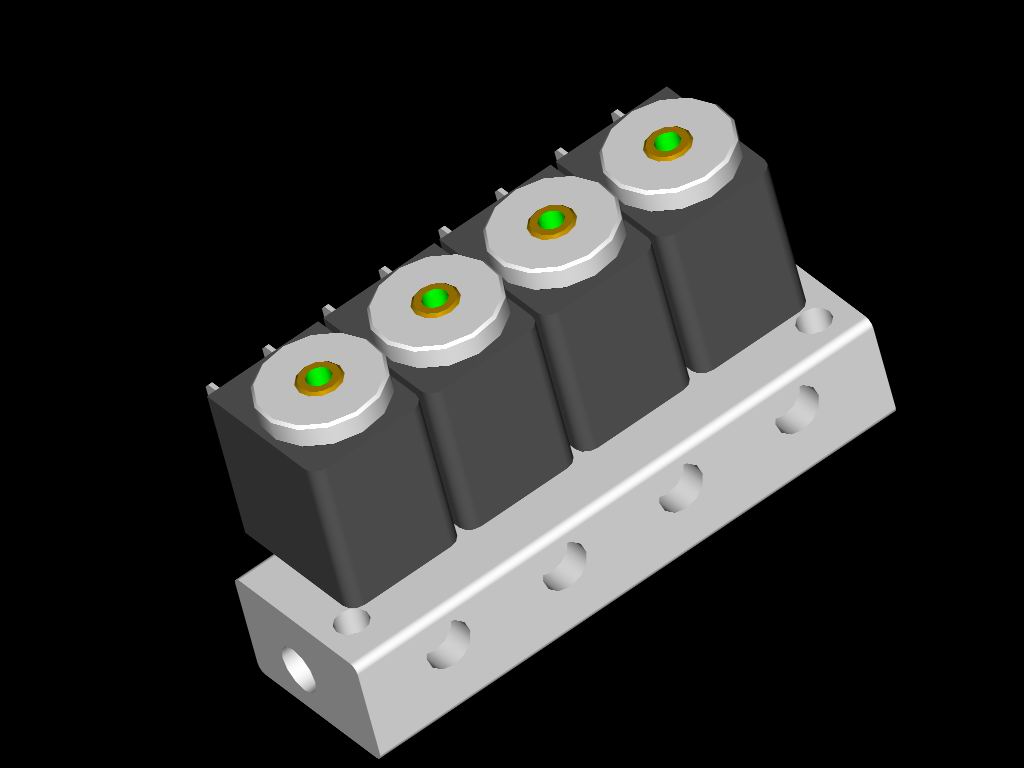

00.074.3
4
102
90
00.075.3
5
125
113

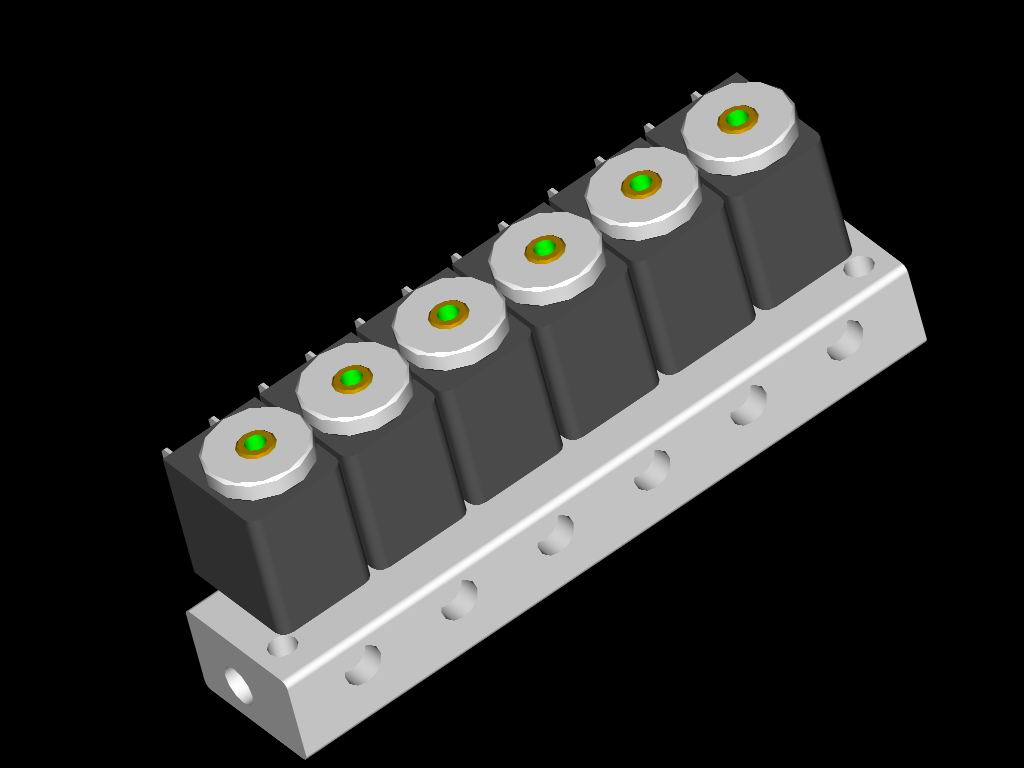

00.076.3
6
148
136

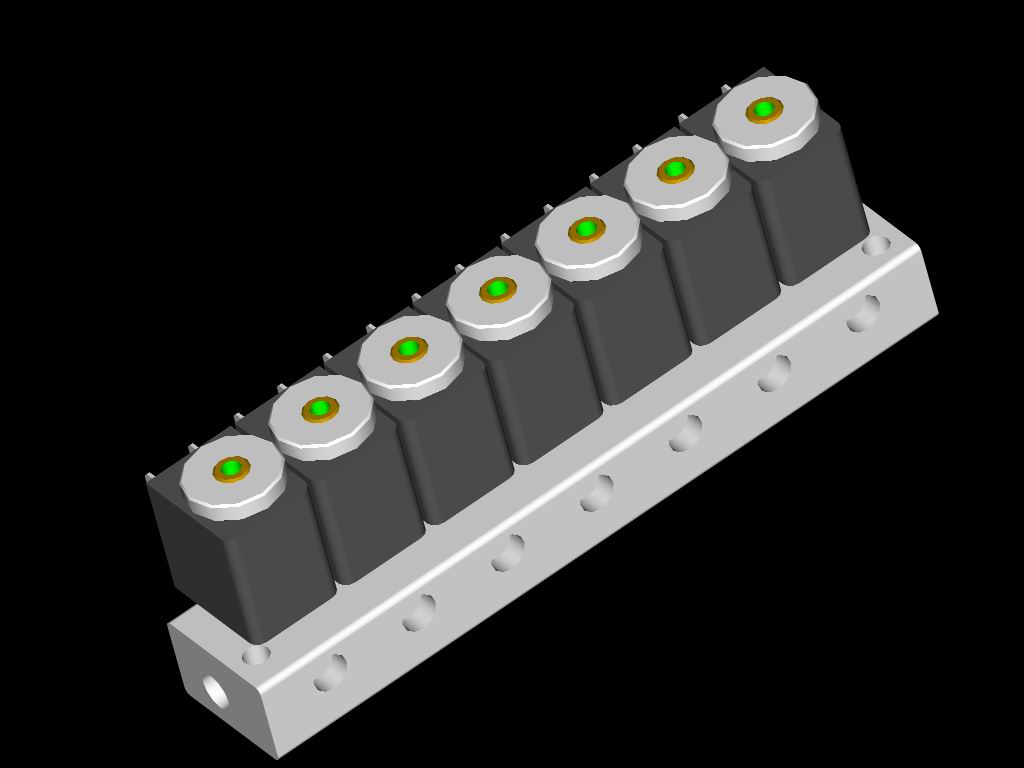

00.077.3
7
171
159
00.078.3
8
194
182

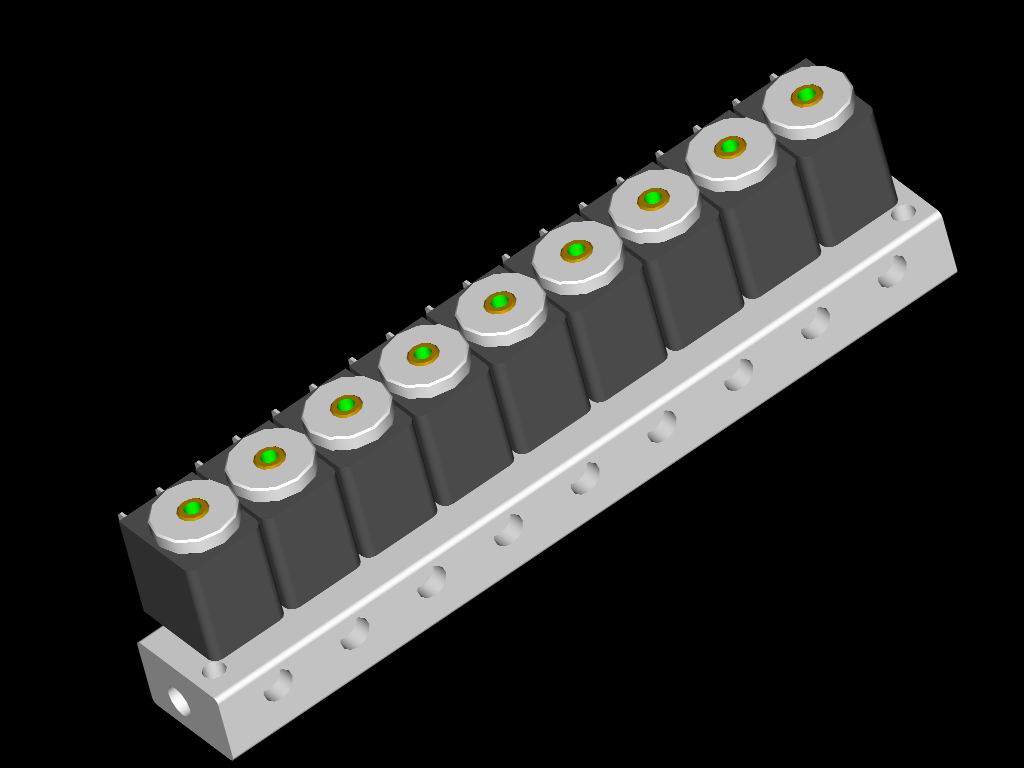

00.079.3
9
217
205

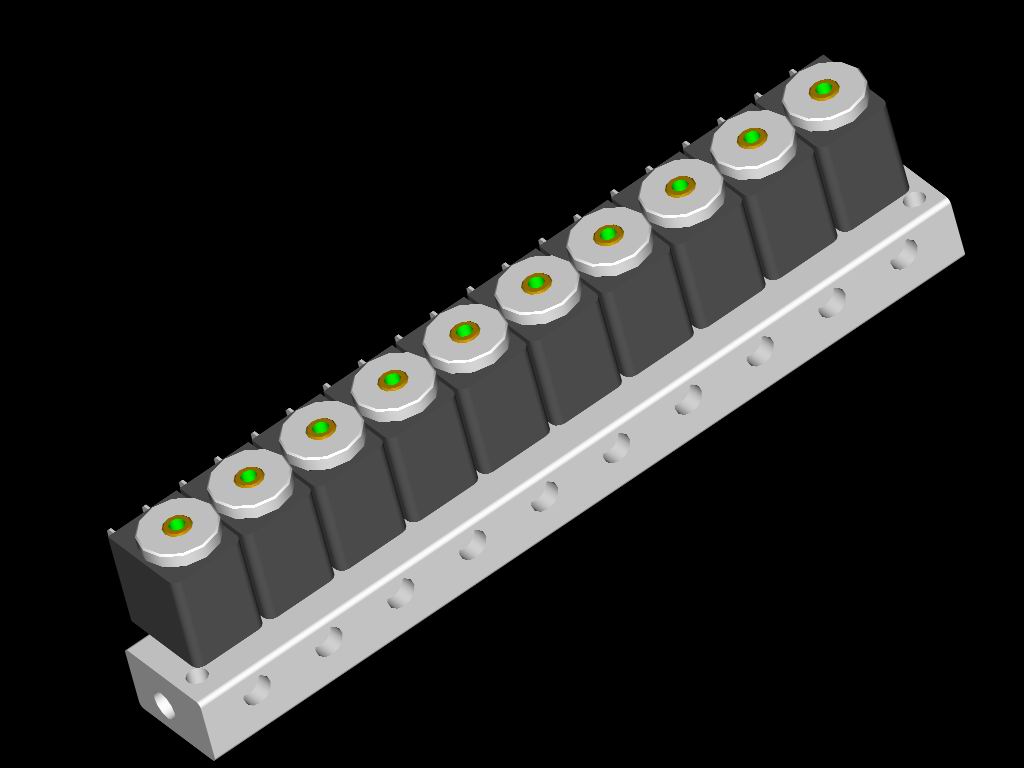

00.080.3
10
240
228
Nominal orifice: 1.1 mm
On request with push-in fittings for ш4 tube
The product is sold without
coils
, which are bought separately.
