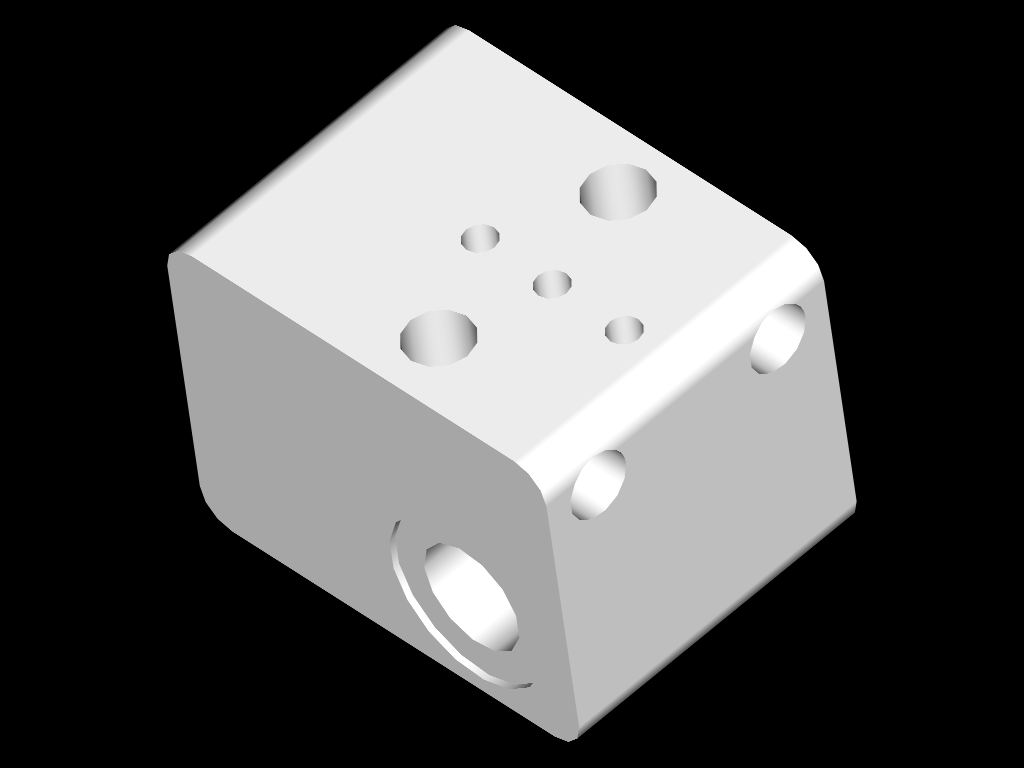

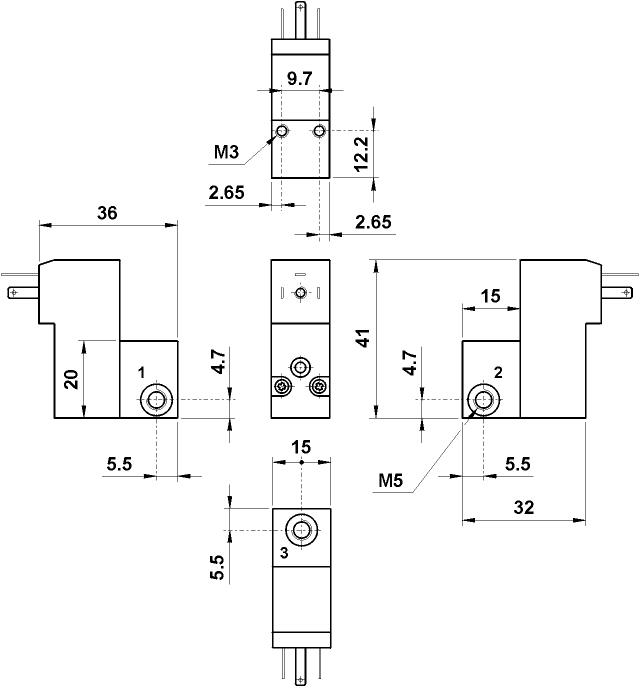

Single manifold for solenoid valve
15 mm NC
AU.061.1
- Valve function: NC
- Nominal orifice: 1.1 mm
- Flow rate 1-2: 30 Nl/min
- Flow rate 2-3: 35 Nl/min
- Рабочее давление: не более 10 bar
- Life time (cycles): 50.000.000
- Response time: < 10 ms
- не более frequency (cycles/min): 2000
- не более working temperature: +50°C
- Duty cycle: ED 100%
- Power consumption: 3W / 5VA
- Protection with connector: IP 65
- Рабочая среда: фильтрованный воздух 50m со смазкой или без
The here mentioned code is referred only to manifold. The solenoid valve is bought separately.
Предыдущая страница
|
AUTOCAD ver 14. DWG |
JPG |
ACIS - SAT |
STEP |
|
 |
 |
 |
 |
