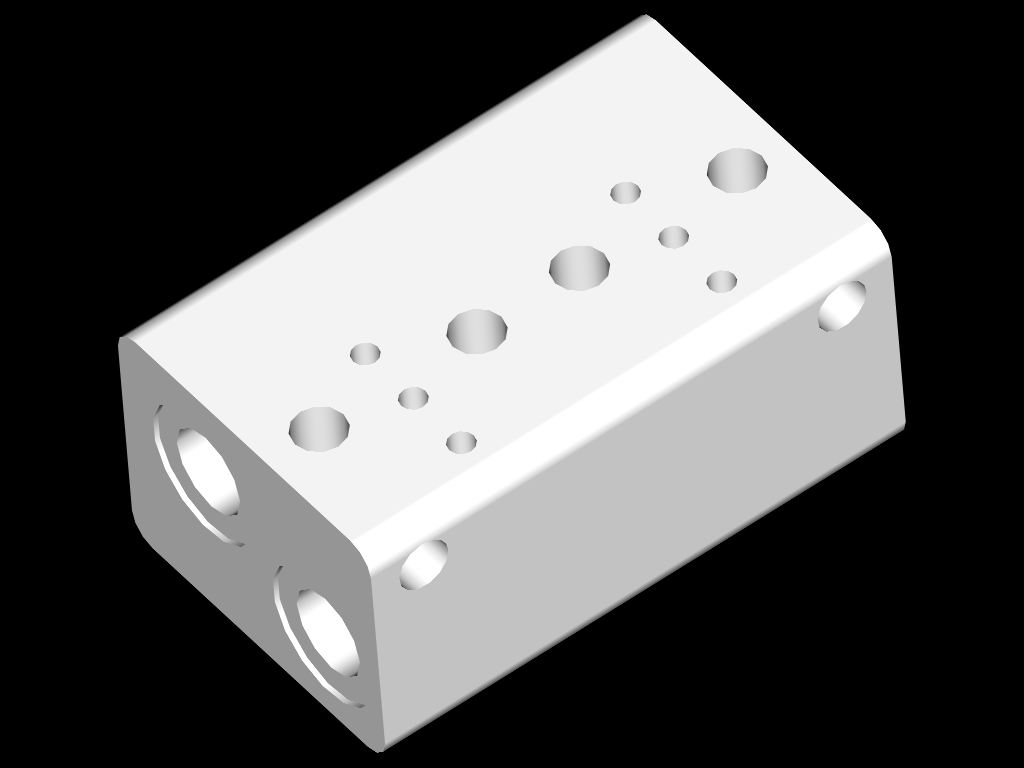

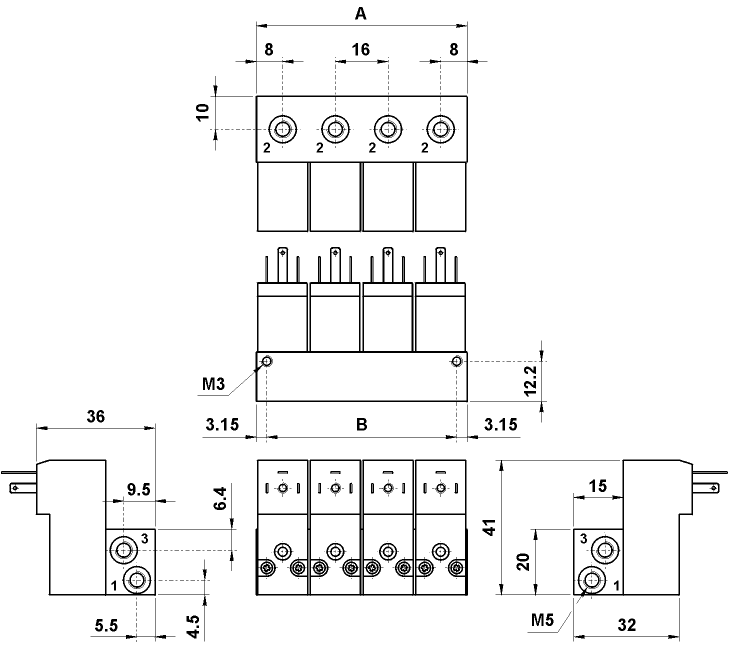

Manifolds for solenoid valves
15 mm NC
model
no. stations
A
B
AUTOCAD ver 14. DWG
JPG
ACIS - SAT
STEP
AU.062.1
2
32
25.7
AU.063.1
3
48
41.7
AU.064.1
4
64
57.7
AU.065.1
5
80
73.7
AU.066.1
6
96
89.7
AU.067.1
7
112
105.7
AU.068.1
8
128
121.7
AU.069.1
9
144
137.7
AU.070.1
10
160
153.7
All here mentioned codes are referred only to manifolds.
Solenoid valves
are bought separately.
