Pedal with reset button
* Reset button: after connecting air supply, to activate the valve it is necessary to push the button, otherwise the pedal valve does not function. The same operation is necessary to re-start the valve if air supply was interrupted or missing.
Cover colour: YELLOW
| Code |
Part number |
Description |
Symbol |

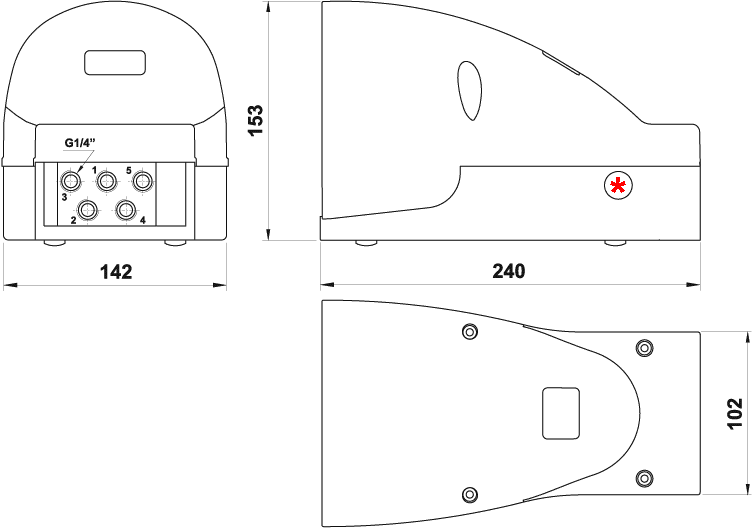

| 01.125.4N | PED 502 SR | Mono-stable pedal valve 5/2 1/4” with protection cover, safety feature* and reset button | |

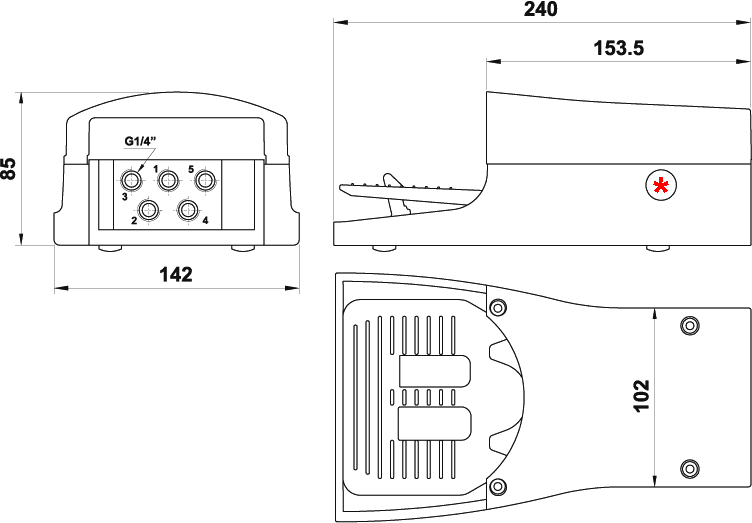

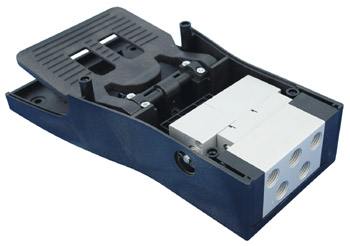

| 01.147.4N | PEDS 502 SR | Mono-stable pedal valve 5/2 1/4” without protection cover, with safety feature*
and with reset button | |
* Safety feature: to avoid accidental operation the pedal must be fully depressed.
