logo Pedal with progressive flow rate

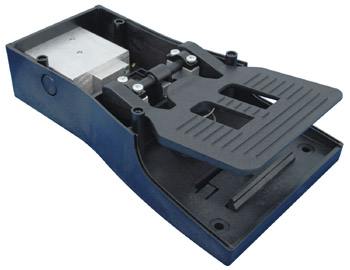

foto chiusa foto aperta

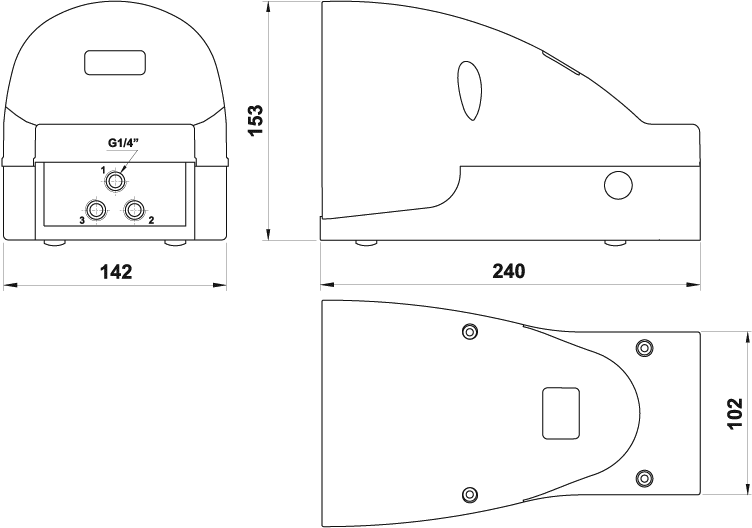

disegno

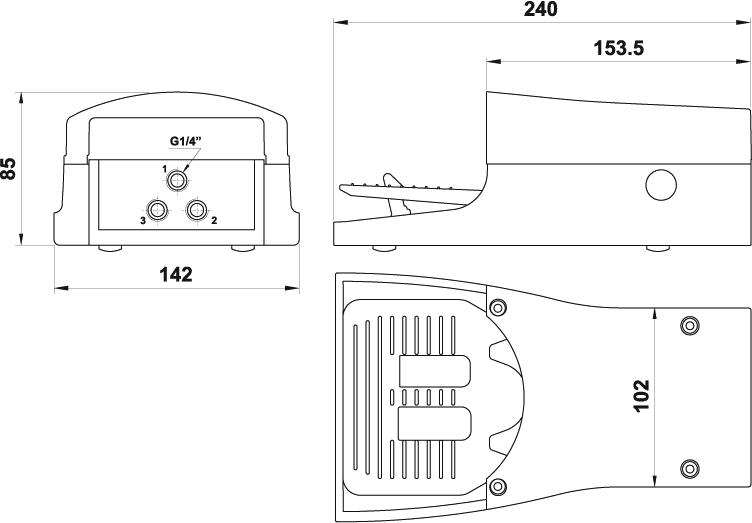

disegno



Cover colour: YELLOW

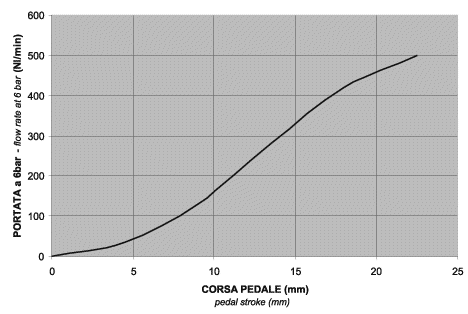

Valve flow rate related to pedal stroke
grafico




Code
Part number
Description
Symbol
01.133.4N
PED 302 P
Mono-stable pedal valve 3/2 NC 1/4” progressive flow rate, with protection cover
symbol
01.156.4N
PEDS 302 P
Mono-stable pedal valve 3/2 NC 1/4” progressive flow rate, with protection cover
symbol

Attention: the valve cannot be used as normally open.


technical data
