logo Pedal with 5/2 G1/4” spool valve - valve in rear position - without protection cover

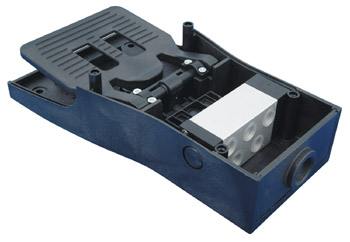

foto chiusa foto aperta

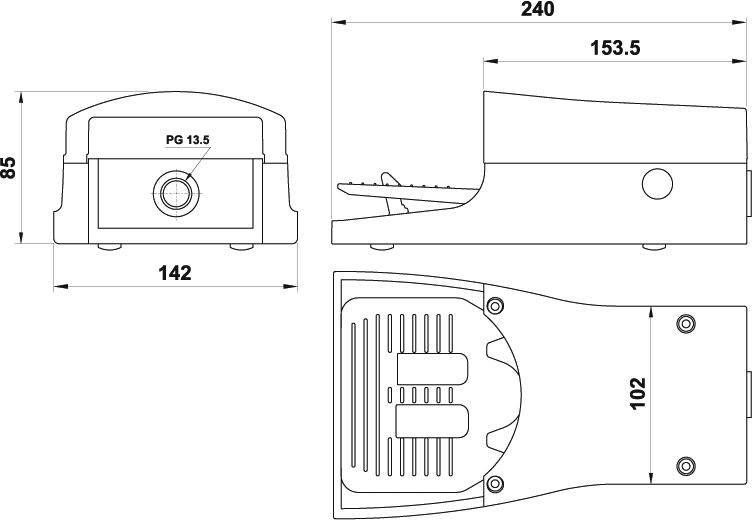

disegno





Cover colour: YELLOW





Code
Part number
Description
Symbol
01.139.4N
PEDS 502 MA
Mono-stable pedal valve 5/2 1/4” without protection cover
symbol
01.140.4N
PEDS 502 BA
Bi-stable pedal valve 5/2 1/4” without protection cover
symbol
01.141.4N
PEDS 502 SA
Mono-stable pedal valve 5/2 1/4” without protection cover, with safety feature*
symbol
01.142.4N
PEDS 502 BSA
Bi-stable pedal valve 5/2 1/4” without protection cover, with safety feature*
symbol

* Safety feature: to avoid accidental operation the pedal must be fully depressed.

The rear position of the valve allows to use a connection multitube, hiding the single air connection tubes with a better aesthetic effect.
