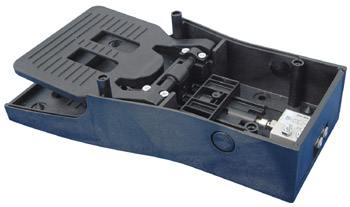

logo Pedal with 3/2 NC microvalve, push-in fittings for ø4 tube


foto chiusa foto aperta


disegno





Cover colour: YELLOW





Code
Part number
Description
Symbol
08.197.4N
PEDN 304 M
Mono-stable pedal valve 3/2 NC, push-in fittings ø4, with protection cover
symbol
08.198.4N
PEDN 304 B
Bi-stable pedal valve 3/2 NC, push-in fittings ø4, with protection cover
symbol
08.207.4N
PEDN 304 S
Mono-stable pedal valve 3/2 NC, push-in fittings ø4, with protection cover and safety feature*
symbol
08.209.4N
PEDN 304 BS
Bi-stable pedal valve 3/2 NC, push-in fittings ø4, with protection cover and safety feature*
symbol

* Safety feature: to avoid accidental operation the pedal must be fully depressed.


technical data
