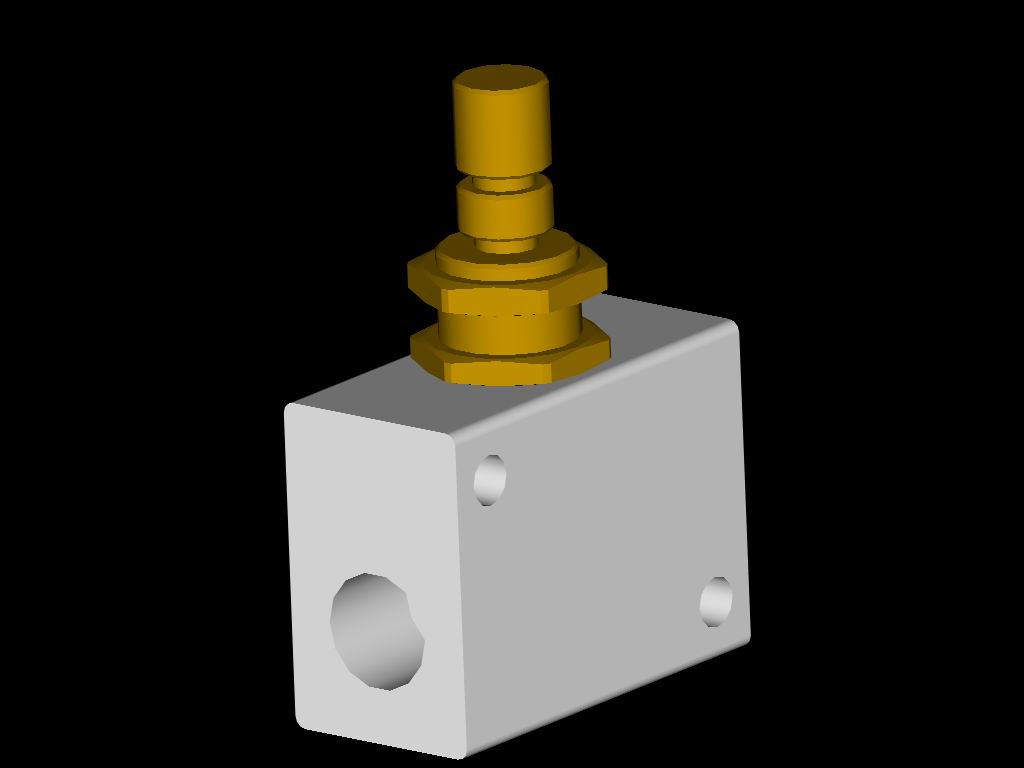

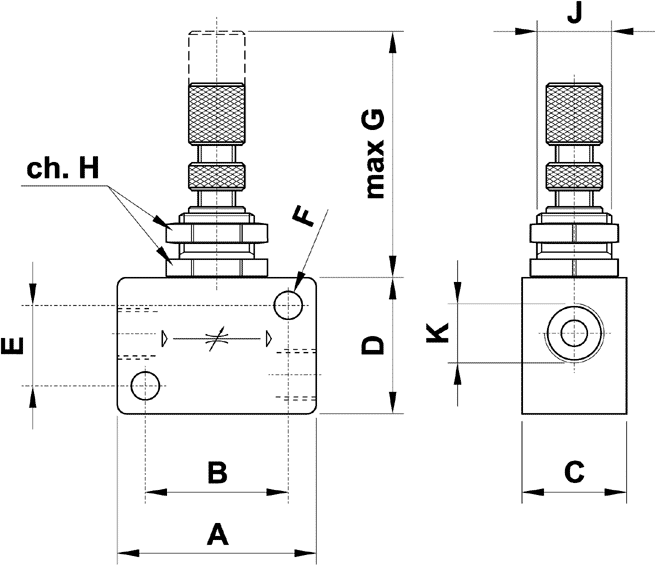

A	56
B	43
C	27
D	42
E	27
F	ø6.5
G	43
H	24
J	M18x1
K	G3/8"



AUTOCAD ver 14. DWG	JPG	ACIS - SAT	STEP

Technical data

• присоединения: G3/8"
• Nominal orifice: 7 mm
• Nominal flow rate at 6 bar: 500 Nl/min
• Temperature range: max +60°C
• Working pressure: 2 ... 10 bar
• Fluid: 50µ filtered, lubricated or non lubricated air

• Body: aluminium 11S
• Seals: NBR
• Springs: stainless steel
• Internal parts: brass OT 58
