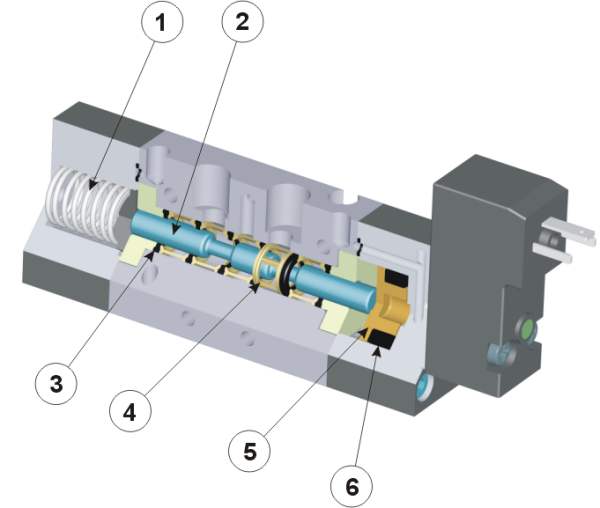

1. Spring: steel
2. Spool: nickel plated aluminium
3. Sealing for spool: NBR
4. Distanziale: brass
5. Piston to actuate the spool: delrin
6. DE sealing for piston: NBR
Spare parts for in-line 18 mm valves
1. Spring: steel
2. Spool: nickel plated aluminium
3. Sealing for spool: NBR
4. Distanziale: brass
5. Piston to actuate the spool: delrin
6. DE sealing for piston: NBR
|
order code
|
suitable for
|
||
|
05.057.2
|
731 MC |
731 MCA
|
731 ME
|
|
731 MEA
|
731 ME AS |
|
|
|
05.058.2
|
731 CC
|
731 EE
|
731 EE AS
|
|
05.059.2
|
731 CCD
|
731 CFP
|
731 EFP
|
|
05.053.2
|
751 MC
|
751 ME
|
751 ME AS
|
|
05.054.2
|
751 CC
|
751 EE
|
751 EE AS
|
|
05.056.2
|
751 CCD
|
751 CFP
|
751 EFP
|
|
00.055.2
|
7513C CC
|
7513A CC
|
7513C EE
|
|
7513A EE
|
7513C EE AS |
7513A EE AS
|
|
