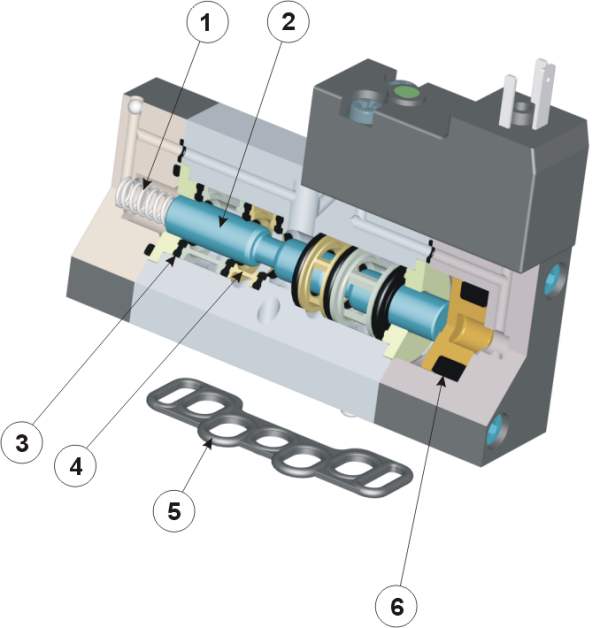

1. Spring: steel
2. Spool: aluminium 11S (nickeled)
3. Sealing for spool: NBR
4. Distanziale: brass
5. Sealing under the valve body: NBR
6. DE sealing for piston: NBR
Spare parts for 18 mm VDMA valves
1. Spring: steel
2. Spool: aluminium 11S (nickeled)
3. Sealing for spool: NBR
4. Distanziale: brass
5. Sealing under the valve body: NBR
6. DE sealing for piston: NBR
|
order code
|
suitable for
|
||
|
05.050.2
|
851 MC |
851 ME
|
|
|
05.051.2
|
851 CC
|
851 EE
|
851 EE AS
|
|
00.052.2
|
8513C CC
|
8513A CC
|
8513C EE
|
|
8513A EE
|
8513C EE AS |
8513A EE AS
|
|
|
05.048.2
|
851 CCD
|
851 CFP
|
851 EFP
|
|
05.049.2
|
851 ME AS
|
|
|
