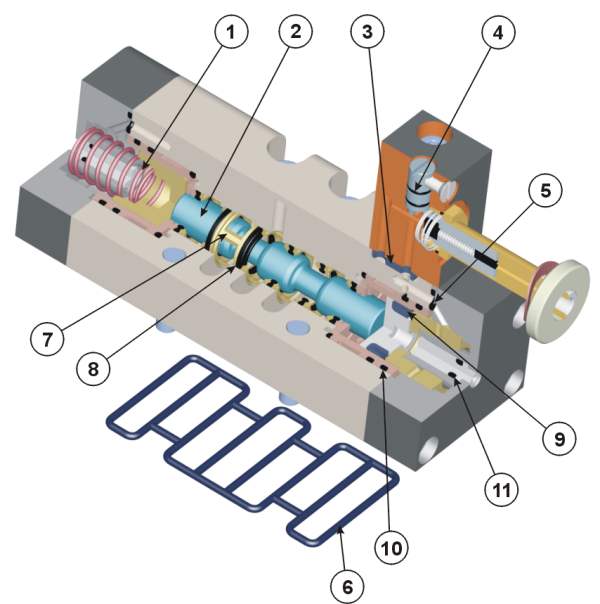

Spare parts for ISO 1 valves
1. Spring: steel
2. Spool: aluminium 11S (nickeled)
3. Multifunction sealing: NBR
4. O-Ring 4x1: NBR
5. O-Ring: NBR
6. Sealing under the body ISO 1: NBR
7. Distanziale: brass
8. Sealing for spool: NBR
9. DE sealing for piston: NBR
10. O-Ring: NBR
11. O-Ring: NBR
|
order code
|
suitable for
|
||
|
00.048.2
|
152 CC |
152 EE
|
152 EE AS
|
|
153C CC
|
153A CC
|
153P CC
|
|
|
153C EE
|
153A EE
|
153P EE
|
|
|
153C EE AS
|
153A EE AS |
153P EE AS
|
|
|
00.047.2
|
152 MC
|
152 ME
|
152 ME AS
|
|
00.049.2
|
152 CCD
|
152 CFP
|
152 EFP
|
