AVP 4-00







Valve operation

The valve applies to a pneumatic circuit a progressively increasing pressure over a period of time set by the integrated screw. During this phase no air consumption is allowed in the circuit. After having reached the half of the system pressure, the slow-start valve begins to автоматическийally feed the circuit with the system pressure.
The slow-start valve prevents from unexpected motions of the pneumatic devices in the circuit, which could happen by applying directly the system pressure.

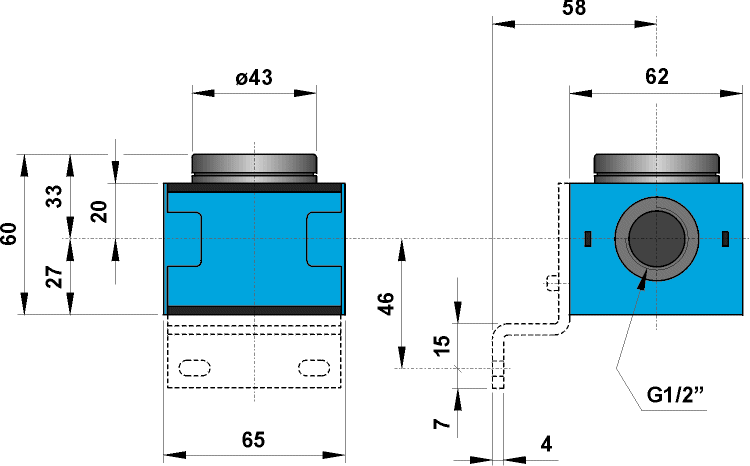

по заказу the кронштейн для крепления (номер для заказа STF 4) is available.


номер для заказа
AVP 4-00
присоединения
G1/2"
Рабочая температура
не более +60°C
Масса
0.6 kg
Рабочее давление
2 ... 16 bar
0.2 ... 1.6 MPa
Рекомендованный расход
(p = 6 bar при 25 m/s)
1900 Nl/min
Маскимальный расход
(p = 6.3 bar; падение давления = 1 bar)
3700 Nl/min

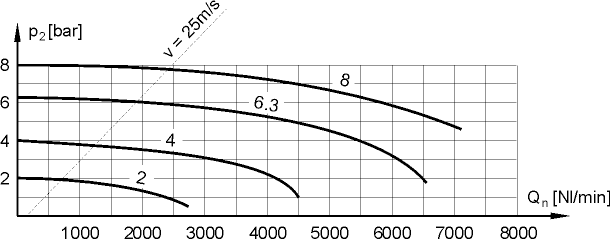

Расходы


Расходы




Материалы
