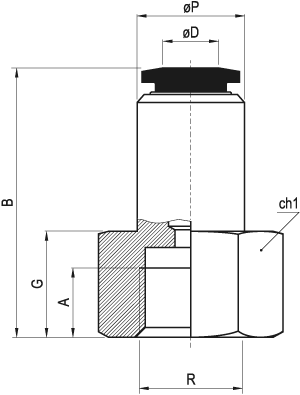

tubo (ЖD) tube трубка	R	ЖP	B	G	A	ch1	confez. package упак.	codice code код
4	G1/8"	10	24	10	8.5	14	10	36.944.0
4	G1/4"	10	27.5	12.5	11	17	10	36.945.0
6	G1/8"	12	24.5	10.5	8.5	14	10	36.946.0
6	G1/4"	12	27	13	11	17	10	36.947.0
6	G3/8"	12	28	14	12	21	10	36.948.0
8	G1/8"	14	26	10.5	8.5	14	10	36.949.0
8	G1/4"	14	28.5	13	11	17	10	36.950.0
8	G3/8"	14	29.5	14	12	21	10	36.951.0
8	G1/2"	14	31.5	16	14	24	10	36.952.0
10	G1/8"	17	29	10.5	8.5	17	10	36.953.0
10	G1/4"	17	32	13	11	17	10	36.954.0
10	G3/8"	17	33	14	12	21	10	36.955.0
10	G1/2"	17	35	16	14	24	10	36.956.0
12	G1/4"	20	33.5	13	11	21	10	36.957.0
12	G3/8"	20	34.5	14	12	21	10	36.958.0
12	G1/2"	20	36.5	16	14	24	5	36.959.0

Dati tecnici - Technical data - Технические данные
