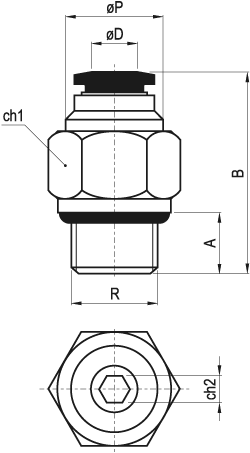

tubo (ЖD) tube трубка	R	ЖP	B	A	ch1	ch2	confez. package упак.	codice code код
4	M5	10	19.6	4	10	2	10	36.800.0
4	G1/8"	10	19.4	5.5	14	3	10	36.801.0
4	G1/4"	10	20.1	7	17	3	10	36.802.0
6	M5	12	20	4	12	2	10	36.803.0
6	G1/8"	12	19.5	5.5	14	4	10	36.804.0
6	G1/4"	12	21.8	7	17	4	10	36.805.0
6	G3/8"	12	19.3	7.5	20	4	10	36.806.0
8	G1/8"	14	25	5.5	14	5	10	36.807.0
8	G1/4"	14	23.5	7	17	6	10	36.808.0
8	G3/8"	14	20.5	7.5	20	6	10	36.809.0
8	G1/2"	14	24	10	24	6	10	36.810.0
10	G1/8"	17	28.5	5.5	14	5	10	36.811.0
10	G1/4"	17	30	7	17	6	10	36.812.0
10	G3/8"	17	27	7.5	20	8	10	36.813.0
10	G1/2"	17	30	10	24	8	10	36.814.0
12	G1/4"	20	32	7	17	6	10	36.815.0
12	G3/8"	20	28	7.5	20	8	10	36.816.0
12	G1/2"	20	30.5	10	24	8	5	36.817.0
16	G1/4"	25	34.2	7	24	8	5	36.818.0
16	G3/8"	25	35	7.5	24	8	5	36.819.0
16	G1/2"	25	38	10	24	10	5	36.820.0

Dati tecnici - Technical data - Технические данные
