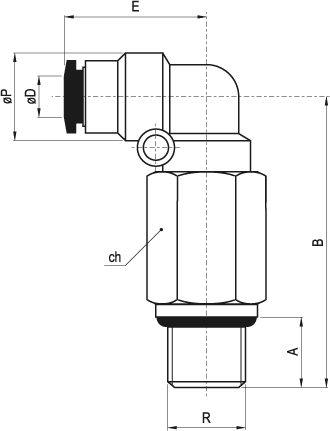

tubo (ЖD) tube трубка	R	ЖP	B	E	A	ch	confez. package упак.	codice code код
4	M5	11	34	18.2	3.5	10	10	36.771.0
4	G1/8"	11	35.8	18.2	5.5	14	10	36.772.0
4	G1/4"	11	37.8	18.2	7	17	10	36.773.0
6	M5	13	35	18.7	4.2	12	10	36.774.0
6	G1/8"	13	38.1	18.7	5.5	14	10	36.775.0
6	G1/4"	13	40.1	18.7	7	17	10	36.776.0
6	G3/8"	13	42.2	18.7	7.5	20	10	36.777.0
8	G1/8"	14.4	43.3	22.2	5.5	14	10	36.778.0
8	G1/4"	14.4	45.3	22.2	7	17	10	36.779.0
8	G3/8"	14.4	46.3	22.2	7.5	20	5	36.780.0
8	G1/2"	14.4	49.3	22.2	10	24	5	36.781.0
10	G1/8"	18.4	53	26.2	5.5	17	5	36.782.0
10	G1/4"	18.4	53	26.2	7	17	5	36.783.0
10	G3/8"	18.4	54	26.2	7.5	20	5	36.784.0
10	G1/2"	18.4	57	26.2	10	24	5	36.785.0
12	G1/4"	21	60	29.5	7	21	2	36.786.0
12	G3/8"	21	60	29.5	7.5	21	2	36.787.0
12	G1/2"	21	61.3	29.5	10	24	2	36.788.0
16	G1/4"	26	63	32.5	7	24	2	36.789.0
16	G3/8"	26	64	32.5	7.5	24	2	36.790.0
16	G1/2"	26	66.5	32.5	10	24	2	36.791.0

Dati tecnici - Technical data - Технические данные
