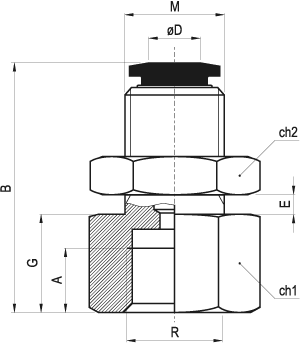

tubo (ЖD) tube трубка	R	B	G	A	E max	ch1	ch2	M	confez. package упак.	codice code код
4	G1/8"	24	10	8.5	5	14	14	M12x1	10	36.842.0
4	G1/4"	26.5	12	11	5	17	14	M12x1	10	36.843.0
6	G1/8"	24.5	10.5	8.5	6	14	17	M14x1	10	36.844.0
6	G1/4"	27	13	11	6	17	17	M14x1	10	36.845.0
6	G3/8"	28	14	12	6	21	17	M14x1	10	36.846.0
8	G1/8"	26	10.5	8.5	7	17	19	M16x1	10	36.847.0
8	G1/4"	28.5	13	11	7	17	19	M16x1	10	36.848.0
8	G3/8"	29.5	14	12	7	21	19	M16x1	10	36.849.0
8	G1/2"	34	16	14	7	24	19	M16x1	10	36.850.0
10	G1/8"	30	10.5	8.5	8	21	24	M20x1	10	36.851.0
10	G1/4"	32.5	13	11	8	21	24	M20x1	10	36.852.0
10	G3/8"	33.5	14	12	8	21	24	M20x1	10	36.853.0
10	G1/2"	37.2	16	14	8	24	24	M20x1	5	36.854.0
12	G1/4"	33.5	13	11	10	24	27	M22x1	5	36.855.0
12	G3/8"	34.5	14	12	10	24	27	M22x1	5	36.856.0
12	G1/2"	37	16	14	10	24	27	M22x1	5	36.857.0

Dati tecnici - Technical data - Технические данные
