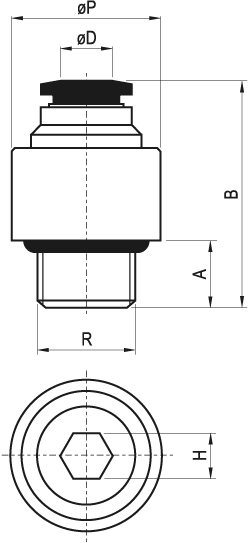

AZOC-G
|
|
|
|
tubo (ЖD) tube трубка |
R | ЖP | B | A | H |
confez. package упак. |
codice code код |
| 4 | M5 | 10 | 19.6 | 4 | 2 | 10 | 36.1130.0 |
| 4 | G1/8" | 14 | 19.4 | 5.5 | 3 | 10 | 36.1131.0 |
| 4 | G1/4" | 17 | 20.1 | 7 | 3 | 10 | 36.1132.0 |
| 6 | M5 | 12 | 20 | 4 | 2 | 10 | 36.1133.0 |
| 6 | G1/8" | 14 | 20 | 5.5 | 4 | 10 | 36.1134.0 |
| 6 | G1/4" | 17 | 22.3 | 7 | 4 | 10 | 36.1135.0 |
| 6 | G3/8" | 20 | 19.3 | 7.5 | 4 | 5 | 36.1136.0 |
| 8 | G1/8" | 14 | 25 | 5.5 | 4 | 10 | 36.1137.0 |
| 8 | G1/4" | 17 | 23.5 | 7 | 6 | 10 | 36.1138.0 |
| 8 | G3/8" | 20 | 20.5 | 7.5 | 6 | 5 | 36.1139.0 |
| 8 | G1/2" | 24 | 24 | 10 | 6 | 5 | 36.1140.0 |
| 10 | G1/8" | 17 | 28.5 | 5.5 | 5 | 10 | 36.1141.0 |
| 10 | G1/4" | 17 | 30 | 7 | 6 | 10 | 36.1142.0 |
| 10 | G3/8" | 20 | 27 | 7.5 | 8 | 5 | 36.1143.0 |
| 10 | G1/2" | 24 | 30 | 10 | 8 | 5 | 36.1144.0 |
| 12 | G1/4" | 20 | 32.5 | 7 | 6 | 5 | 36.1145.0 |
| 12 | G3/8" | 20 | 28.5 | 7.5 | 8 | 5 | 36.1146.0 |
| 12 | G1/2" | 24 | 31 | 10 | 8 | 5 | 36.1147.0 |
