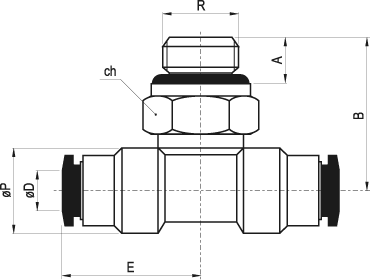

tubo (ЖD) tube трубка	R	ЖP	B	E	A	ch	confez. package упак.	codice code код
4	M5	11	21	18.5	4	10	10	36.821.0
4	G1/8"	11	22.5	18.5	5.5	14	10	36.822.0
4	G1/4"	11	24.5	18.5	7	17	10	36.823.0
6	M5	13	23	19	4	10	10	36.824.0
6	G1/8"	13	24	19	5.5	14	10	36.825.0
6	G1/4"	13	26	19	7	17	10	36.826.0
6	G3/8"	13	27.1	19	7.5	20	10	36.827.0
8	G1/8"	14.4	24.5	21.7	5.5	14	10	36.828.0
8	G1/4"	14.4	26.5	21.7	7	17	10	36.829.0
8	G3/8"	14.4	27.6	21.7	7.5	20	10	36.830.0
8	G1/2"	14.4	30.5	21.7	10	24	5	36.831.0
10	G1/8"	18.4	29.5	27.4	5.5	17	5	36.832.0
10	G1/4"	18.4	31	27.4	7	17	5	36.833.0
10	G3/8"	18.4	32	27.4	7.5	20	5	36.834.0
10	G1/2"	18.4	35	27.4	10	24	5	36.835.0
12	G1/4"	21	32	28	7	20	5	36.836.0
12	G3/8"	21	33	28	7.5	20	5	36.837.0
12	G1/2"	21	36	28	10	24	5	36.838.0
16	G1/4"	26	38	32	7	24	4	36.839.0
16	G3/8"	26	39	32	7.5	24	4	36.840.0
16	G1/2"	26	41.5	32	10	24	4	36.841.0

Dati tecnici - Technical data - Технические данные
