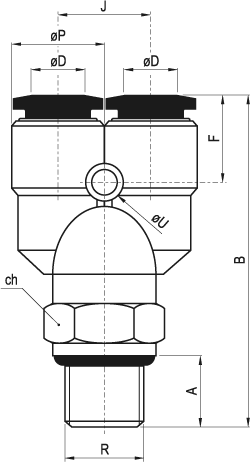

tubo (ЖD) tube трубка	R	ЖP	B	F	ЖU	J	A	ch	confez. package упак.	codice code код
4	M5	11	41.5	14	3.2	11	3.5	10	10	36.880.0
4	G1/8"	11	40.5	14	3.2	11	5.5	14	10	36.881.0
4	G1/4"	11	42.5	14	3.2	11	7	17	10	36.882.0
6	M5	13	41.5	14.5	3.2	13	4.2	12	10	36.883.0
6	G1/8"	13	42.5	14.5	3.2	13	5.5	14	10	36.884.0
6	G1/4"	13	44.5	14.5	3.2	13	7	17	10	36.885.0
6	G3/8"	13	45.5	14.5	3.2	13	7.5	20	10	36.886.0
8	G1/8"	14.4	44	18.2	3.2	15	5.5	14	10	36.887.0
8	G1/4"	14.4	46	18.2	3.2	15	7	17	10	36.888.0
8	G3/8"	14.4	47	18.2	3.2	15	7.5	20	10	36.889.0
8	G1/2"	14.4	50	18.2	3.2	15	10	24	5	36.890.0
10	G1/8"	18.4	54	21	4.2	18	5.5	17	5	36.891.0
10	G1/4"	18.4	55.5	21	4.2	18	7	17	5	36.892.0
10	G3/8"	18.4	56.5	21	4.2	18	7.5	20	5	36.893.0
10	G1/2"	18.4	59.5	21	4.2	18	10	24	5	36.894.0
12	G1/4"	21	59	21.5	4.2	21	7	20	5	36.895.0
12	G3/8"	21	59.5	21.5	4.2	21	7.5	20	5	36.896.0
12	G1/2"	21	62.5	21.5	4.2	21	10	24	5	36.897.0
16	G1/4"	26	66	22	5.2	26	7	24	2	36.898.0
16	G3/8"	26	67	22	5.2	26	7.5	24	2	36.899.0
16	G1/2"	26	69.5	22	5.2	26	10	24	2	36.900.0

Dati tecnici - Technical data - Технические данные
