This intermediate flange is inserted between two compact cylinders to form an opposite cylinder. It is sold in kit with all necessary pieces for installation

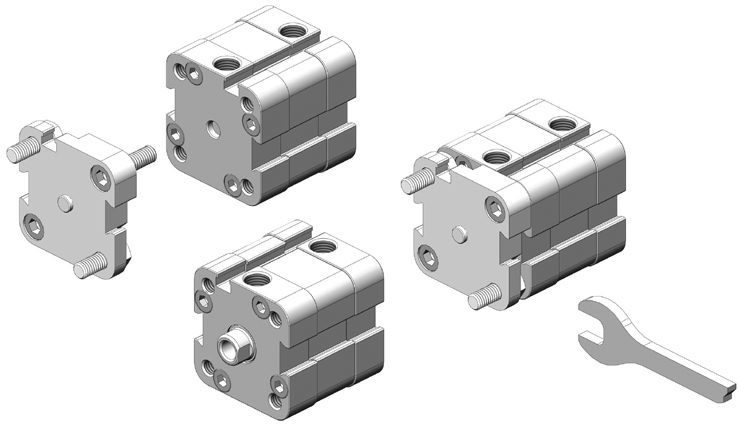

SCHEMA DI ASSEMBLAGGIO - Assembling instructions

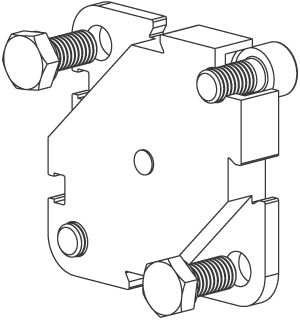

Flangia intermedia per cilindri compatti contrapposti
Questa flangia intermedia deve essere inserita tra due cilindri compatti per formare un cilindro contrapposto. È venduta in kit con tutti i particolari necessari al suo assemblaggio.
This intermediate flange is inserted between two compact cylinders to form an opposite cylinder. It is sold in kit with all necessary pieces for installation
SCHEMA DI ASSEMBLAGGIO - Assembling instructions

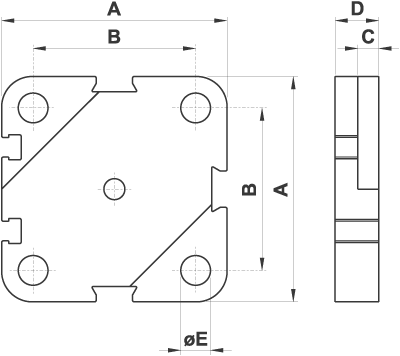

| codice code | per alesaggio for bore | A | B | C | D | E | ||
ISO | UNITOP | ISO | UNITOP | |||||
| 25.082.2 | 25.082.2 | 32 | 46 | 32.3 | 32.3 | 5 | 10.5 | 6.5 |
| 25.083.2 | 25.088.2 | 40 | 55 | 38 | 42 | 6 | 12.5 | 6.5 |
| 25.084.2 | 25.089.2 | 50 | 64.5 | 46.5 | 50 | 6 | 12.5 | 8.5 |
| 25.085.2 | 25.090.2 | 63 | 78 | 56.5 | 62 | 7 | 13.5 | 8.5 |
| 25.086.2 | 25.091.2 | 80 | 98 | 72 | 82 | 7 | 15 | 10.5 |
| 25.087.2 | 25.092.2 | 100 | 119 | 89 | 103 | 7 | 15 | 10.5 |
