AZ Pneumatica. Manifolds for 18 mm in-line valves

Manifolds
for 18 mm in-line valves - 3/2

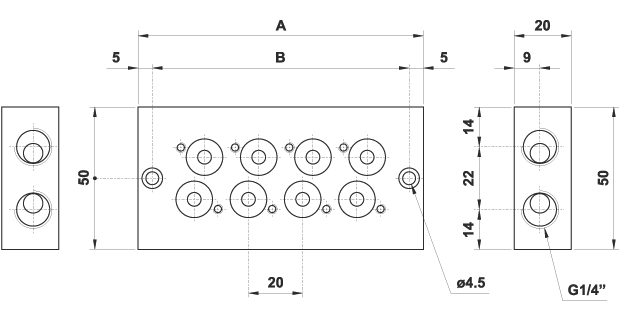

manifolds 3/2 - 18 mm 1/8

model no. stations A B
AUTOCAD ver 14. DWG
JPG
ACIS - SAT
STEP

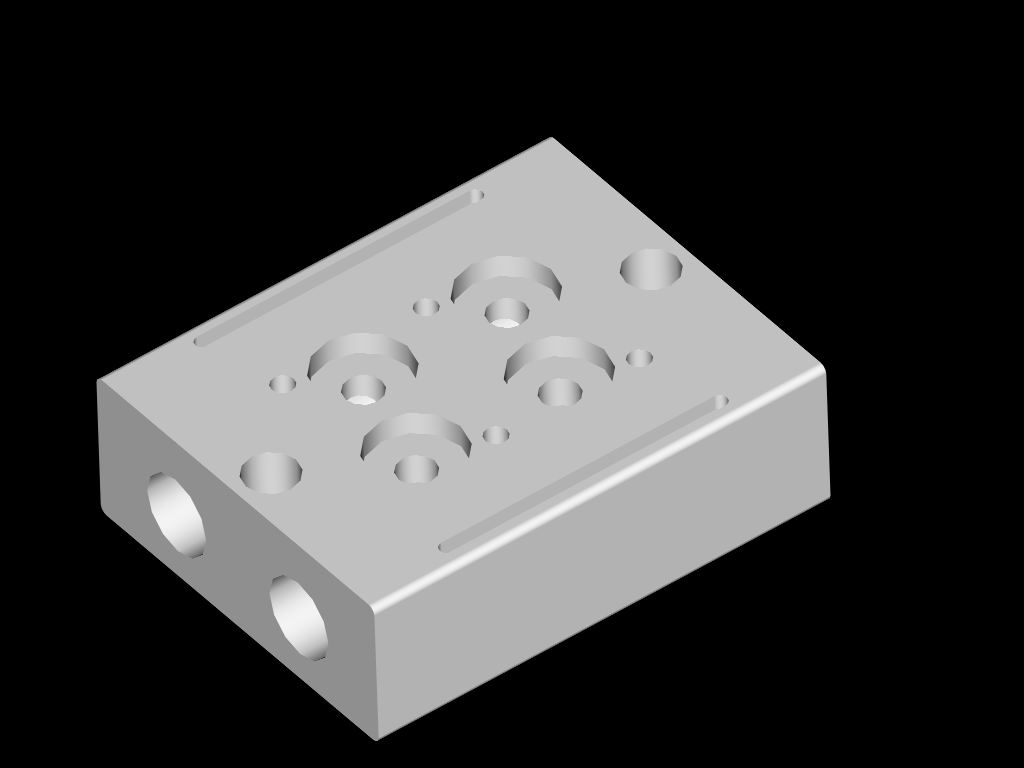

05.012.2

2

63

53

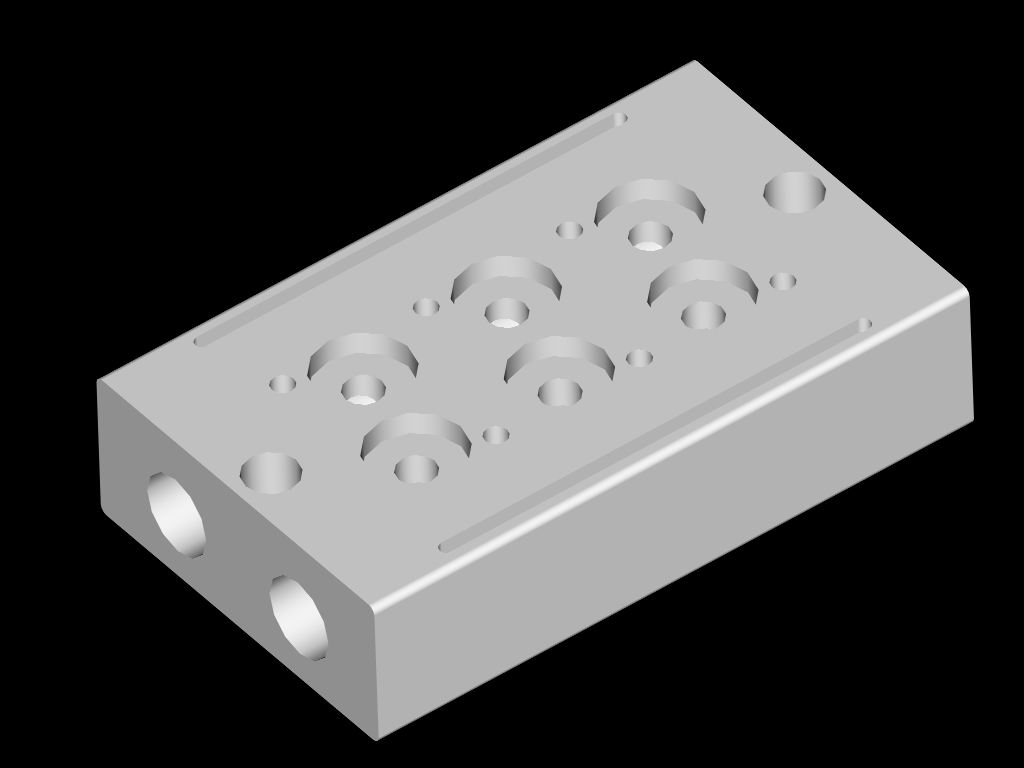

05.013.2

3

83

73

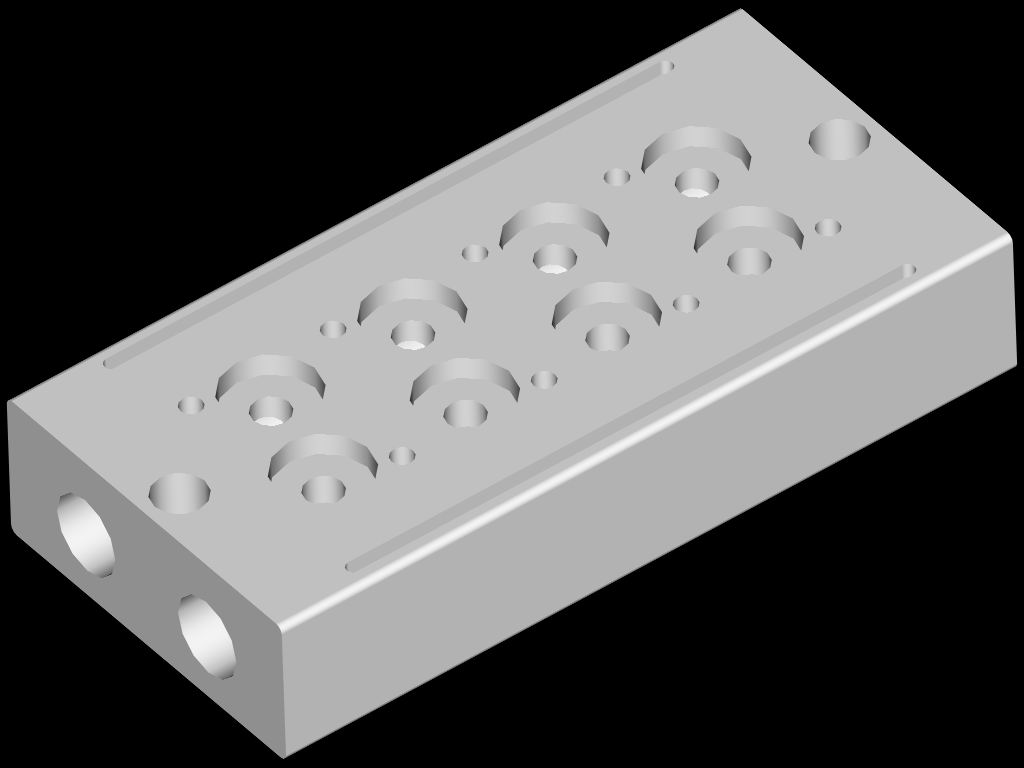

05.014.2

4

103

93

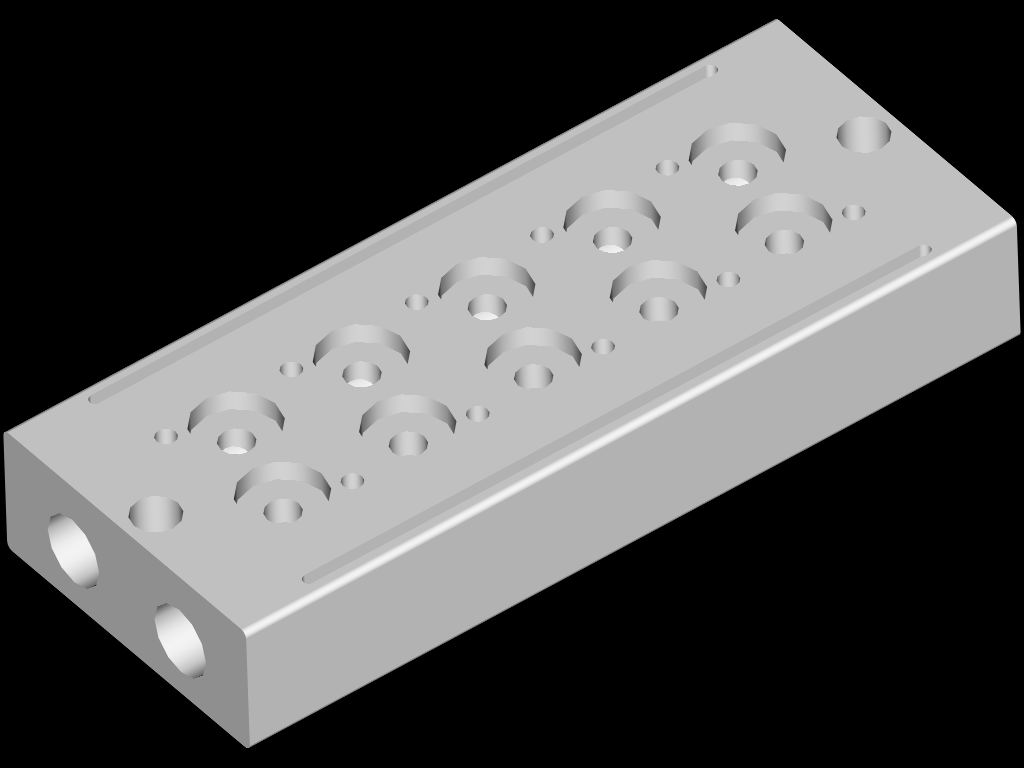

05.015.2

5

123

113

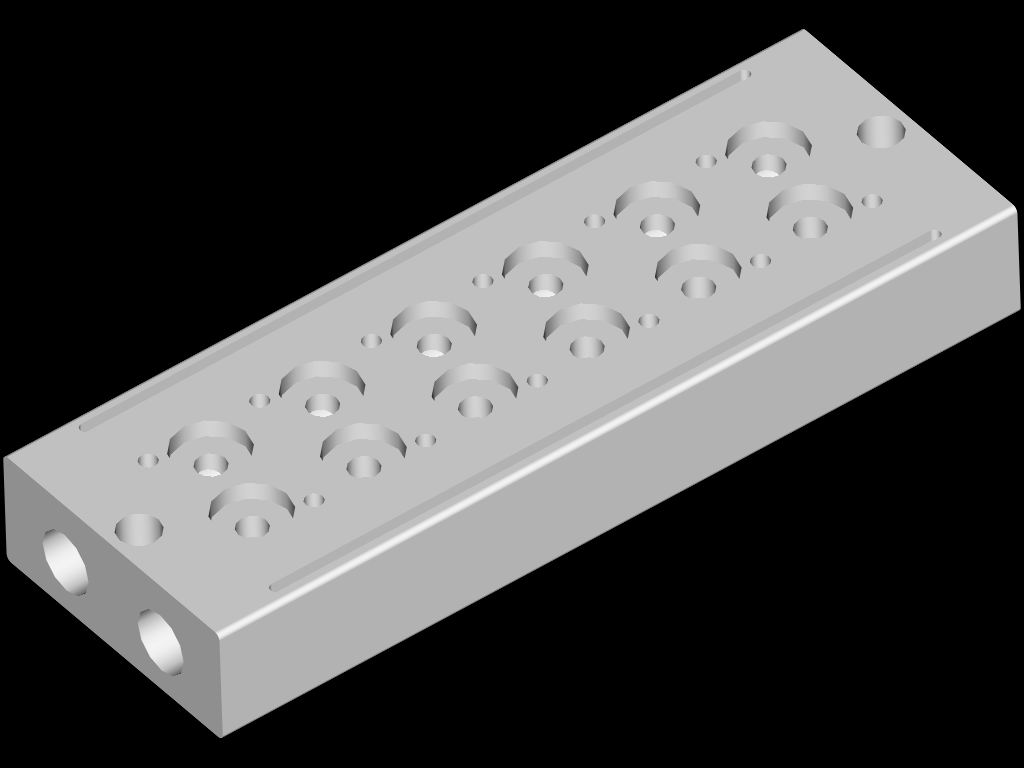

05.016.2

6

143

133

05.017.2

7

163

153

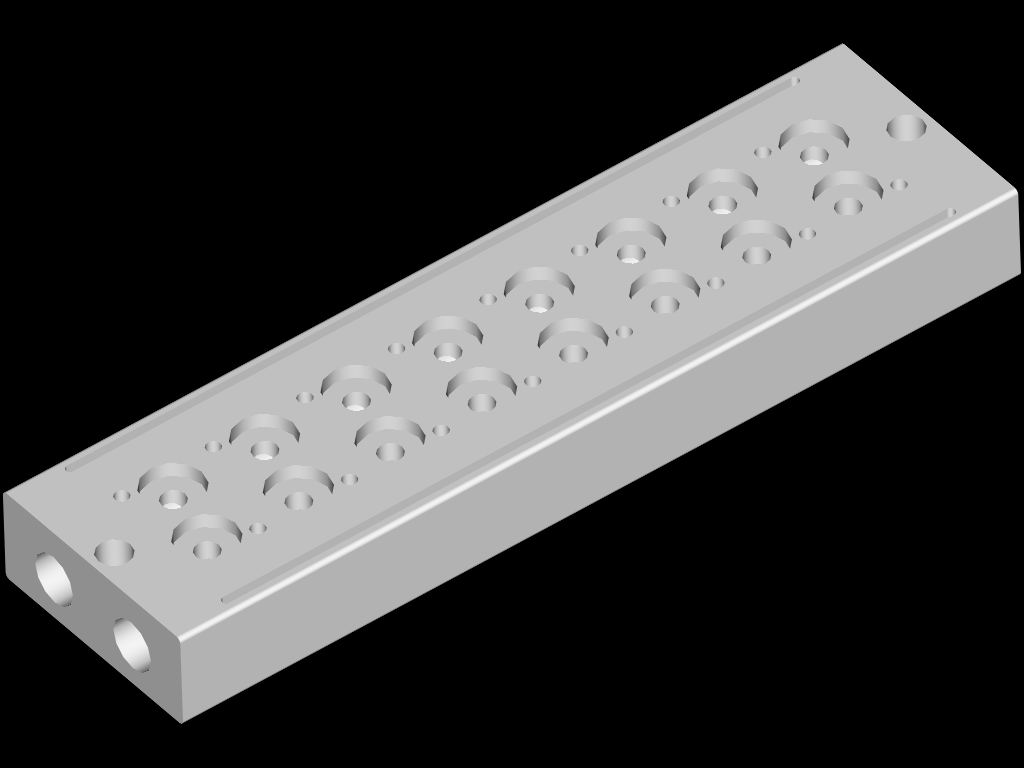

05.018.2

8

183

173

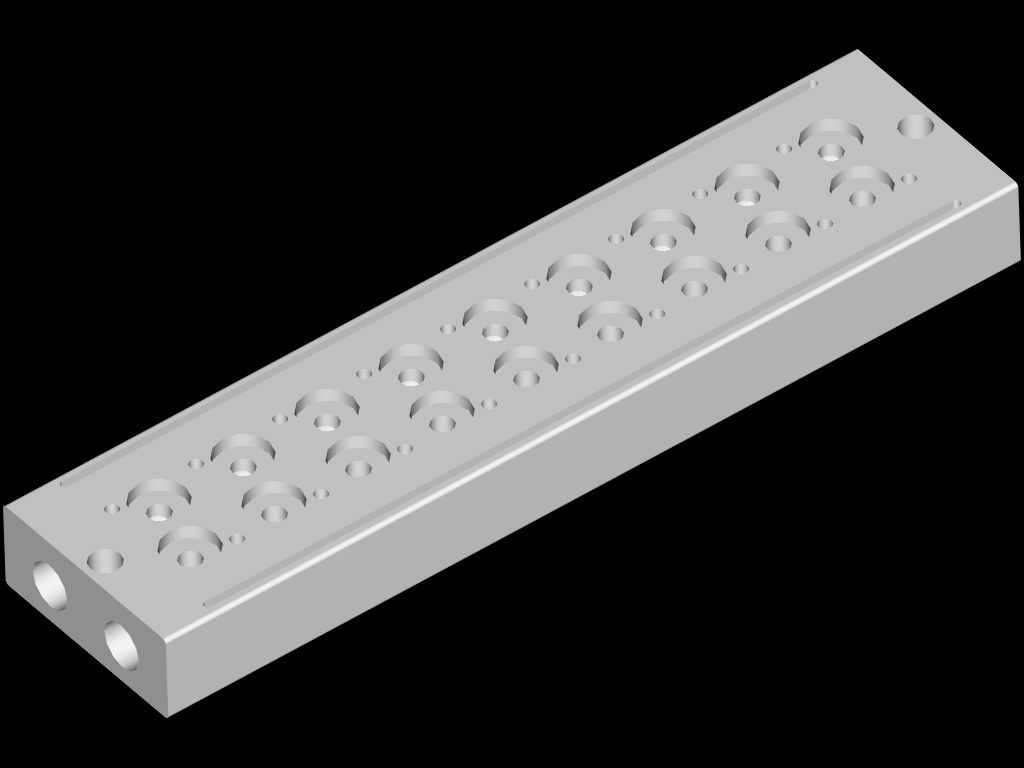

05.019.2

9

203

193

05.020.2

10

223

213

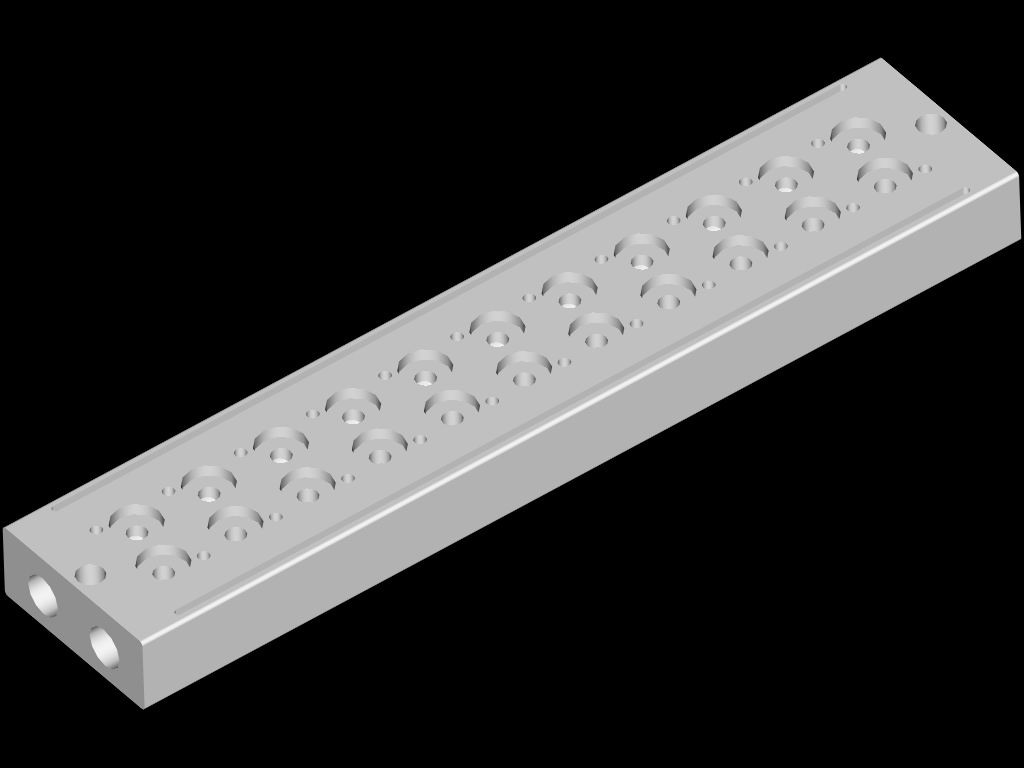

05.039.2

11

243

233

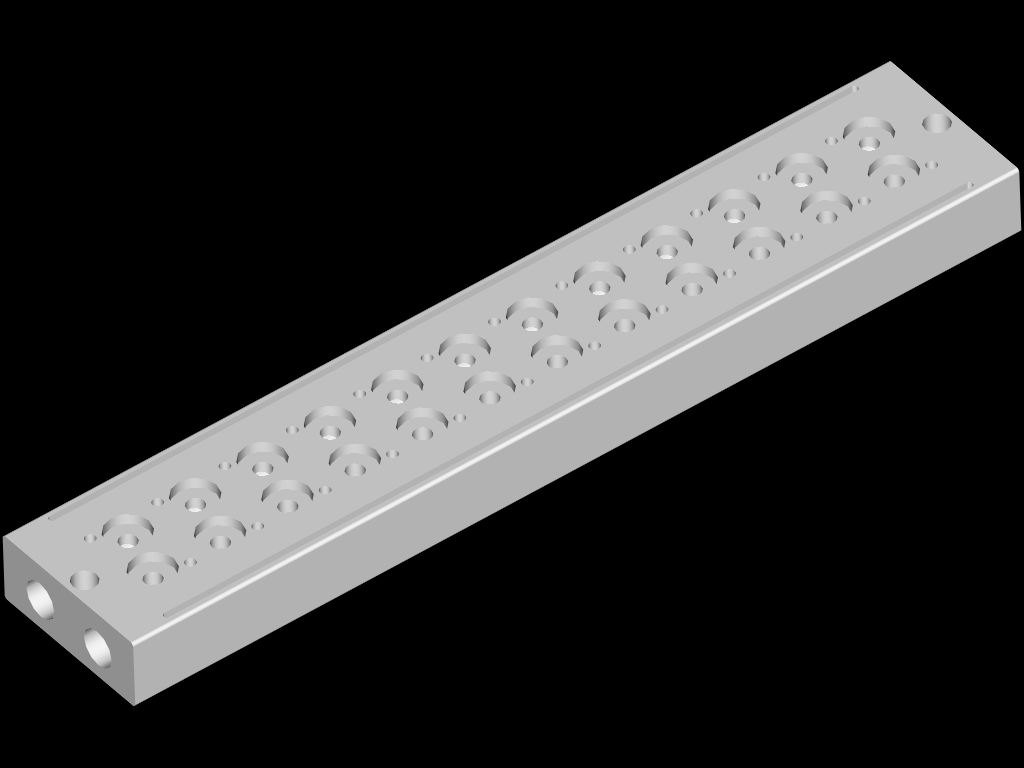

05.036.2

12

263

253

Each manifold is sold with all necessary pieces for installation.
Unused stations can be closed with a blanking plate.
