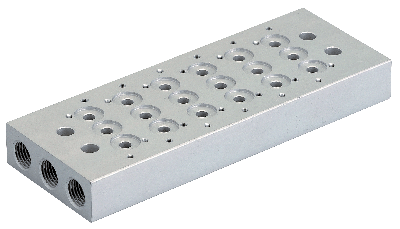

AZ Pneumatica. Manifolds for 18 mm in-line valves

Manifolds
for 18 mm in-line valves - 5/2

manifolds 5/2 - 18 mm 1/8

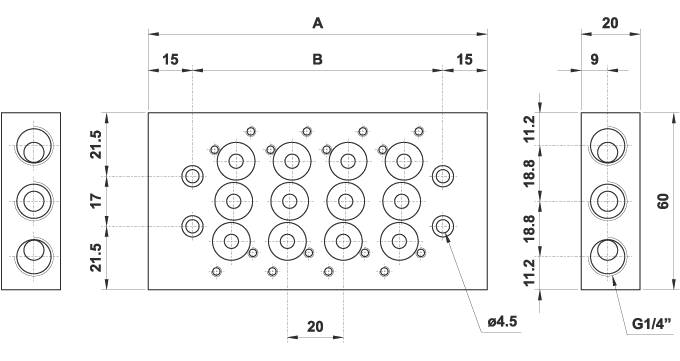

model no. stations A B
AUTOCAD ver 14. DWG
JPG
ACIS - SAT
STEP

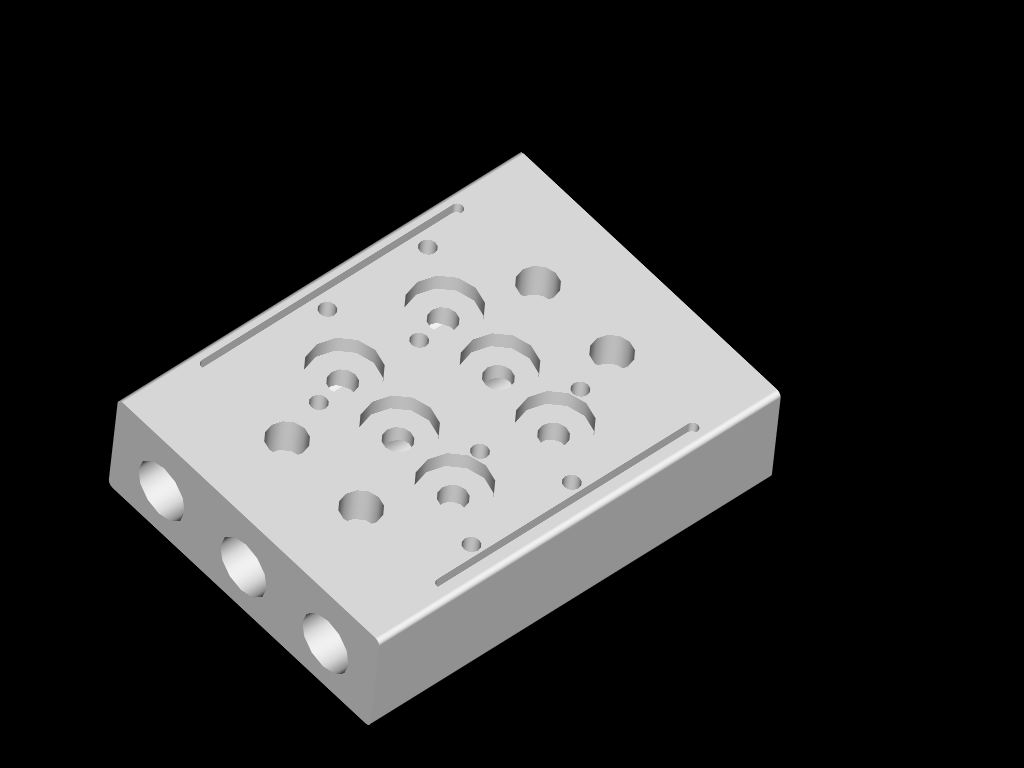

05.002.2

2

80

50

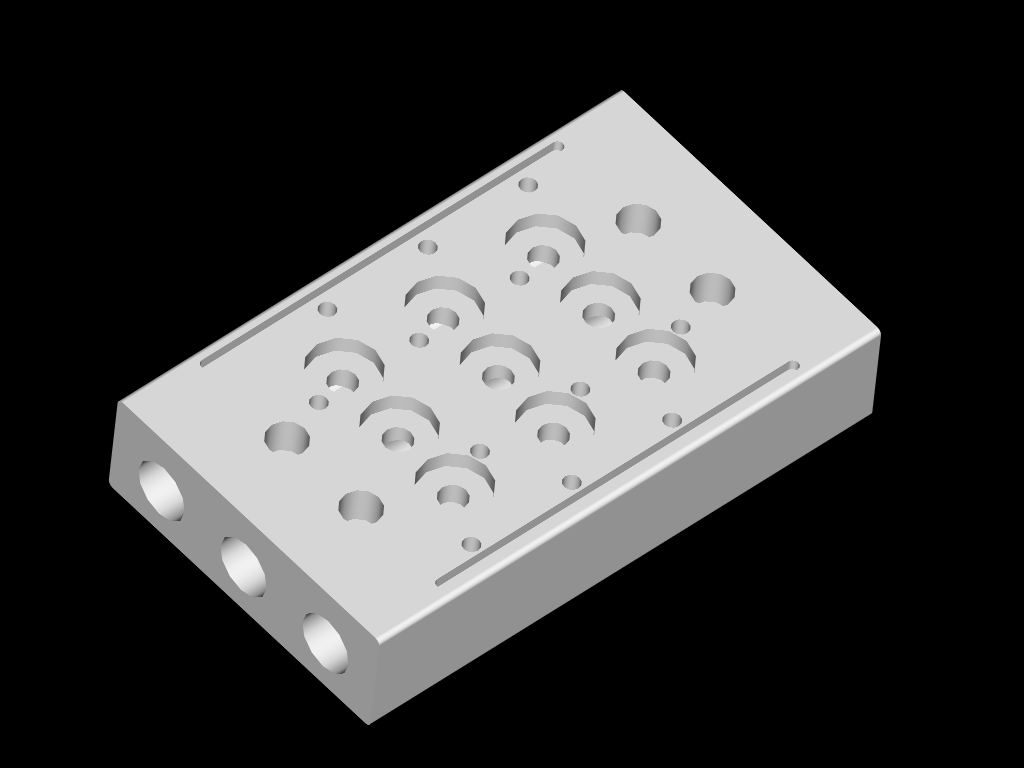

05.003.2

3

100

70

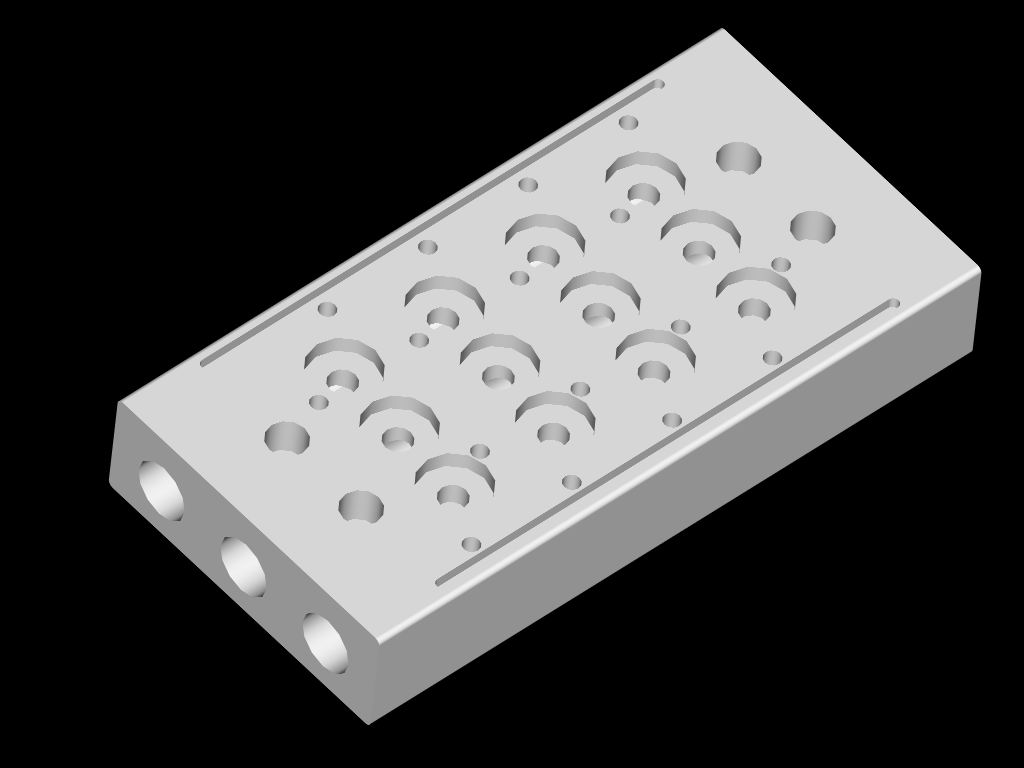

05.004.2

4

120

90

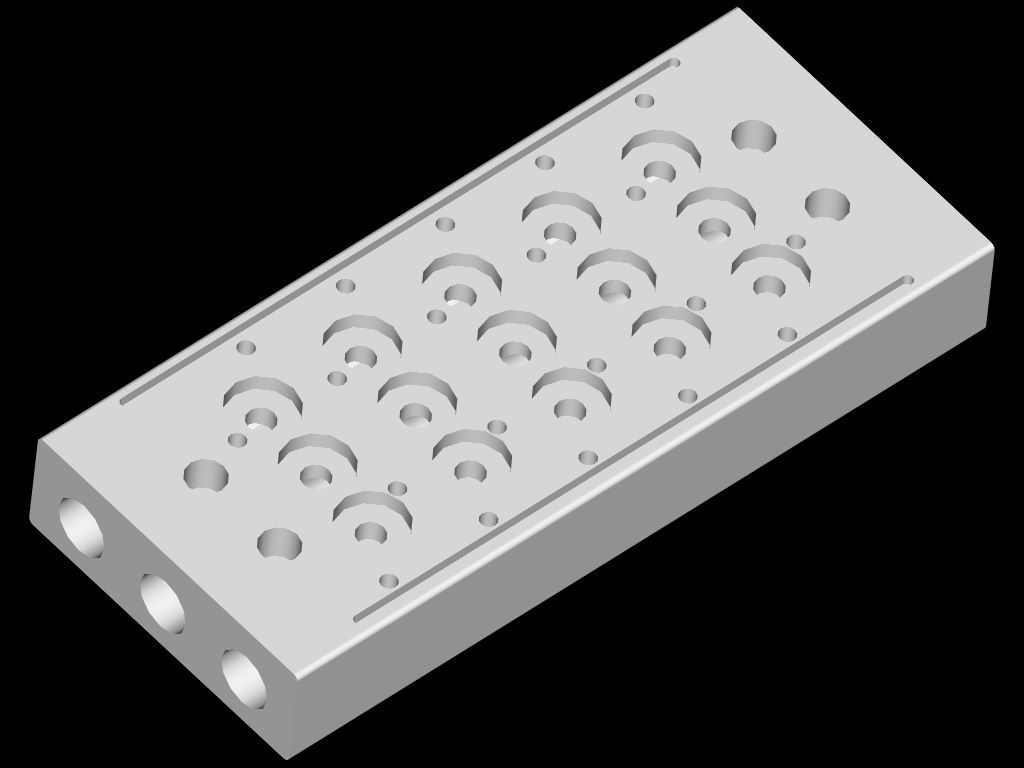

05.005.2

5

140

110

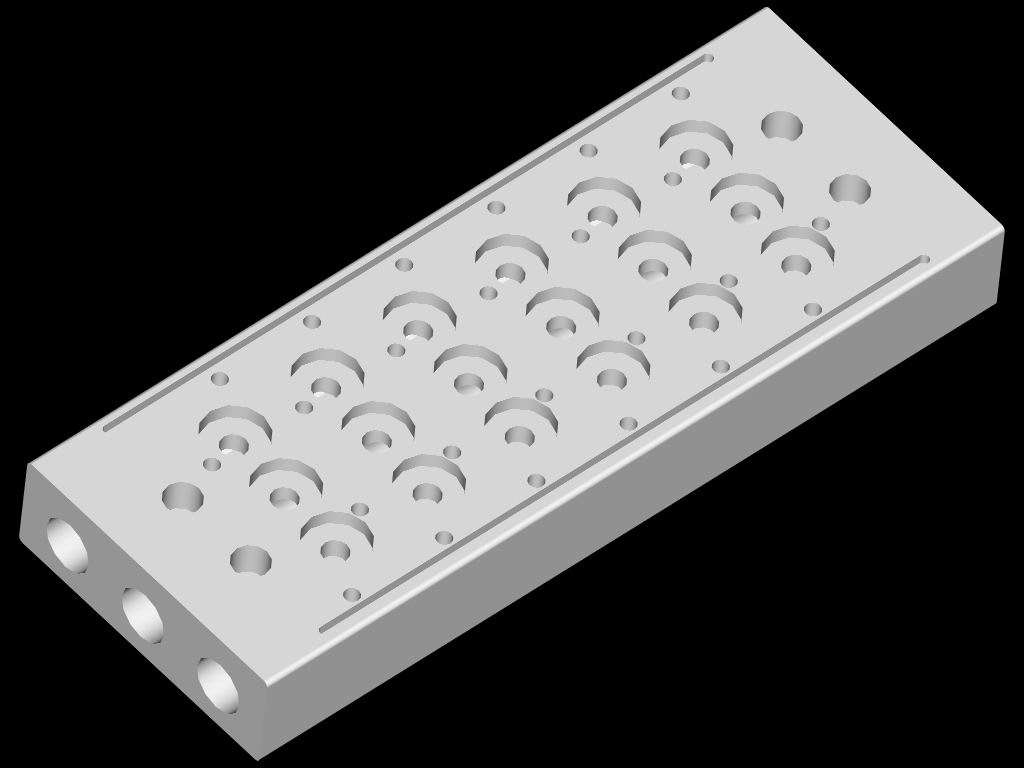

05.006.2

6

160

130

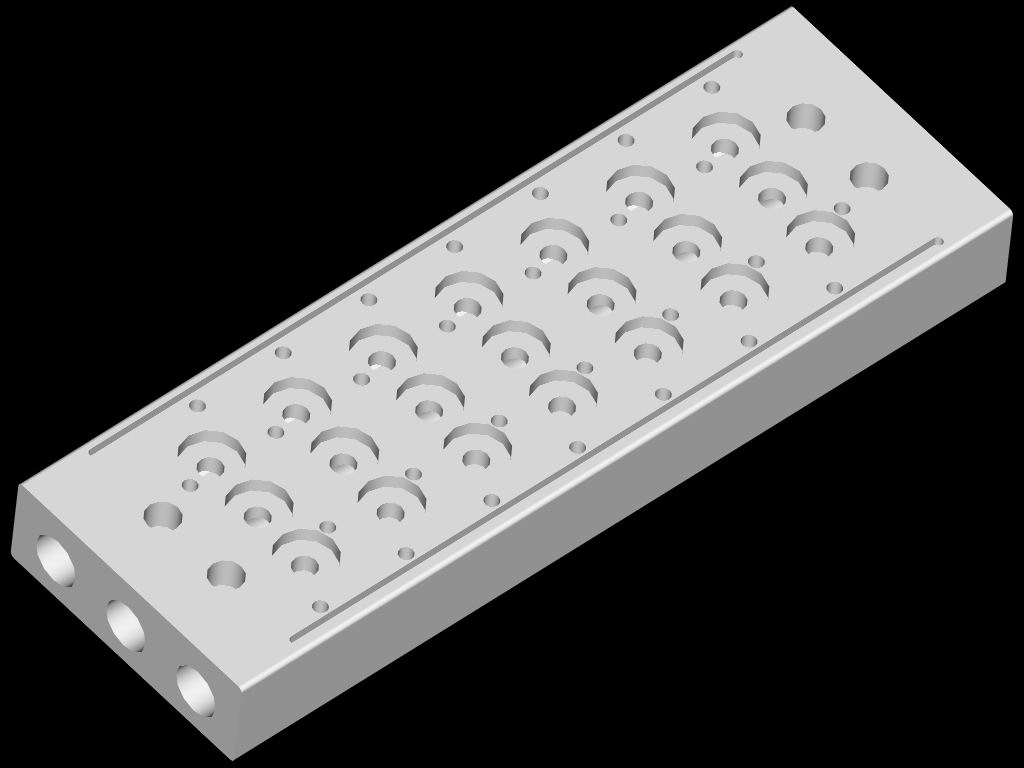

05.007.2

7

180

150

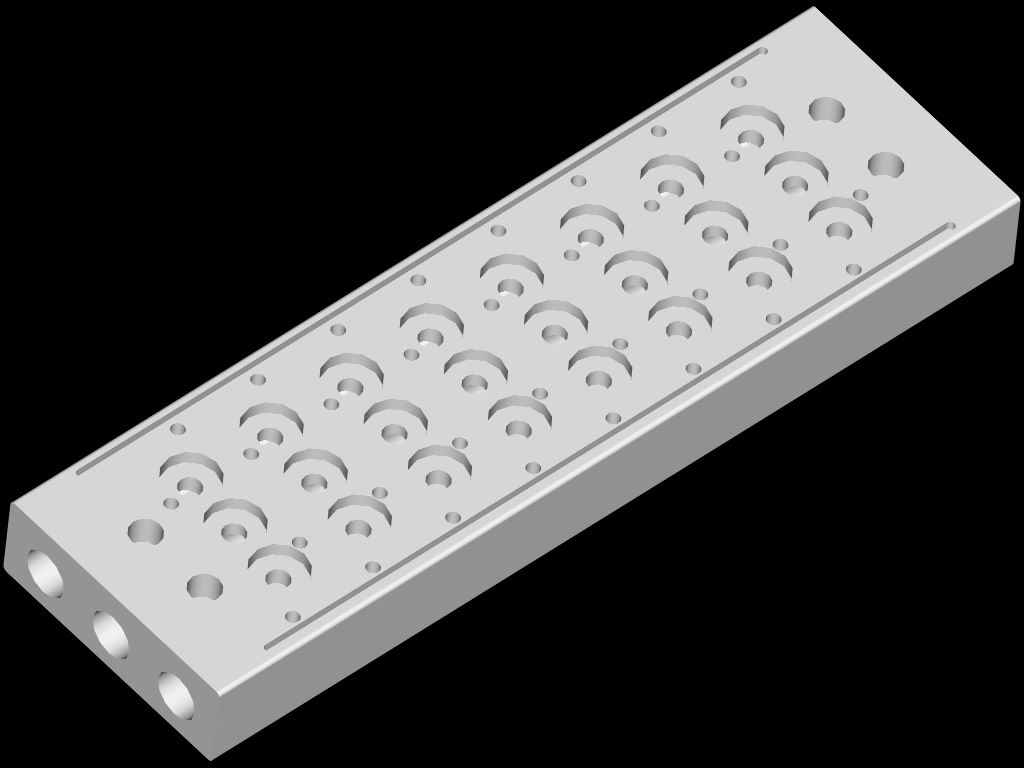

05.008.2

8

200

170

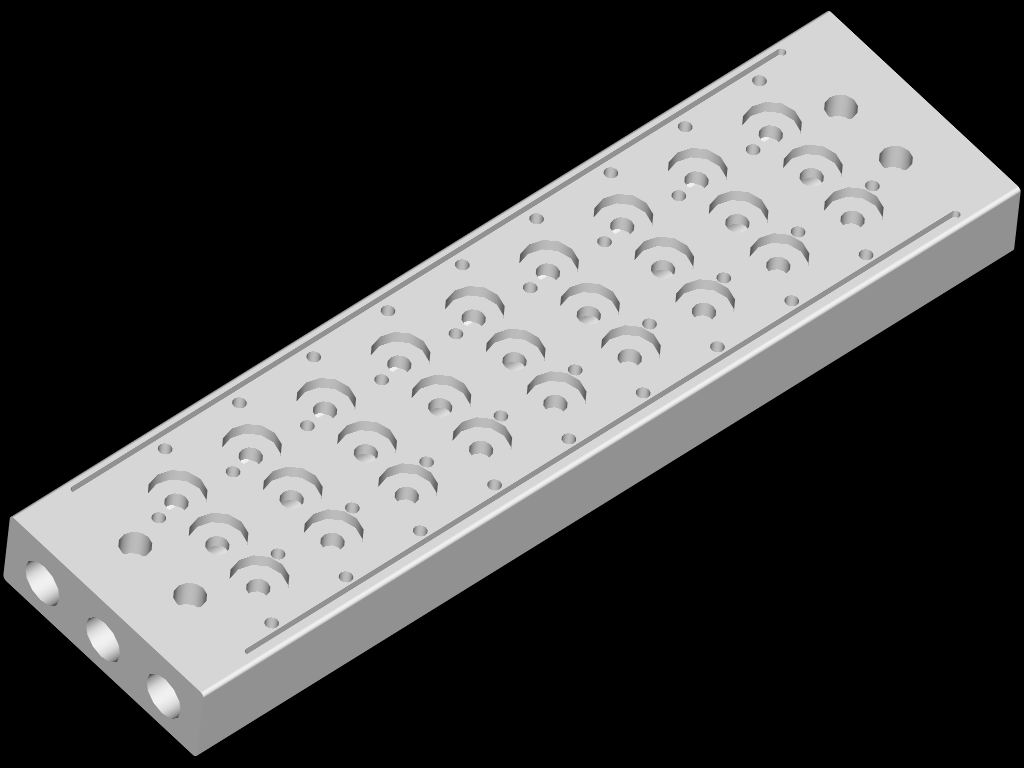

05.009.2

9

220

190

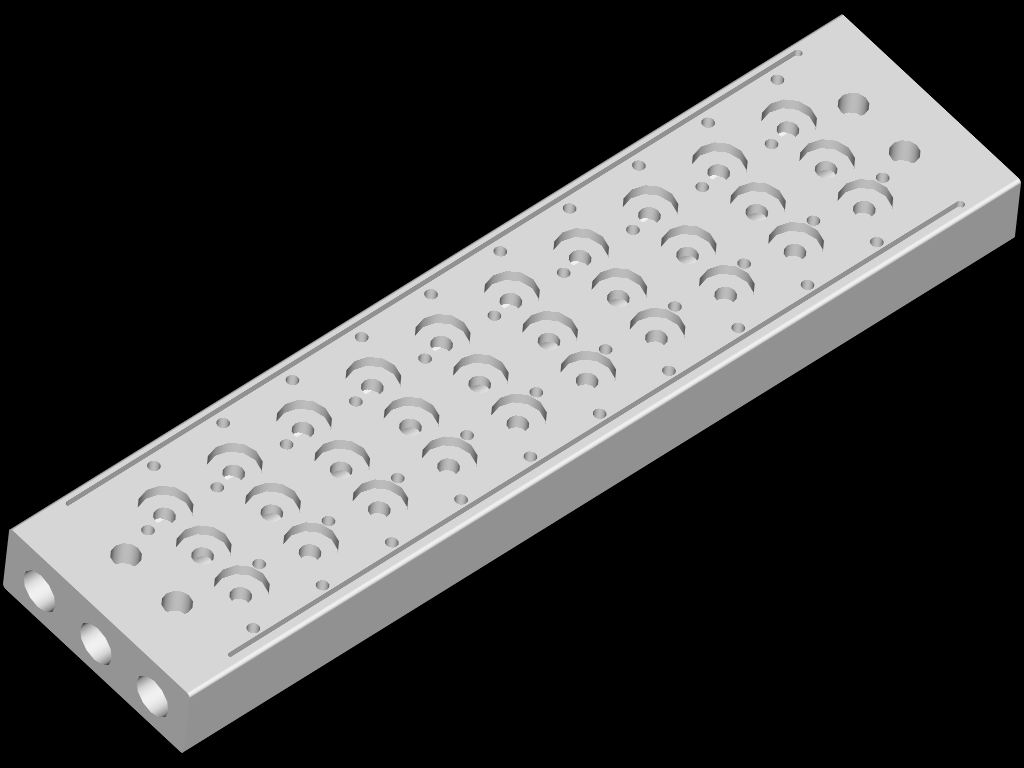

05.010.2

10

240

210

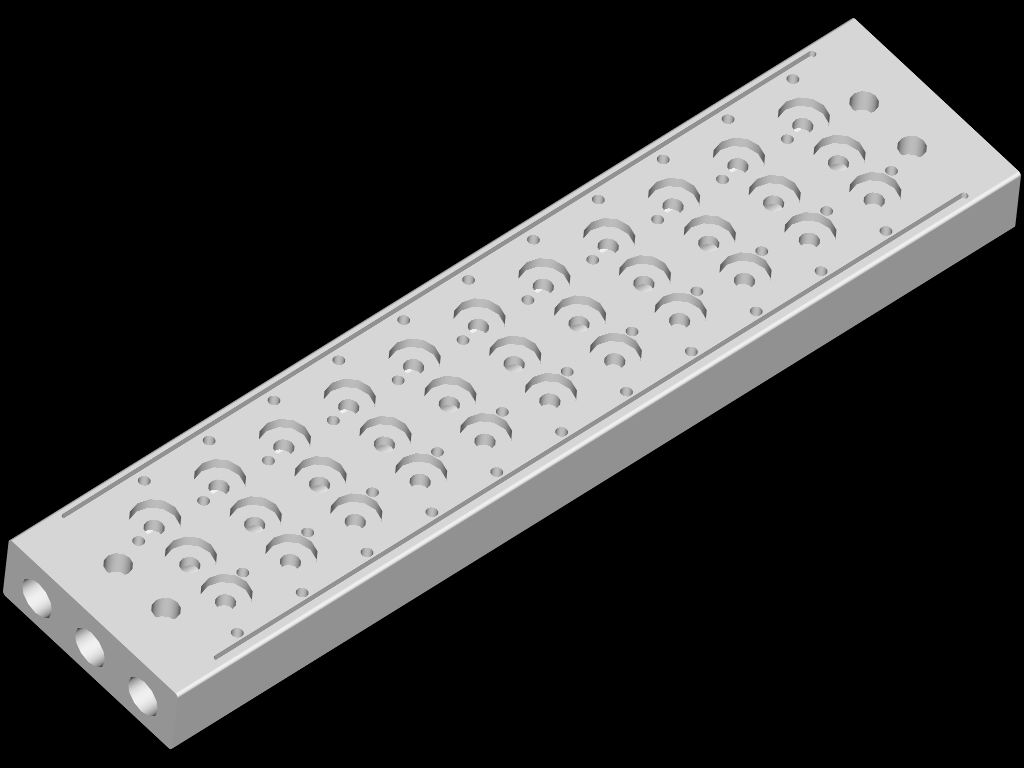

05.037.2

11

260

230

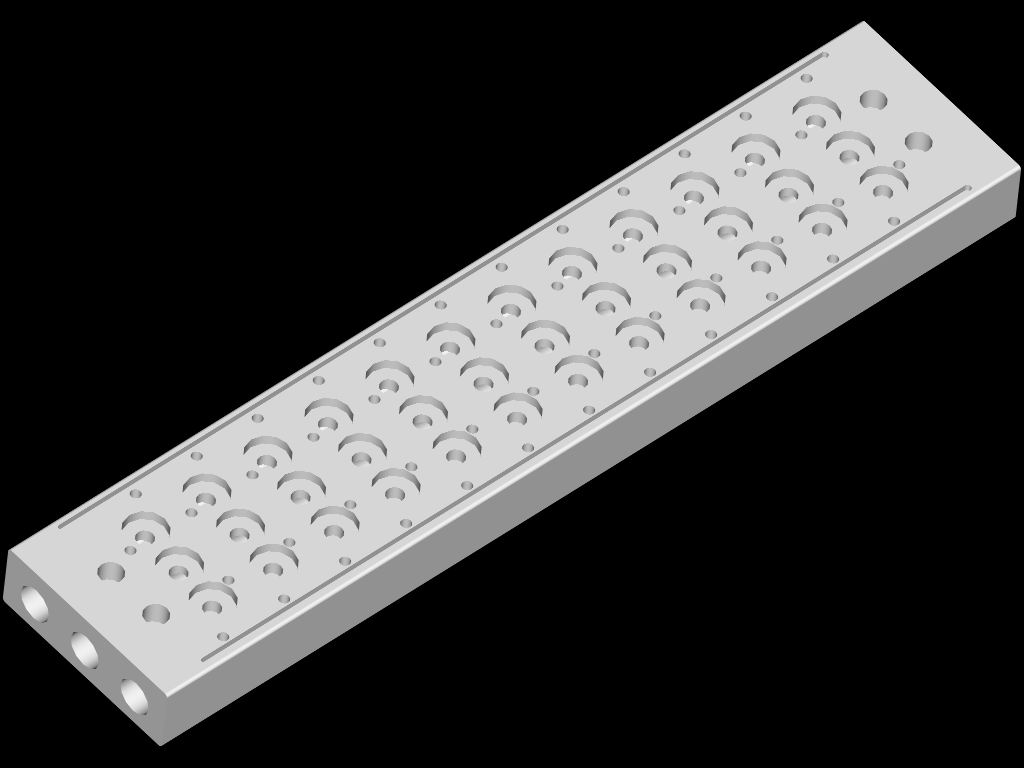

05.001.2

12

280

250

Each manifold is sold with all necessary pieces for installation.
On these manifolds for five way valves it is possible to install three way valves using the adaptor DD751. Unused stations can be closed with a blanking plate.
